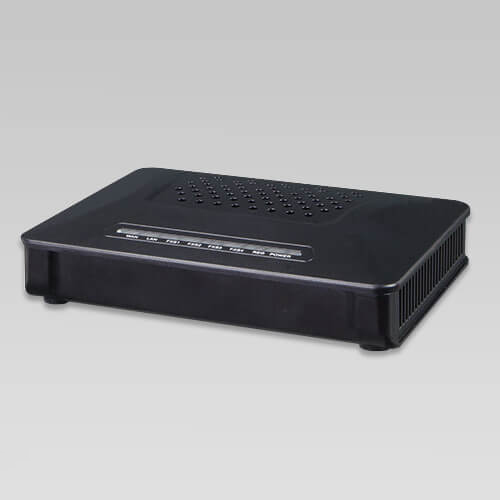

Planet - VGW-410FS - 4-Port SIP VoIP Gateway
Planet - VGW-410FS - 4-Port SIP VoIP Gateway
Part number:
VGW-410FS
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

SIP VoIP Gateway

High Quality yet Affordable for All Businesses

The VGW-410FS, enterprise-class 4-port SIP VoIP Gateway, provides added flexibility during migration to Unified Communications by supporting the traditional analog devices. Such devices include analog phones, speakerphones, fax machines, modems, voicemail systems.

Enhanced, Full-Featured Business Gateway

The VGW-410FS, 4-port FXS VoIP Gateway, is a fully SIP standard compliant residential gateway. It provides a total solution for integrating a voice-data network, with built-in PPPoE/DHCP/DDNS clients, up to 4 concurrent connections. Voice communications can be established from anywhere around the world, not only provides quality voice communications, but also offers secure, reliable Internet sharing capabilities for daily voice and Internet communications.

Distributed VoIP Network Infrastructure

PLANET’s VGW series is easy to use for all types of businesses. The VGW-410FS offers quality voice communications and real-time fax data over IP networks and doesn’t require extra resources to deploy a VoIP network. With the optimized SIP architecture, PLANET’s VGW-410FS is the ideal choice for P2P/SIP proxy (IP PBX) voice chat, and ITSP cost-saving solution.

The VGW-410FS enterprise-class 4-port SIP VoIP Gateway provides added flexibility during migration to Unified Communications by supporting the traditional analog devices.



Features:

  • Ports: 1 WAN, 1 LAN, 4 FXS
  • Power: 12V DC, 1.0A
  • Operating Temperature: -10 to 50°C
  • TAA Compliant
Hardware
WAN1 x 10/100BASE-TX RJ45 port
LAN1 x 10/100BASE-TX RJ45 port
Voice4 x RJ11 connection (4 x Foreign eXchange Station)
Telephone wire transmission distance< 1000 m
Connectors
  • Two 10/100BASE-TX RJ45 Ethernet ports
  • Four RJ11 ports
  • DC power jack
Weight205g
Dimensions (W x D x H)160 x 115 x 30 mm
Power Requirements12V DC, 1.0A
Protocols and Standard
Data Networking
  • TCP/IP, UDP (RFC 793/768), RTP/RTCP (RFC 1889/1890), ARP, FTP/TFTP, HTTP, HTTPS, Telnet, ICMP, NTP/SNTP, DHCP Server/Client
  • IPv4
  • Static IP
  • PPPoE Client
  • DHCP Server, LAN port
  • DHCP Client (RFC 2131), WAN port, NAT Server (RFC 1631)
  • Firewall
  • SIP DDoS attack prevention
  • VLAN
  • QoS: DSCP, TOS (RFC 791, 1394)
VoIP
  • IETF SIP RFC3261 compliance
  • Primary and secondary sip server to automatic switch
  • Voice coding: ITU-T G.711 A-law, G.711 ?-law, G.723.1(5.3K/6.3Kbit/s), G.729 and auto-negotiate with call agent
  • Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length
  • 10 ~ 180ms adjustable delay jitter
  • DSP gain can be adjusted, -5dB ~ + 10dB
  • In-band / out of band DTMF (RFC4733, RFC2833 / SIP INFO)
  • Integrate heartbeat function
  • Supports active and standby call agent
  • Supports VGW series expanding (One master and two slave)
  • Support local polyphonic ringtone
  • Supports call routing and Digit map
  • Supports caller ID, DTMF and FSK
  • Supports Dial route IP, calls between two VGWs is supported without a SIP server
  • Supports multi-party conferencing, call forward, call waiting, hot-line call, DND (Do Not Disturb) and alarm clock
  • Supports high/low speed fax/modem. T.30 Transparent, T.30 Bypass, and T.38 fax
Management
  • Multilingual Web User Interface
  • 3 Levels of User Access Right with password protection with a different Web Language (Administrator, Supervisor and User)
  • Configuration Backup/Restore
  • Reset to factory Default
Environments
Operating Temperature-10 ~ 50 degrees C
Operating Humidity10%~90% relative humidity, non-condensing
EmissionCE, FCC
Name
Description
Size
Downloads
File
Data Sheet
0.8mb
File
Quick Guide
0.6mb
