Planet - WBS-502N - 5GHz 802.11n 300Mbps Outdoor Wireless CPE
Part number:
WBS-502N
Price:
Industrial Wireless LAN and LAN
- Compliant with the IEEE 802.11a/n wireless technology
- 2T2R architecture with data rate of up to 300Mbps
- Equipped with 10/100Mbps RJ45 port, auto MDI/MDI-X supported
Fixed-network Broadband Router
- Supported WAN connection types: DHCP, Static IP, PPPoE
- Supports Port Forwarding and DMZ for various networking applications
- Supports DHCP server in Gateway/WISP mode
RF Interface Characteristics
- Built-in 15dBi dual-polarization antenna
- High output power with multiply-adjustable transmit power control
Outdoor Environmental Characteristics
- IP55 rating
- IEEE 802.3 at Power over Ethernet design
- Operating temperature: -20~70 degrees C
Multiple Operation Modes and Wireless Features
- Multiple operation modes: AP, Gateway, Repeater, WDS, WISP
- WMM (Wi-Fi multimedia) provides higher priority to multimedia transmitting over wireless
- Coverage threshold to limit the weak signal of clients occupying session
- Real-time Wi-Fi channel analysis chart and client limit control for better performance
Secure Network Connection
- Full encryption supported: WPA/WPA2, WPA-PSK/WPA2-PSK and 802.1X RADIUS authentication
- Supports 802.1Q VLAN and SSID-to-VLAN mapping
- Supports IP/Port/MAC address/URL filtering, DoS, SPI Firewall
- Supports DMZ and Port Forwarding
- Bandwidth control per IP address to increase network stability
Easy Deployment and Management
- 3 simple steps to establish WDS connection easily
- Supports PLANET AP Controllers in AP mode
- Easy discovery by PLANET Smart Discovery
- Self-healing mechanism through system auto reboot setting
- System status monitoring through remote Syslog Server
- Supports PLANET DDNS/Easy DDNS
| Hardware | |
|---|---|
| Standard Support | IEEE 802.11a/n IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3x flow control |
| Dimensions (W x D x H) | 87 x 38 x 260mm |
| Weight | 405g |
| Power Requirements | 48V DC IN,0.5A, IEEE 802.3 at PoE+ or 12V DC IN, 1.0A from DC Jack |
| Power Consumption (max.) | < 13W |

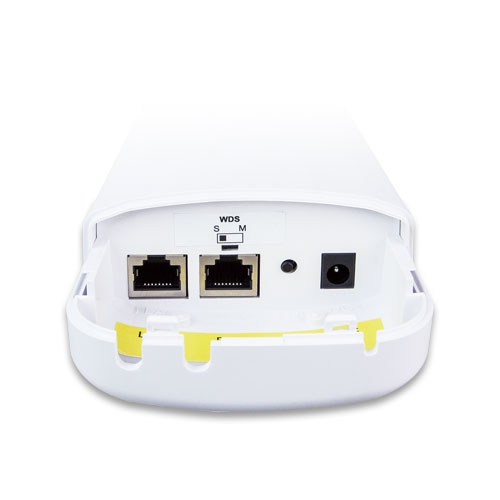

| Interface | Wireless IEEE 802.11a/n, 2T2R PoE: 1 x 10/100BASE-TX, auto-MDI/MDIX, 802.3af/at PoE In LAN: 1x 10/100BASE-TX, auto-MDI/MDIX |
| Button | Reset/Pair button, WDS Switch |
| Antenna | Built-in 15dBi directional antenna with dual polarization Horizontal: 70 degrees Vertical: 15 degrees |
| Data Rate | IEEE 802.11a: up to 54Mbps IEEE 802.11n (20MHz): up to 150Mbps IEEE 802.11n (40MHz): up to 300Mbps |
| Media Access Control | CSMA/CA |
| Modulation | 802.11a/n: OFDM (BPSK/ QPSK/ 16QAM/ 64QAM) |
| Frequency Band | FCC: 5.180~5.240GHz, 5.745~5.825GHz ETSI: 5.180~5.700GHz |
| Operating Channels | FCC: 36, 40, 44, 48, 149, 153, 157, 161, 165 (9 channels) ETSI: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 132, 136, 140 (16 channels) 5GHz channel list will vary in different countries according to their regulations. |
| Max. Transmit Power (dBm) | FCC: up to 27 ± 2dBm ETSI: < 20dBm (EIRP) |
| Receiver Sensitivity (dBm) | 802.11a 6Mbps: -92dBm 54Mbps: -75dBm 802.11n HT20 MCS0/MCS8: -91dBm MCS7/MCS15: -72dBm 802.11n HT40 MCS0/MCS8: -88dBm MCS7/MCS15: -70dBm |
| Environment & Certification | |
| Operating Temperature | -20 ~ 70 degrees C |
| Operating Humidity | 5~ 90% (non-condensing) |
| IP Level | IP55 |
| ESD Protection | ± 8kV air-gap discharge ± 4kV contact discharge |
| Surge Protection | ± 4kV |
| Regulatory | CE, RoHS |
| Software | |
| LAN | Static IP Supports IP-MAC binding |
| WAN Type (GW/WISP mode) | ■ Static IP ■ Dynamic IP ■ PPPoE |
| Wireless Modes | ■ Access Point ■ Gateway ■ Repeater ■ WDS (AP/Bridge/Station) ■ WISP |
| Channel Width | 20MHz, 40MHz |
| Encryption Type | WPA, WPA-PSK, WPA2, WPA2-PSK, 802.1X |
| Wireless Security | Enable/Disable SSID Broadcast Wireless MAC address filtering User Isolation |
| Max. SSIDs | 4 |
| Max. Wireless Clients | 64 per radio (50 are suggested, depending on usage) |
| Max. WDS Peers | 4 (Up to 3 peers by using “One-click WDS”) |
| Wireless QoS | Supports Wi-Fi Multimedia (WMM) |
| Wireless Advanced | Auto Channel Selection 5-level Transmit Power Control (100%, 75%, 50%, 25%, 12.5%) Client Limit Control, Coverage Threshold Distance control (Auto Ack Timeout) Wi-Fi channel analysis chart Fast Roaming |
| Status Monitoring | Device status, Wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server |
| VLAN | IEEE 802.1Q VLAN (VID: 3~4094) SSID-to-VLAN mapping up to 4 SSIDs |
| Self-healing | Supports auto reboot settings per day/hour |
| Management | Remote management through PLANET DDNS/Easy DDNS Configuration backup and restore Supports UPnP Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN Pass-through SNMP v1/v2c/v3 support, MIB I/II, Private MIB |
| Central Management | Applicable controllers: WAPC-500, WAPC-1000 and Smart AP Control (SAPC) |
