Super High Speed and Wide Coverage

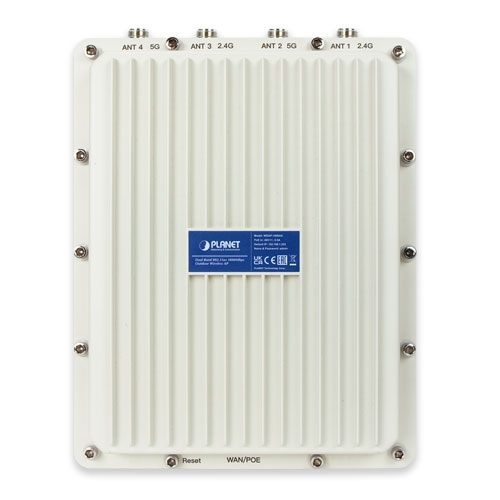

PLANET WDAP-1800AX 1800Mbps Dual Band 802.11ax Wireless AP, supporting MU-MIMO, Wave 2.0, OFDMA, Seamless Roaming, Beamforming and BSS Coloring technology, provides a maximum wireless speed of 1200Mbps in the 5GHz band and 600Mbps in the 2.4GHz band. It comes with the IP67-rated aluminum case protected from contact with harmful dust and water. By connecting high-gain antenna through the flexible N-type connectors, the system integrator can easily assist customers in achieving various outdoor long-distance applications under rough weather in any harsh environment. The WDAP-1800AX also offers the 20KV surge protection for wire cable interface that can greatly improve the durability of the product.

Benefits of MU-MIMO, Wave 2, OFDMA, Seamless Roaming, Beamforming and BSS Coloring

The WDAP-1800AX can be installed in public areas such as hotspots, airports and conferences as OFDMA, a multi-user version of OFDM, enables the concurrent AP to communicate (uplink and downlink) with multiple clients by assigning subsets of subcarriers called resource units (RUs) to the individual clients. With MU-MIMO and Seamless Roaming technologies, it provides a better Wi-Fi user experience, reducing the likelihood of users turning off Wi-Fi and putting more load on the cellular network. Beamforming is to improve your Wi-Fi signal when you are far away from your router. The BSS color is a numerical identifier of the BSS. 802.11ax radios that are able to differentiate between BSSs using BSS color identifier when other radios transmit on the same channel.

OFDMA (Orthogonal Frequency Division Multiple Access) Benefits

• Helps transmit small and large packets together to reduce bandwidth burden and improve data transmission performance
• Transmitting data at the same time can effectively reduce the transmission delay for longer frame and low-speed transmission.
• Improves the overall traffic quality, and effectively uses bandwidth in an environment where multiple people use the Internet.
• Increases the number of devices that can be connected to the AP.
• Reduces the power consumption of the device by way of the use of low bandwidth.

Features:

Industrial Wireless LAN and LAN

• Compliant with the IEEE 802.11a/b/g/n/ac/ax wireless technology
• 802.11ax 2T2R architecture with data rate of up to 1800Mbps (600Mbps in 2.4GHz and 1200Mbps in 5GHz)

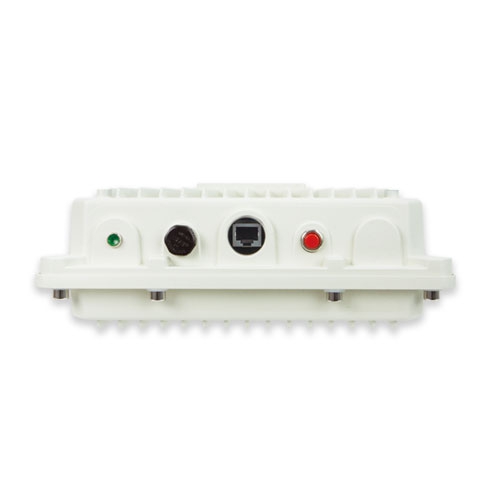

• Equipped with 10/100/1000Mbps RJ45 port with auto MDI/MDI-X supported
• One reset button and power LED indicator

RF Interface Characteristics

• Built-in four N-type antenna connectors
• High output power with multiply-adjustable transmit power control

Outdoor Environmental Characteristics

• IP67 rating, IEEE 802.3at PoE design
• Rugged protection with aluminum extrusion case and ground terminal
• 20KV surge protection for wire cable interface
• Operating temperature: -40~70 degrees C

Multiple Operation Modes and Wireless Features

• Multiple operation modes: AP, gateway and repeater
• Supports OFDMA (orthogonal frequency division multiple access)
• Supports MU-MIMO (multi-user multiple-input multiple-output), Wave 2.0, Beamforming and BSS Coloring
• WMM (Wi-Fi multimedia) provides higher priority to multimedia transmitting over wireless
• Coverage threshold to limit the weak signal of clients occupying session
• Real-time Wi-Fi channel analysis chart and client limit control for better performance
• Support Terminal Seamless Roaming with 802.11k, 802.11v, and 802.11r

Secure Network Connection

• Full encryption supported: WPA3 Personal, WPA2/WPA3 Personal, WPA2 Personal (AES) ,WPA2 Personal (TKIP),WPA2 Personal (TKIP+AES),WPA/WPA2 Personal (AES) ,WPA/WPA2 Personal (TKIP) , WPA/WPA2 Personal (TKIP+AES) , WPA2 Enterprise, WPA/WPA2 Enterprise
• Supports 802.1Q port VLAN Supports IP/Port/MAC address/URL filtering, DoS, SPI firewall
• Supports DMZ and port forwarding
• Bandwidth control per IP address to increase network stability

Easy Deployment and Management

• Supports PLANET AP Controllers in AP mode
• Easy discovery by PLANET Smart Discovery
• Self-healing mechanism through system auto reboot setting
• System status monitoring through remote syslog server
• Gateway mode supports PLANET DDNS/Easy DDNS, Captive Portal, RADIUS Server/Client
