Planet - XGS3-S44S4X - Chassis Management and Standard Modules
Part number:
XGS3-S44S4X
Price:
PLANET XGS3-42000R Core Layer Routing Switch is specially designed for large network applications such as enterprises, campuses, communities, ISPs and data center networks where flexible configuration, large capacity, high density, high reliability and advanced traffic management are required. The XGS3-42000R is the High-density Chassis Ethernet Switch built with 4 module slots and redundant power supply. It provides great porting flexibility for network deployment by offering various combinable management modules and standard interfaces. For instance, one management module can be collaborated with three standard modules, or two management modules work with two standard modules to mutually perform system backup. Within the 6U height, single chassis, the maximum configuration can be:
- 160 10/100/1000BASE-T Copper Slots
- 156 100/1000BASE-SX/LX SFP Fiber Slots
- 60 10G SFP+ Fiber Slots
- 6 40G QSFP+ Fiber Slots
| Chassis Slots | |
| Total Number of Slots | 4 (2 management modules + 2 standard modules ) or (1 management module + 3 standard modules) |
| Max. Management Module | 2 (Slot 1, Slot 2) |
| Max. Standard Module | 3 (Slots 2, 3, 4) |
| Management Module Redundancy | Yes |
| Number of Power Supply Bays | 2 |
| Number of Fan Trays | 1, hot-pluggable |
| Total Port Capacity | |
| Max. 40G QSFP+ Slots | 6 |
| Max. 10G SFP+ Slots | 60 |
| Max. 10/100/1000BASE-T Slots | 160 |
| Max. 1000BASE-SX/LX SFP Slots | 156 |
| Modules | |
| XGS3-M16C8S | 24-port Gigabit (16-port TP/SFP Combo + 8-port 100/1000X SFP)/MGMT Module |
| XGS3-S20X2Q | 20-port 10G SFP+ + 2-port 40G QSFP+ Switch Module/Standard Module |

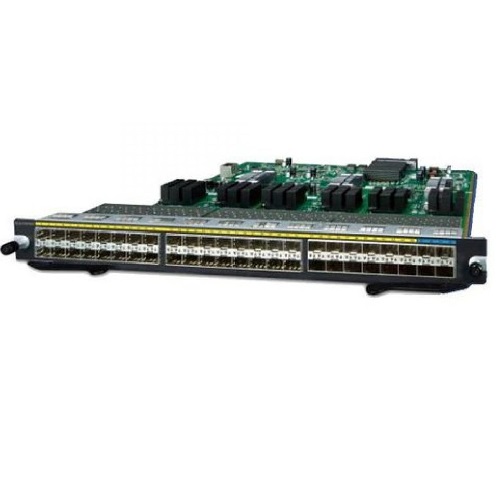

| XGS3-S44S4X | 44-port 100/1000BASE-X SFP + 4-port 10G SFP+ Switch Module/Standard Module |
| XGS3-S16C8S4X | 24-port Gigabit (16-port TP/SFP combo + 8-port 100/1000X SFP) + 4-port 10G SFP+ Switch Module/Standard Module |
| XGS3-S48G | 48-port 10/100/1000BASE-T Switch Module/Standard Module |
| Performance | |
| Switch Processing Scheme | Store-and-Forward |
| MAC Table | 64K |
| VLAN Table | 4K |
| ACL Table | 16K max. |
| Routing Table | IPv4 Protocol: 128K max. IPv6 Protocol: 64K max. |
| Layer 3 Interface | 500 |
| Port Queues | 8 |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 9Kbytes |
| Hardware Specifications | |
| Dimensions (W x D x H) | 440 x 421 x 266 mm |
| Relative Humidity | 10%～90% (non-condensing) |
| Operating Temperature | 0°C～50°C |
| Power Input | AC: Input 100~240V, 50~60 Hz |
| Power Consumption | ≤500W |
| IPv4 Layer 3 Functions | |
| IP Routing Protocol | Static Route, RIPv1/v2, OSPFv2, BGP4 Policy-based Routing (PBR) LPM Routing (MD5 authentication) |
| Multicast Routing Protocol | IGMP v1/2/3, DVMRP, PIM-DM/SM, PIM-SSM |
| IPv4 Layer 3 Protocol | VRRP, ARP, ARP proxy |
| Routing Interface | Per VLAN |
| IPv6 Layer 3 Functions | |
| IP Routing Protocol | RIPng, OSPFv3, BGP4+ |
| Multicast Routing Protocol | PIM-SM/DM for IPv6 MLD for IPv6 MLDv1/v2 MLD snooping, 6 to 4 tunnels Multicast receive control Illegal multicast source detection |
| IPv6 Layer 3 Protocol | Configured tunnels , ISATAP, CIDR |
| Layer 2 Functions | |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Bandwidth control on each port Port loopback detection |
| VLAN | 802.1Q tagged-based VLAN, up to 4K VLAN groups Q-in-Q GVRP Private VLAN |
| Spanning Tree Protocol | STP, IEEE 802.1d (Spanning Tree Protocol) RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, Spanning Tree by VLAN) Root Guard BPDU Guard |
| Link Aggregation | Static trunk IEEE 802.3ad LACP 128 trunk groups with 8 ports per trunk |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching - Port number - 802.1p priority - DSCP/TOS field in IP Packet Policy-based DiffServ |
| Multicast | IGMP snooping v1/v2/v3 IGMP proxy IGMP querier mode MLD snooping v1/v2 |
| Access Control List | Supports standard and expanded ACL IP-based ACL/MAC-based ACL Time-based ACL ACL pool can be used for QoS classification Up to 1K entries |
| Security | Supports MAC+ port binding IPv4/IPv6 + MAC+ port binding IPv4/IPv6 + port binding Supports MAC filter ARP spoofing prevention ARP scanning prevention IP source guard |
| Authentication | IEEE 802.1x port-based network access control AAA Authentication: IPv4/IPv6 over RADIUS |
| SNMP MIBs | RFC-1213 MIB-II IF-MIB RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2674 Extended Bridge MIB RFC-2819 RMON MIB (Groups 1, 2, 3 and 9) RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2933 IGMP-STD-MIB RFC3411 SNMP-Frameworks-MIB IEEE802.1X PAE LLDP MAU-MIB |
| Management Functions | |
| System Configuration | Console; Telnet, SSH; Web Browser; SSL; SNMPv1, v2c and v3 |
| Management Interface | IPv4/IPv6 HTTP, SSL, SNMP, FTP/TFTP, NTP, SSH Telnet, CLI RADIUS, TACACS+ RMON (Groups 1,2,3,9) SNMP MTB and trap |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3ae 10Gigabit Ethernet IEEE 802.3ba 40Gigabit Etherent IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1d Spanning Tree protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 10 ~ 90% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
Name
Description
Size
Downloads
File
Datasheet
1.1mb
File
Quick Guide
0.7mb
