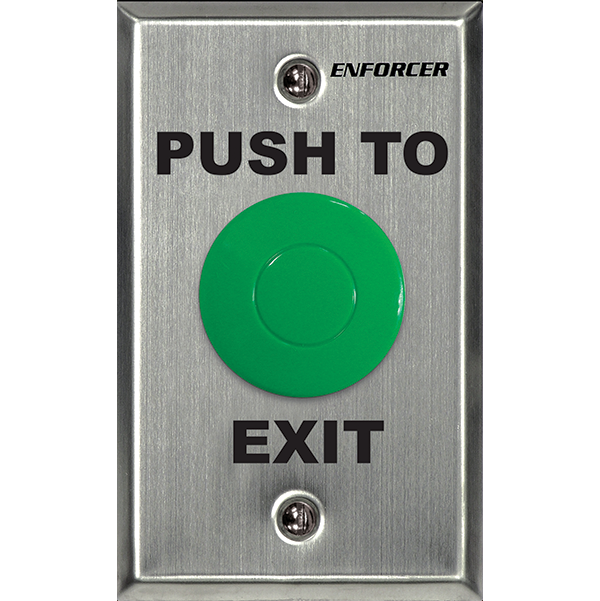

SECO-LARM - SD-7201GC-PEQ - Request-to-Exit Plate w Green Mushroom Cap Push Button, “Push To Exit,” SPDT
Part number:
SD-7201GC-PEQ
Price:
1½" Green mushroom-cap button. NO/NC contact, rated 5A@125VAC. Stainless-steel, single-gang plate. "PUSH TO EXIT" printed on plate.
The ENFORCER Weather-Resistant Mushroom-Cap RTE Plates are ideal for many outdoor access situations, with a 11/2″ (38mm) diameter mushroom-cap (green or red), single-gang faceplate and NO/NC contact rated 50A@24VAC.
Features:
- Stainless-steel face-plate
- “Push to Exit” silk-screened on plate
- Fits into standard single-gang box
- Green mushroom cap push button
- NO/NC contact rated 50A@24VAC
| Contact Rating | 50A@24VAC |
| Faceplate | Brushed stainless steel |
| Destructive attack level | Level I |
| Line security | Level I |
| Endurance level | Level I |
| Standby power | Level I |
| Built-in Timer | No |
| IP Rating | IP65 Weatherproof |
| Operating temperature | -40°~167° F (-40°~75° C) |
| Dimensions | 4-1/2″x2-3/4″x2-3/4″ (114x70x70 mm) |
| Weight | 3.7-oz (105g) |
