SECO-LARM - SD-8202GT-PEQ - RF Wireless Request-to-Exit Plate, Single-Gang, Green 2″ Square Button
Part number:
SD-8202GT-PEQ
Price:

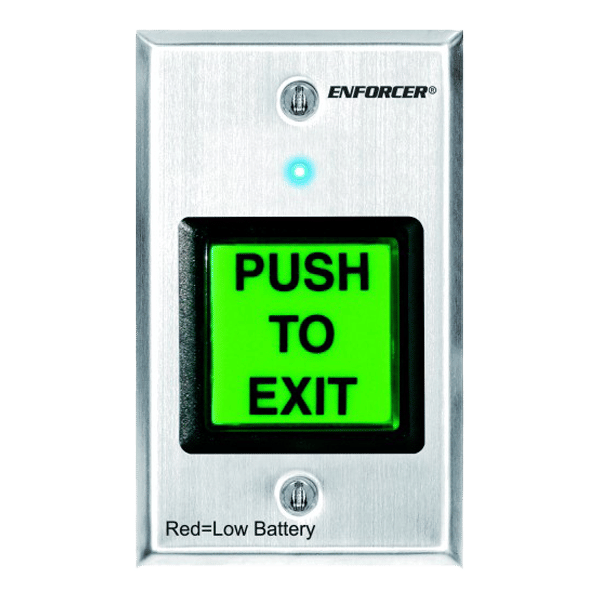

Illuminated green 2" square "PUSH TO EXIT" button with built-in RF transmitter. Use with SECO-LARM 315MHz receivers. 9VDC Battery (included) operation with LED to indicate low battery. Stainless-steel single-gang plate.



The ENFORCER® Wireless RF Request-to-Exit Plate is the ideal solution for difficult access control installations. The RTE plate allows egress from protected areas by easily connecting to an electric door-strike or electromagnetic lock without wires.



Features:

  • Built-in RF transmitter:
    Powered by 9VDC (battery included)
    Range up to 250ft (76m).* 315MHz
    Over 68 billion (6.8×1010) possible codes
  • Dual-colored LED to indicate transmission:
    Blue: Normal operation
    Red: Low battery
  • Stainless-steel single-gang or slimline plate
  • English “PUSH TO EXIT” and Spanish “Presione para Salir” messages included with SD-8202GT-PEQ and SD-8103GT-PEQ



Operating voltage9VDC
Operating Frequency315MHz
Battery LifeUp to four (4) years (60 uses per day)
Maximum range*250′ (76m)
Dimensions4-1/2″ x 2-3/4″ x 2-1/4″ (114x70x57 mm)
Weight8.1-oz (230g)
