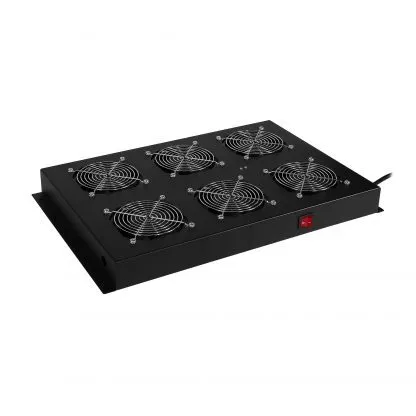

Cyber Power - CRA12001 - Roof-mounted Fan Panel, 6x 208/240Vac Fans, for 42" to 47" (1070mm-1200mm) Deep Enclosures, 480 CFM, 2 Year Warranty
Part number:
CRA12001
Price:
The CRA12001 Carbon Rack Fan improves ventilation in rack enclosures. The fan panel has (6) 208 Vac high performance fans and a 6.5 ft power cord with IEC-320 C14 plug. Mounting hardware is included. The CRA12001 is covered by a 2-year limited warranty. Compatible with CyberPower Rack Enclosures CR42U11001 and CR24U11001.
Features:
- Fan Type: Roof mounted
- Number of Fans: 6
- Operating Voltage: 208 Vac
- Air Flow: 480 (CFM)
- Warranty: 2-Year Limited
| General | |
| Type | 208V Roof Fan Panel |
| Input | |
| Nominal Input Voltage | 208/240Vac |
| Input Frequency | 50/60Hz |
| Plug Type | IEC C14 |
| Power Cord Length (ft) | 6.5 |
| Power Cord Length (m) | 2 |
| Power Switch | Lighted On/Off |
| performance | |
| Air Flow (CFM) | 480 |
| Physical | |
| Installation | Hardware Included |
| Color | Black |
| Number of Fans | 6 |
| Audible Noise at 1.5m | 52 dBA |
| Unit Dimensions – WxHxD (in) | 13.78 x 2.01 x 22.05 |
| Unit Dimensions – WxHxD (mm) | 350 x 51 x 560 |
| Weight (lbs) | 12.6 |
| Weight (kg) | 5.7 |
| Shipping Dimensions – WxHxL (in) | 15.0 x 3.1 x 23.2 |
| Shipping Dimensions – WxHxL (mm) | 380 x 80 x 590 |
| Shipping Weight (lbs) | 13.6 |
| Shipping Weight (kg) | 6.2 |
| Certifications | |
| Safety | CE |
| Approvals | RoHS |
| Warranty | |
| Product Warranty | 2 Years Limited |
