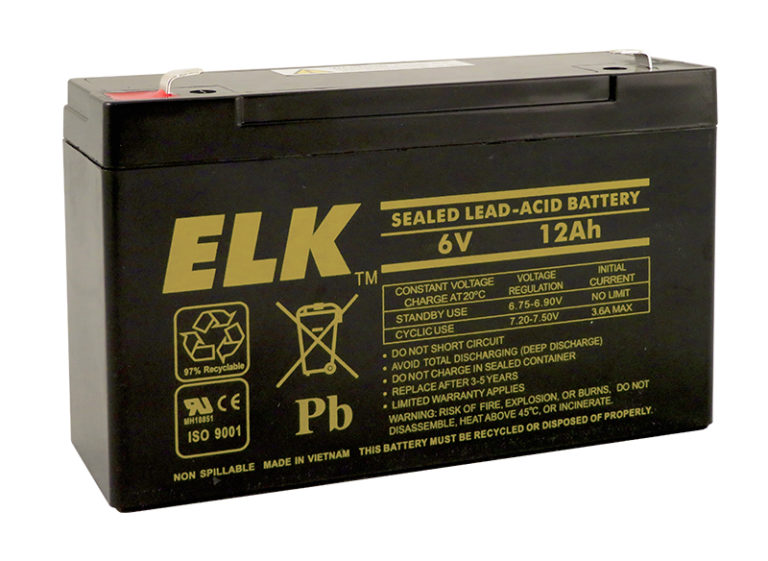

ELK - 6120 - Sealed Lead Acid Battery, 6 V 12Ah
Part number:
6120
Price:
ELK Sealed Lead Acid Batteries are excellent for the following applications with regard to size, Amp hour rating, and proper terminal connections: battery backup (for Access Control Systems, Fire Alarm Systems, and Security Alarm Systems), emergency lights, lighted exit signs, and uninterruptible power supplies.
Features:
- Rechargeable
- All virgin materials for long life
- More lead for greater Ah capacity
- Size comparable to other manufacturer's lower Ah sizes
- UL Recognized Component
- 2 Year Over-the Counter Warranty
| SPECIFICATIONS | |
| Nominal Voltage | 6 Volts |
| Rated Capacity | 12 Ah (20 hour rate) |
Nominal Capacity (77°F, 25°C) 20 hour rate (0.61A) 10 hour rate (1.16A) 5 hour rate (2.08A) 1 hour rate (6.67A) | 12.2 Ah 11.6Ah 10.4 Ah 6.67 Ah |
| Effect of Temperature on Capacity (20 hour rate) | Note: Prolonged exposure to extreme temperatures can have long term effects on battery performance |
104˚F (40˚C) 77˚F (25˚C) 32˚F (0˚C) 5˚F (-15˚C) | 102% 100% 85% 65% |
| Charge Constant Voltage Cycle | 7.0V - 7.5V at 77˚F (25˚C) Initial Charging Current 3.6A Max |
| Standby | 6.8V - 6.9V at 77˚F (25˚C) |
| Weight (Approximate) | 4.09 lbs (1.86 kg) |
| Terminals | F1 Faston Tab (.187”) |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
File
ELK Sealed Lead Acid Batteries - SDS
0.6mb
