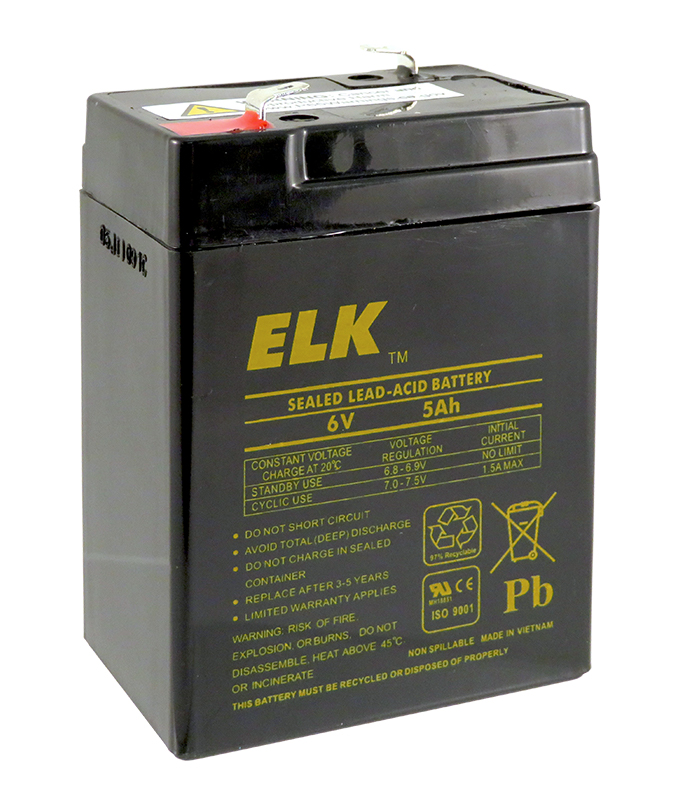

ELK - 650 - Sealed Lead Acid Battery, 6 V 5Ah
Part number:
650
Price:
ELK Sealed Lead Acid Batteries are excellent for the following applications with regard to size, Amp hour rating, and proper terminal connections: battery backup (for Access Control Systems, Fire Alarm Systems, and Security Alarm Systems), emergency lights, lighted exit signs, and uninterruptible power supplies.
Features:
- Rechargeable
- All virgin materials for long life
- More lead for greater Ah capacity
- Size comparable to other manufacturer's lower Ah sizes
- UL Recognized Component
- 2 Year Over-the Counter Warranty
| SPECIFICATIONS | |
| Nominal Voltage | 6 Volts |
| Rated Capacity | 5 Ah (20 hour rate) |
Nominal Capacity (77°F, 25°C) 20 hour rate (0.25A) 10 hour rate (0.46A) 5 hour rate (0.85A) 1 hour rate (2.81A) | 5 Ah 4.6 Ah 4.25 Ah 2.81 Ah |
| Effect of Temperature on Capacity (20 hour rate) | Note: Prolonged exposure to extreme temperatures can have long term effects on battery performance |
104˚F (40˚C) 77˚F (25˚C) 32˚F (0˚C) 5˚F (-15˚C) | 102% 100% 85% 65% |
| Charge Constant Voltage Cycle | 7.0V - 7.5V at 77˚F (25˚C) Initial Charging Current 1.5A Max |
| Standby | 6.8V - 6.9V at 77˚F (25˚C) |
| Weight (Approximate) | 1.82 lbs (0.83 kg) |
| Terminals | F1 Faston Tab (.187”) |
