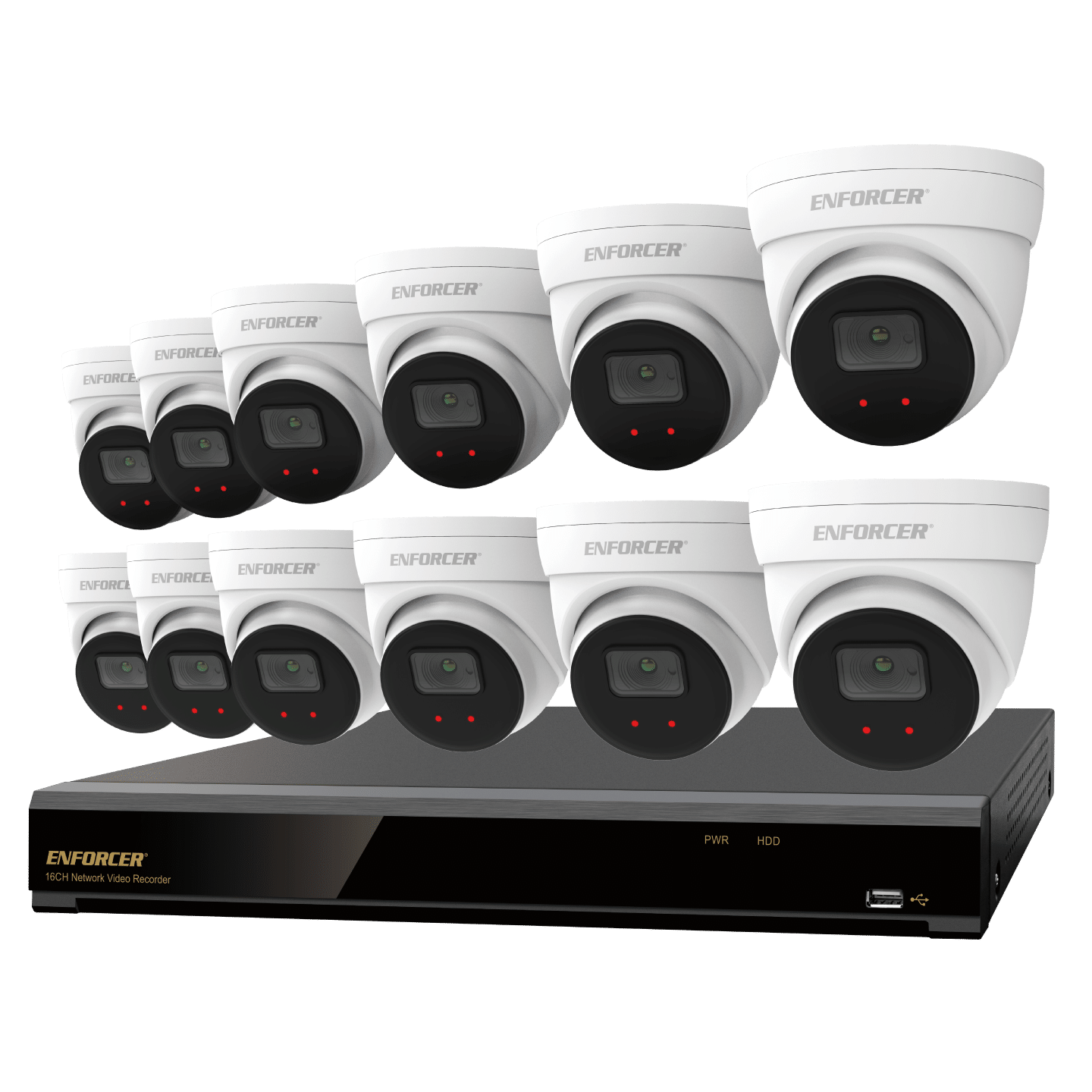

SECO-LARM - DRN-K116-12 - 4K 16-Channel IP Camera Kit, Includes NVR (DRN-116-4TB) and 12 Cameras (EV-N2506-2W4WQ), 4TB HDD, NDAA Compliant
Part number:
DRN-K116-12
Price:

ENFORCER Surveillance Kits offer all the elements of an easy plug-and-play installation. The included IP cameras provide excellent picture quality with True Wide Dynamic Range (WDR) and Digital Noise Reduction (3DNR). The NVR features built-in AI functions for multiple security purposes. The kits are suitable for various applications due to their cost-effectiveness and simple-to-install design.



Features:

  • EV-N2506-2W4WQ 5MP 2.8mm Turret Cameras included
  • Compatible with 8MP (4K) IP Cameras
  • Wizard assistance for easy first time setup
  • Plug-and-Play
  • Built-in PoE ports (IEEE 802.3af/at)
  • VGA and HDMI outputs with up to 4K resolution
  • Includes one 4TB HDD
  • Supports up to 2HDD
  • Other HDD sizes available by special order, including 1/2/4/6/8/10 TB
  • ONVIF® profile S conformant
  • Easy app setup with QR code
  • Tri-stream encoding
  • Live view recording and playback up to 4K@45FPS
  • P2P for simple remote connections using PC or mobile device
  • 8 Sensor inputs, 1 alarm relay output
  • 9 AI functions including human and vehicle detection (additional functions with EV-N2806-2W4WQ 8MP Turret Camera)

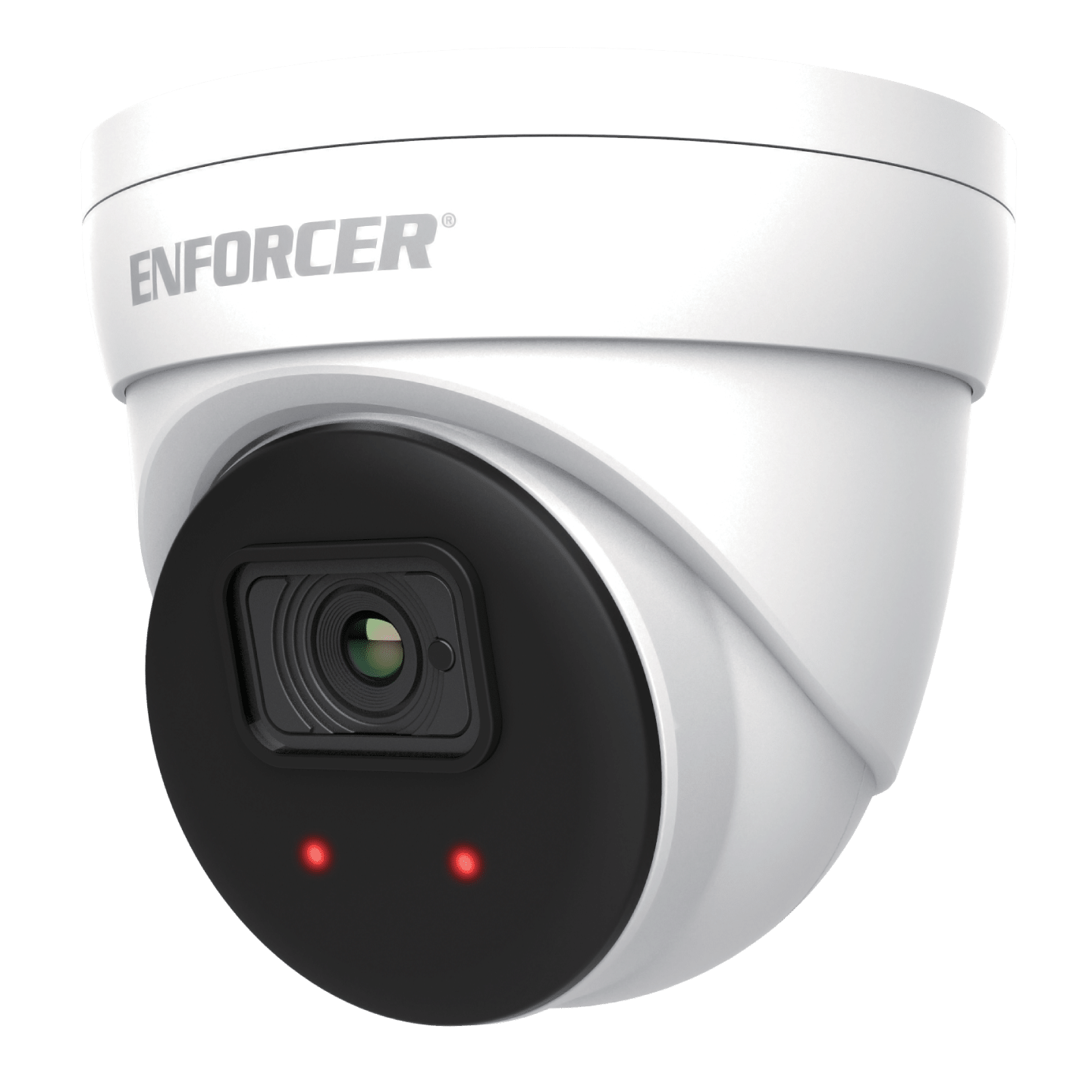

Camera Features:

  • 1/2.7″ 5MP SmartSens CMOS sensor
  • 30FPS@5MP (2880×1620)
  • 2.8mm lens
  • H.265, H.264, and MJPEG
  • True Wide Dynamic Range (WDR)
  • Digital Noise Reduction (3DNR)
  • True Day & Night function with ICR module
  • IP66 Weatherproof
  • IR Range 98′ (30mm)
  • ONVIF® profile G, M, S, and T conformant
  • Smart IRs adjust IR strength to conditions


AI Functions:

  • Face detection
  • Human & vehicle detection
  • Perimeter intrusion detection
  • Line crossing detection
  • Stationary object detection
  • Cross counting
  • Heat map
  • Crowd density detection
  • Queue length detection


With EV-N2806-2W4WQ 8MP Turret Camera (optional):

  • Facial recognition
  • License plate detection
  • License plate recognition
Camera Specifications
Image sensor1/2.7″ 5MP SmartSens CMOS sensor
Effective pixels2880(H)x1620(V)
Scanning systemProgressive scan
Electronic shutter speedAuto, manual; 1/5 s to 1/20,000 s
Minimum illuminationColor: 0.1Lux at F1.2 (AGC on) 0Lux with IR on
IR DistanceDistance up to 98′ (30m)
IR On/Off control2pcs (850nm) LEDs
Focal length2.8mm
Maximum apertureF1.6
Field of viewHorizontal: 110°, Vertical: 58°, Diagonal:133°
Bit rate controlCBR/VBR
Bit rateMain stream: 256 to 8192 Kbps, Sub stream: 128 to 4096 Kbps,
 Mobile stream: 8 to 1536 Kbps
BacklightDisable (default) BLC, HLC, True WDR
White balanceAuto
Gain controlAuto
Noise reduction3DNR
Smart IRSupport
Image rotation0″, 180″
MirrorDisable, vertical, horizontal, all
Privacy maskingOff, on (4 areas, rectangle)

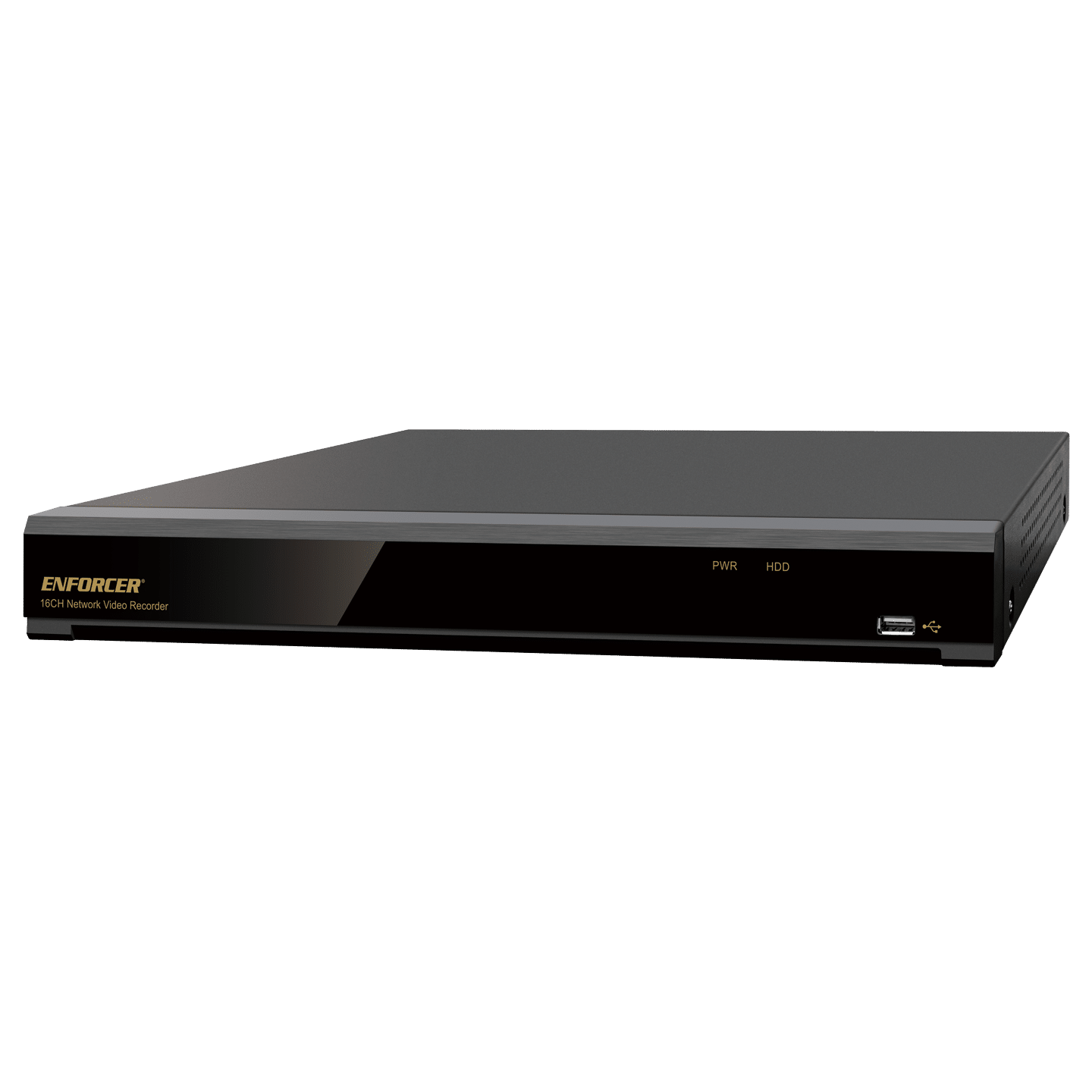

NVR Specifications
IP Camera included12x EV-N2506-2W4WQ
Video
Camera supportUp to 8MP (4K)
Incoming bandwidth112Mbps
Outgoing bandwidth96Mbps
HDMI Output1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080, 2560×1440, 3840×2160 (4K)
VGA Output1024×768, 1280×720, 1280×1024, 1440×900, 1920×1080
Frame rate4K: Up to 45FPS, 4MP: Up to 90FPS, 2MP: Up to 180FPS
CompressionH.265+, H.265, H.264+, H.264
AISupport
Playback functionsFast forward / backward (2x, 4x, 8x, 16x), Slow forward (1/2x, 1/4x, 1/8x, 1/16x)
User Interface
LocalUI5.0
WebIE10/11, Safari V12.1 above, Firefox V.52 above, Google Chrome V.57 above, Edge V.79 above
Auxiliary Interface
HDMI Output1 Output
VGA Output1 Output
PoE Input16x RJ45
USBUSB 2.0 x 1 front & 1 rear
Alarm I/O8  In / 1 Out
Included HDD4TB SATA
Internal storage capacity2 SATA HDD, up to 10TB
General
Power supply48VDC@3.75A
Power consumption8W
Dimensions (WxDxH)14-7/8″ x13-3/8″ x2″ (378x340x50 mm)
Operating temperature32°~104°F (0°~40°C)
HumidityLess than 90%RH
