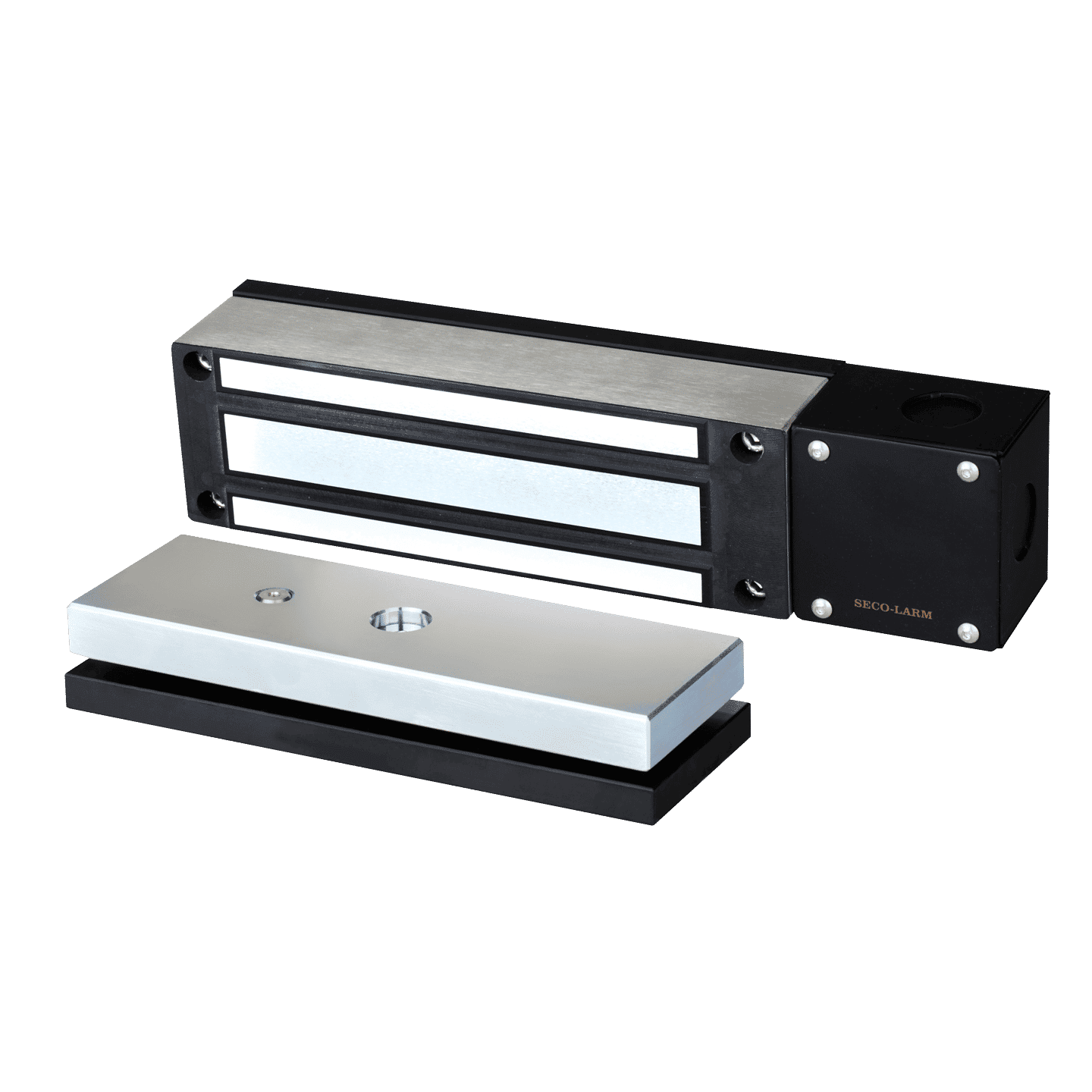

SECO-LARM - E-942FC-1K3SQ - 1,200-lb Electromagnetic Gate Lock, Face Mount, Weldable
Part number:
E-942FC-1K3SQ
Price:
Electromagnetic Gate Lock with brackets for armature and magnet. The E-942FC-1K3SQ is primarily designed for swinging gates.
Features:
- 1,200-lb (545 kg) Holding force
- No residual magnetism
- MOV Surge protection
- Face mounting
- For sliding or swinging gates
- Weld or bolt brackets directly to the gate
- Brackets are zinc-plated for corrosion resistance
- Water- and vandal-resistant attractive stainless-steel black finish to match most gates
- Maintenance-free, factory-sealed design
- Fail-safe operation (releases if power is removed)
- Waterproof (IP67) and vandal resistant for indoor and outdoor applications
- Dual-threaded conduit fitting
- Attractive stainless steel housing
- Junction box with 4 knockouts
- Complete mounting hardware for typical installations
- Additional brackets available for easy mounting or atypical situations
- 12/24VDC Selectable
| Holding Force | 1,200-lb (544kg) |
| Operating Voltage | 12VDC or 24VDC |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| IP Rating | IP67 Waterproof |
| Operating Temperature | 14º~131º F (-10º~55º C) |
| Certification | cUL, UL, CE, RoHS (magnetic lock only) |
| Weight | 15.9-lb (7.75kg) |
| Maglock & Armature Weight (Approx.) | 11-lb (5kg) |
| Bracket Weight (Approx.) | 4.6-lb (2.1kg) |
