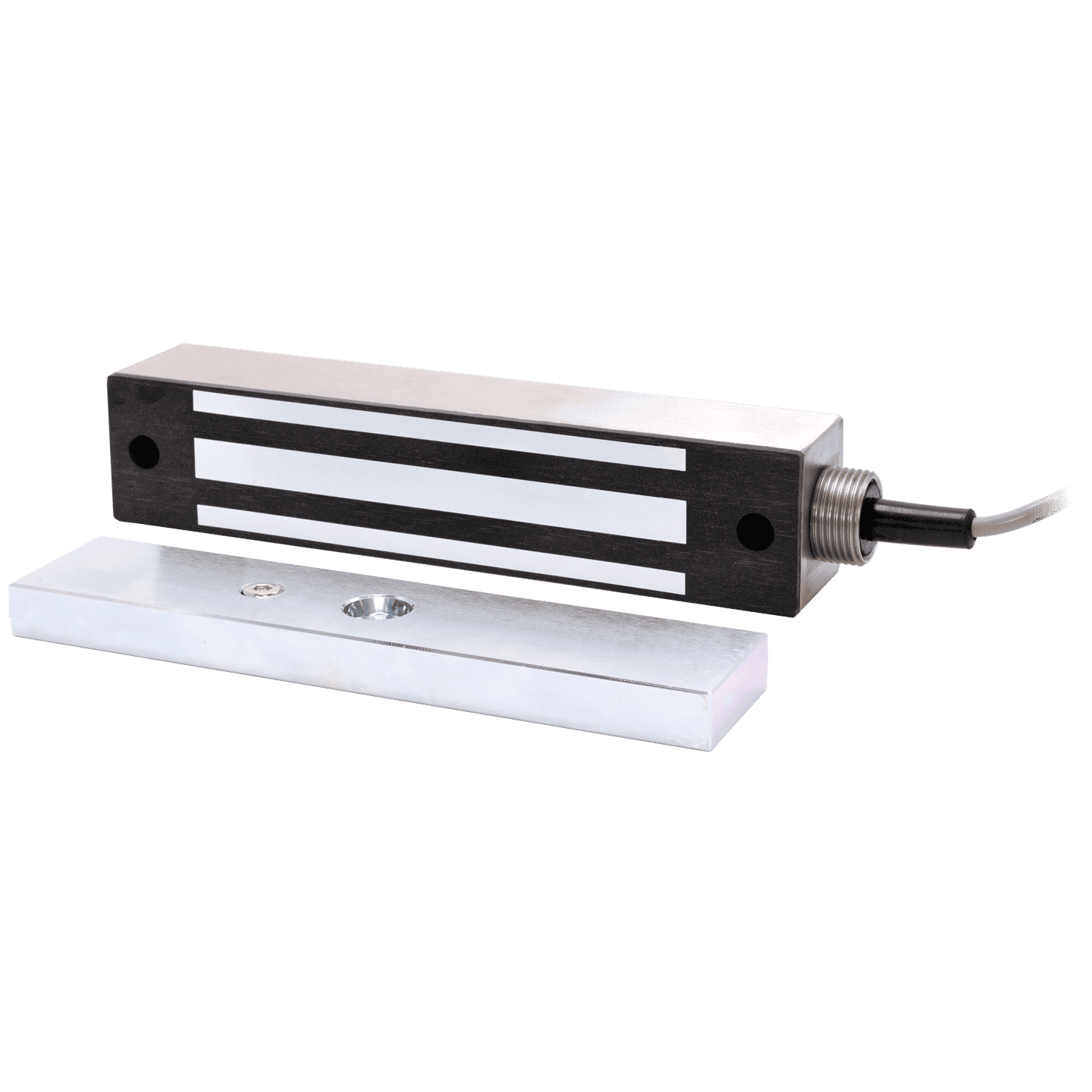

SECO-LARM - E-942FC-600 - 600-lb Electromagnetic Gate Lock, Face Mount, UL Listed
Part number:
E-942FC-600
Price:
Electromagnetic Gate Lock with 600-lb (272kg) holding force. 12 or 24 VDC operation. Indoor and outdoor use. UL, CUL listed. Face mount.
Features:
- 600-lb (271kg) Holding force
- No residual magnetism
- MOV Surge protection
- Face-mount
- For sliding or swinging gates
- Can be mounted horizontally or vertically
- For indoor and outdoor applications
- Maintenance-free, factory-sealed design
- Waterproof (IP67) and vandal resistant
- Dual-threaded conduit fitting
- Attractive stainless steel housing
- 3-ft (91cm) Hookup cord
- Complete mounting hardware for typical installations
- Additional brackets available for easy mounting or atypical situations
- 12/24VDC Selectable
| Holding Force | 600-lb (272kg) |
| Operating Voltage | 12VDC or 24VDC ±10% |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| IP Rating | Weatherproof IP67 |
| Operating Temperature | 14º~131º F (-10º~55º C) |

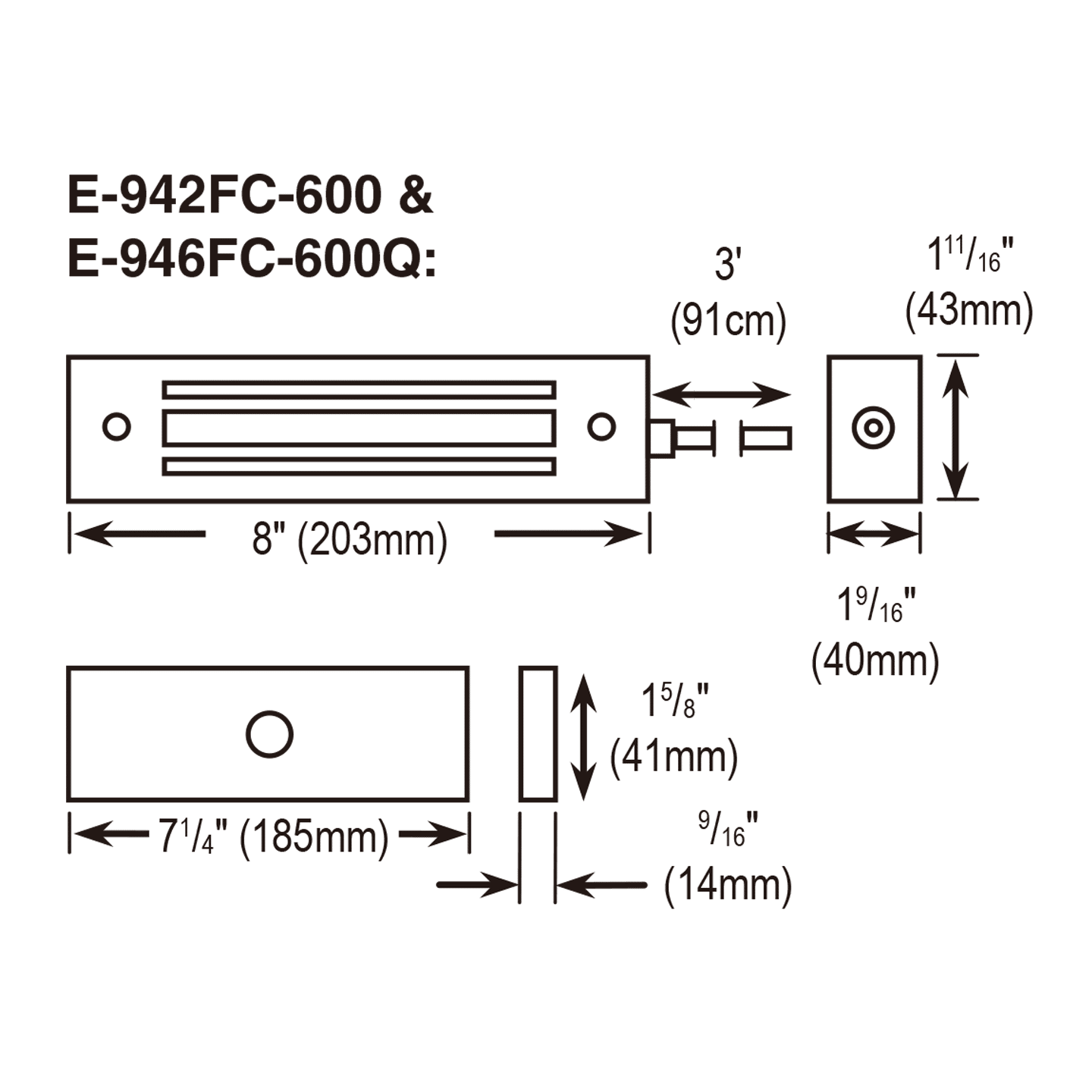

| Electromagnet Dimensions | 8″ x 1-11/16″ x 1-9/16″ (203x43x40 mm) |
| Armature Dimensions | 7-1/4″ x 1-5/8″ x 9/16″ (185x41x14 mm) |
| Weight | 6-lb (2.7kg) |
Name
Description
Size
Downloads
File
Mounting Template
0.9mb
File
MANUAL
0.5mb
File
Product Information Sheet
1.7mb
