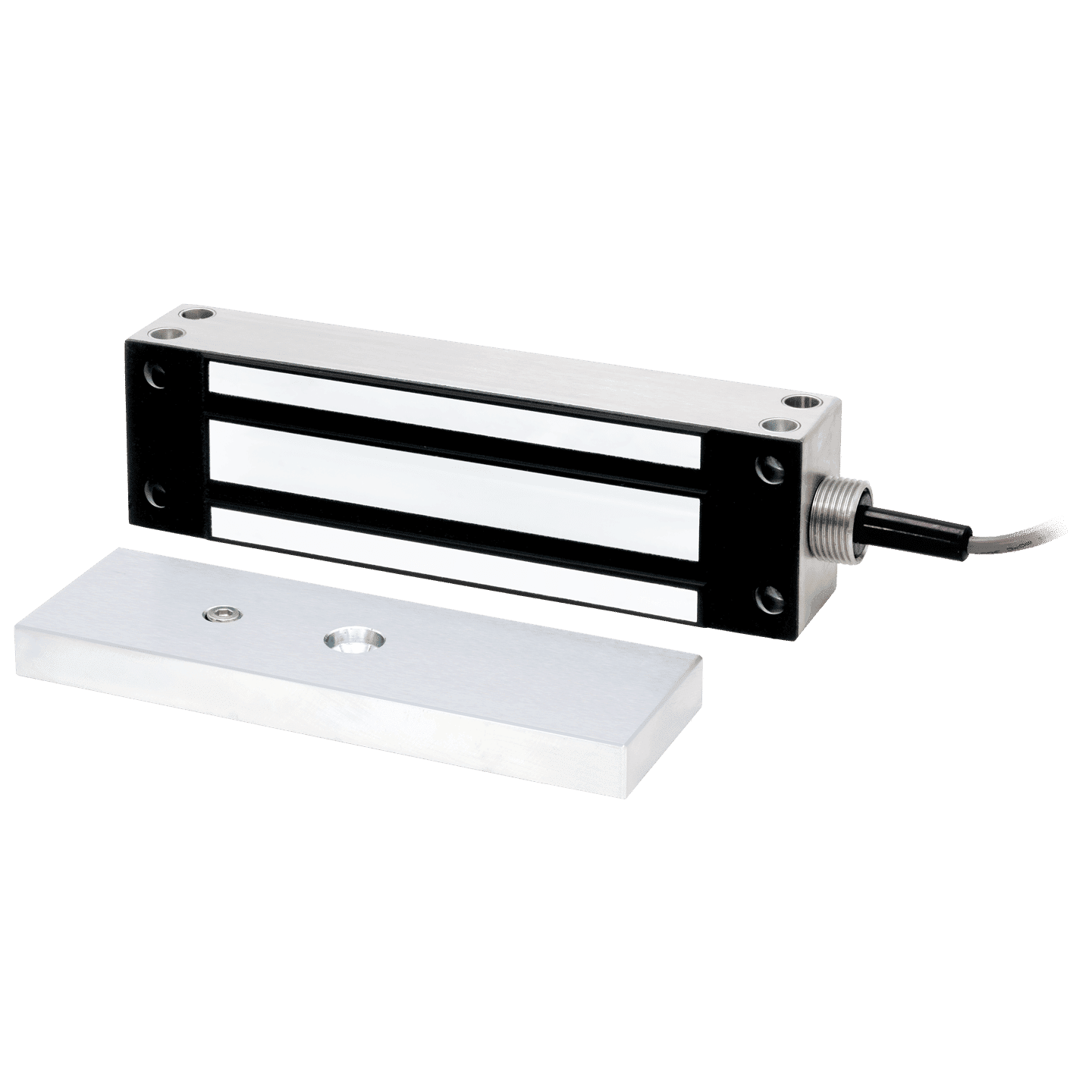

SECO-LARM - E-946FC-1K2Q - 1,200-lb Electromagnetic Gate Lock, Face or Surface Mount, UL Listed
Part number:
E-946FC-1K2Q
Price:
Electromagnetic Gate Lock with 1,200-lb (544kg) holding force. 12 or 24 VDC operation. Indoor & outdoor use. UL, CUL listed. Face or surface mount.
Features:
- 1,200-lb (545 kg) Holding force
- No residual magnetism
- MOV Surge protection
- Face or surface mounting
- For sliding or swinging gates
- Maintenance-free, factory-sealed design
- Waterproof (IP67) and vandal resistant for indoor and outdoor applications
- Dual-threaded conduit fitting
- Attractive stainless steel housing
- 6.5-ft (2m) Hookup cord
- Complete mounting hardware for typical installations
- Additional brackets available for easy mounting or atypical situations
- 12/24VDC Selectable
| Holding Force | 1,200-lb (544kg) |
| Operating Voltage | 12VDC or 24VDC ±10% |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| IP Rating | IP67 Waterproof |
| Operating Temperature | 14º~131º F (-10º~55º C) |
| Electromagnet Dimensions | 8-11/16″ x 2-1/2″ x 1-9/16″ (220 x 63 x 40 mm) |
| Armature Dimensions | 7-1/4″x2-3/8″x5/8″ (185x61x16 mm) |
| Weight | 11-lb (5kg) |
