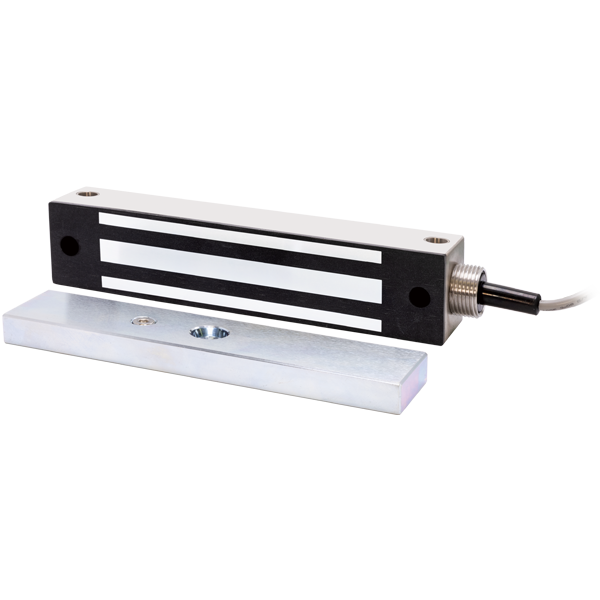

SECO-LARM - E-946FC-600Q - 600-lb Electromagnetic gate lock, face or surface mount, UL Listed
Part number:
E-946FC-600Q
Price:
Electromagnetic Gate Lock with 600-lb (272kg) holding force. 12 or 24 VDC operation. Indoor and outdoor use. UL, CUL listed. Face or surface mount.
Features:
- No residual magnetism
- MOV Surge protection
- Face or surface mounting
- For sliding or swinging gates
- Maintenance-free, factory-sealed design
- Waterproof (IP67) and vandal resistant for indoor and outdoor applications
- Dual-threaded conduit fitting
- Attractive stainless steel housing
- 3-ft (91cm) Hookup cord
- Complete mounting hardware for typical installations
- Additional brackets available for easy mounting or atypical situations
- 12/24VDC Selectable
- Multiple UL listings
- UL10C Positive Pressure Fire Test – USA
- UL10B Fire Test of Door Assemblies – USA
- ULC-S104 Fire Test of Door Assemblies – Canada
| Holding Force | 600-lb (272kg) |
| Operating Voltage | 12VDC or 24VDC ±10% |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| IP Rating | IP67 Waterproof |
| Operating Temperature | 14º~131º F (-10º~55º C) |
| Electromagnet Dimensions | 8″ x 1-11/16″ x 1-9/16″ (203 x 43 x 40 mm) |
| Armature Dimensions | 7-1/4″ x 1-5/8″ x 9/16″ (184 x 41 x 14 mm) |
| Weight | 6-lb (2.7kg) |
