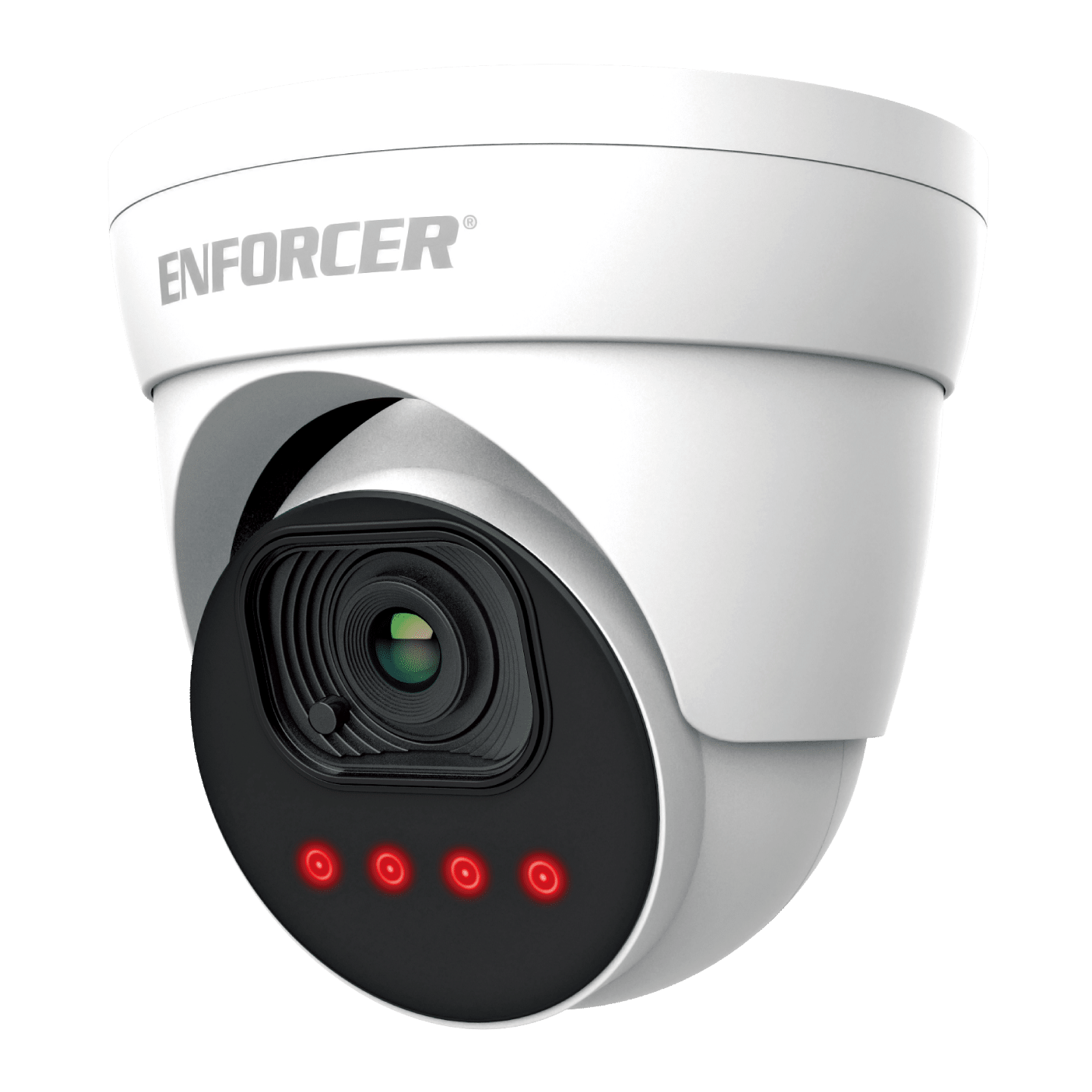

SECO-LARM - EV-N2506-NW4WQ - IP 5MP Motorized 2.8-12 mm Turret Camera
Part number:
EV-N2506-NW4WQ
Price:

IP 5MP Motorized 2.8mm~12mm Turret Camera, ”SmartSens CMOS Sensor, 30FPS@5MP, True WDR, 3DNR, True Day & Night with ICR, IP66, -40° to 131°F, Smart IRs, 9 AI Functions, NDAA Compliant.

The ENFORCER Motorized Turret Camera offers high-resolution video and advanced technology in a compact and accessible package. The camera features H.265 video compression, reducing bandwidth and storage requirements without giving up video quality. With True Wide Dynamic Range (WDR), Digital Noise Reduction (3DNR) and Day/Night (ICR) capabilities, the camera provides excellent picture quality.



Features:

  • 1/2.7″ 5MP SmartSens CMOS Sensor
  • 30FPS@5MP, 1620p (2880×1620)
  • 2.8~12 mm Lens
  • Triple Stream Encoding: H.265, H.264 and MJPEG
  • True Wide Dynamic Range (WDR)
  • Digital Noise Reduction (3DNR)
  • True Day & Night Function with ICR Module
  • ICR Sensitivity adjustment
  • Corridor mode
  • Operating temperature: -40°~131° F (-40°~55° C)
  • IP66 Weatherproof
  • IR Range 147′ (45m)
  • Smart IRs adjust IR strength to conditions
  • MicroSD slot (512GB max)
  • PoE (IEEE 802.3af), 12VDC
  • ONVIF® profiles G, M, S, and T conformant
  • Junction box is not included with the product


AI Functions:

  • License plate detection
  • License plate recognition
  • Face detection
  • Human & vehicle detection
  • Perimeter intrusion detection
  • Line crossing detection
  • Stationary object detection
  • Cross counting
  • Heat map
  • Crowd density detection
  • Queue length detection
Camera
Image sensor1/2.7″ 5MP SmartSens CMOS sensor
Effective pixels2880(H)x1620(V)
Scanning systemProgressive scan
Electronic shutter speedAuto, manual; 1/5 s to 1/20,000 s
Minimum illuminationColor: 0.002Lux at F1.2 (AGC on) 3Lux with IR on
IR DistanceDistance up to 147′ (45m)
IR On/Off controlAuto, manual
IR LEDs4x850nm LEDs
Lens
Lens typeMotorized
Focal length2.8~12 mm
Maximum apertureF1.8~3.3
Field of viewHorizontal: 107°~33.6°, Vertical: 54.7°~18.90°, Diagonal: 133.7°~37.6°
Video
CompressionH.265, H.264
Streaming capabilityTriple (3) streams
Resolution2880×1620, 2560×1440, 2304×1296, 1080p (1920×1080), 720p (1280×720)
Bit rate controlCBR/VBR
Bit rateMain stream: 256 to 8192 Kbps, Sub stream: 128 to 4096 Kbps,
 Mobile stream: 8 to 1536 Kbps
BacklightDisable (default) BLC, HLC, True WDR
White balanceAuto
Gain controlAuto
Noise reduction3DNR
Smart IRSupport
Image rotation0″, 180″
MirrorDisable, vertical, horizontal, all
Privacy maskingOff, on (4 areas, rectangle)
Region of interestSupport
Network
EthernetRJ45
ProtocolTCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP
InteroperabilityONVIF® profiles G, S, and T conformant
Auto registerSupport
Streaming methodMulticast
Max. user access7
Web viewerIE, Chrome, Firefox, Edge
On-board storageBuilt in memory slot Supports up to 512GB MicroSD/SDHC/SDXC
Certifications
CertficationsCE, FCC, RoHS
ONVIF®Profiles G, S, and T conformant
NDAACompliant
Electrical
Power supply12VDC, or PoE (IEEE 802.3af Class 0)
Power consumption< 6W
Environmental
Operating conditions-40°~131° F (-40°~55° C) Less Than 95% RH
Storage conditions-40°~140° F (-40°~60° C)
IP RatingIP66 Weatherproof
Construction
CastingMetal
Dimensionsø5-5/16″x5-1/8″ (ø135×130 mm)
Weight1-lb 9.6-oz (725g)
