SECO-LARM - EV-N6506-3W4Q - IP Covert PIR Camera
Part number:
EV-N6506-3W4Q
Price:
5MP IP Covert PIR Camera, 3.7mm pinhole lens, 2D digital noise reduction, digital wide dynamic range, 1/2.8" 5MP Sony CMOS, 1440p resolution, H.265/MJPEG, Dual Stream. ONVIF Profile S, 12VDC, PoE, low-profile design, 18 covert IR LEDs for discreet monitoring, white

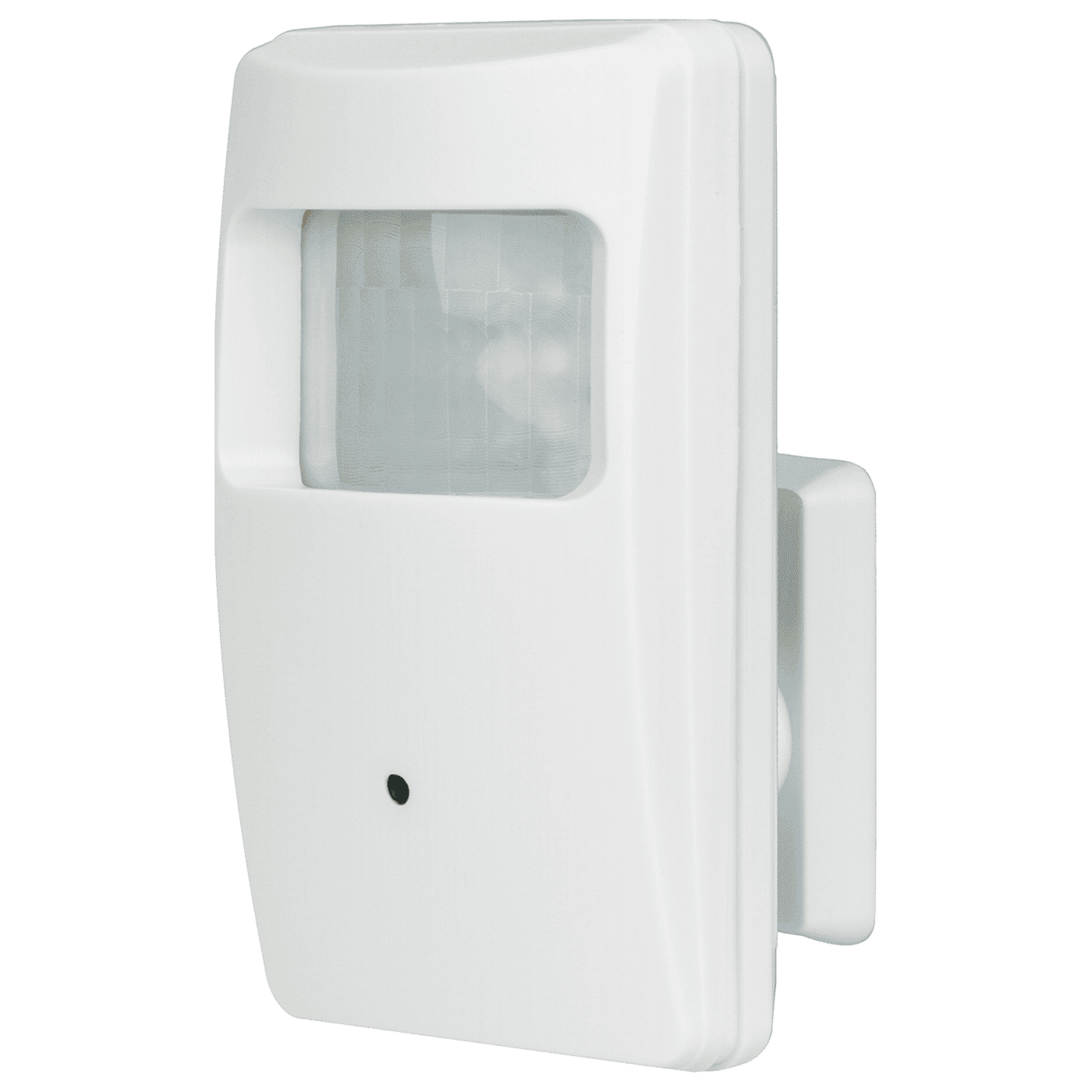

The ENFORCER IP Covert PIR Camera conceals a 5MP Low-Illumination, H.265 Dual Stream IP camera in a non-functioning PIR housing for unobtrusive, discreet security. It offers features such as true Day and Night with an ICR module, digital noise reduction (2DNR and 3DNR), and Digital Wide Dynamic Range (D-WDR) all with the convenience and features of an IP camera.
Features:
- H.265, Dual Stream IP Camera
- 1/2.8″ 5MP Low illumination CMOS
- D-WDR (Digital Wide Dynamic Range)
- 3.7mm Covert pinhole lens
- True Day & Night with ICR module
- 12VDC operation, 802.3af PoE
- 1440p Resolution
- 3DNR (3D Digital Noise Reduction)
- 2DNR (2D Digital Noise Reduction)
- Camera is hidden in a non-functioning PIR sensor housing
| Type | Covert PIR Camera |
| Formats | IP |
| CMOS | 1/2.8″ 5MP Low illumination CMOS |
| Resolution | 2880×1616, 1440p |
| 2DNR | Yes |
| 3DNR | Yes |
| D-WDR | Yes |
| Video compression | H.265 |
| Megapixels | 5MP |
| Lens | 3.7mm Pinhole lens |
| # of IR LEDs | 18 Covert (940nm) |
| IR Range | Up to 50ft (15m) |
| FPS | 25 |
| F Stop | 1.2 |
| Minimum Illumination | IR On: 0.01 Lux |
| IR Off: 0.001 Lux | |
| Electronic shutter speed | 1/50s(1/60s)~1/10000s |
| Shutter control | Yes |
| Primary stream rate | 32Kbps~8Mbps |
| Secondary stream rate | 32Kbps~8Mbps |
| Operating voltage | 12VDC, 802.3af PoE |
| Operating Temperature | -4°~140° F (-20°~60° C) |
| Dimensions | 4-1/16″x2-3/8″x1-5/16″ (104x60x34 mm) |
| Weight | 12.3-oz (350g) |
Name
Description
Size
Downloads
File
Web Administration Manual
0.9mb
File
Manual
0.2mb
File
Product information sheet
0.3mb
