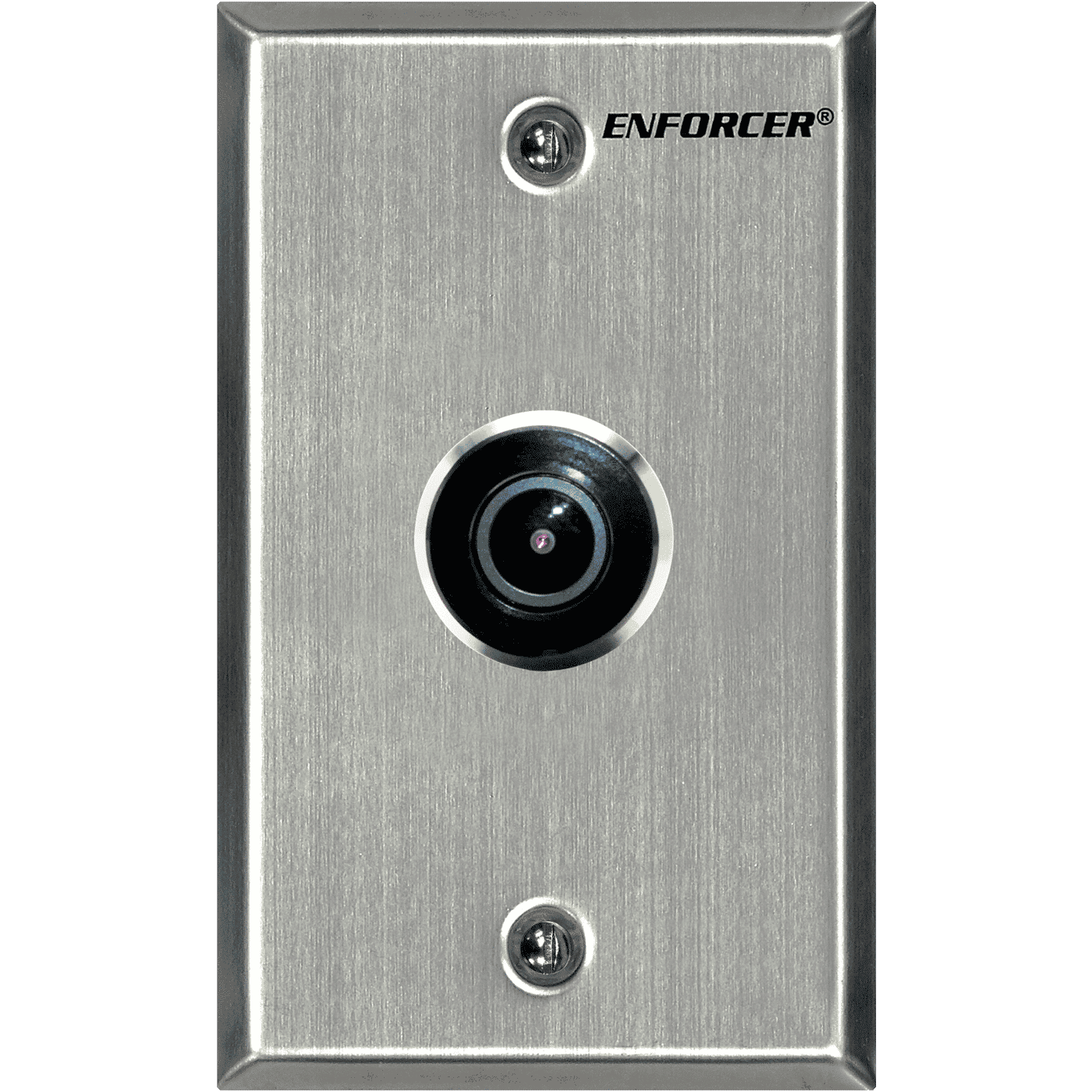

SECO-LARM - EV-Y5105-N2SQ - 4-in-1 HD TVI, CVI, AHD, Analog Wall-Plate Camera
Part number:
EV-Y5105-N2SQ
Price:
4-in-1 HD Wall Plate Camera, 2.9mm lens, 1080p, 150 viewing angle, DWDR, 3D-NR, Sony 1/3.2" 1.3MP STARVIS CMOS, 12VDC, vandal resistant and weather resistant. One single-gang and one slimline plate included. ENFORCER Vandal-Resistant Wall-Plate Cameras can be installed inconspicuously in many different locations: doors, walls, car bumpers, gates, entryways, machinery, and many other places.
Features:
- TVI, CVI, AHD, Analog (CVBS)
- 2.9mm Lens (155° viewing angle)
- 1/2.8″ 2MP Sony STARVIS CMOS
- D-WDR (Digital Wide Dynamic Range)
- 2DNR (2D Digital Noise Reduction)
- Vandal-resistant
- Waterproof (IP67)
- Fits in a standard single-gang back box (not included)
- Adjustable mounting angle
- Each kit includes:
- Camera
- Single-gang plate
- Slimline plate
- Angled mounting rings
| Type | Wall-plate camera |
| Image sensor | 1/2.8″ 2MP Sony STARVIS CMOS |
| Video Output Format | HD TVI, CVI, AHD, Analog (CVBS) |
| Resolution | 1080p |
| Viewing Angle | 155° |
| Effective Pixels | 1920×1080 |
| 2DNR | Yes |
| D-WDR | Yes |
| Minimum Illumination | Color: 0.01Lux, BW: 0.001Lux |
| Scanning System | 2:1 Interface |
| Sync | Internal |
| FPS | 30FPS |
| Lens | 2.9mm |
| F Stop | 2 |
| S/N Ratio | 50dB |
| Operating Voltage | 12VDC |
| Current Draw | 130mA±15% |
| Gamma Correction | 0.45 |
| Gain Control | Auto |
| IP Rating | Waterproof IP67 |
| Operating Temperature | 14°~122° F (-10°~50° C) |
| Dimensions | Camera: 1-7/16″xø1-1/8″(36xø28 mm) |
| Single-gang plate: 2-3/4″x41/2″ (70×114 mm) | |
| Slimline plate: 1-1/2″x4-1/2″ (38×114 mm) | |
| Weight | 2.8-oz (80g) |
