4K HDMI Splitter/Extender 1 x 4 over Cat5e/6. Extends range up to 230ft (70m) over Cat6. Connect HDMI equipment using low-cost Cat5e/6 UTP cables. HDMI over Cat5e/6 without any signal loss. Supports 4K@30Hz resolution. Special features include Local Loop-Out and IR.  Includes one 12VDC power supply , four IR receiver, and one IR transmitter.

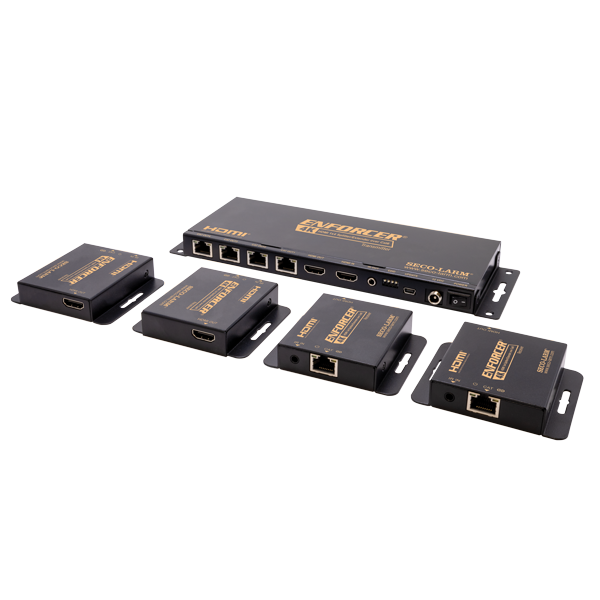

The ENFORCER 4K HDMI 1×4 Splitter/Extender over Cat6 extends the range of traditional HDMI cabling methods by using an active transmitter and 4 receivers to send video and audio over Cat6. HDMI formats as large as 4K can be transmitted up to 230ft (70m) between the units with zero signal loss by using integrated circuits in the receivers and transmitter.

Features:

• Signal Strength – Active operation ensures signal strength remains strong over the entire cable length.
• Distance – The 4K HDMI 1×4 Splitter/Extender over Cat6 is capable of providing a clear HDMI signal up to 131ft (40m) at 4K resolution or 230ft (70m) at 1080p resolution.
• Formats Supported – The 4K HDMI 1×4 Splitter/Extender over Cat6 supports both progressive and interlaced formats: 4K@30Hz/1080p/1080i/720p/576p/480p/480i.
• Plug and Play – The 4K HDMI 1×4 Splitter/Extender over Cat6 comes as a complete set consisting of a transmitter and 4 receivers, power supply, and IR dongles.
• Zero Signal Loss – Integrated circuits in the transmitter and receivers clean, buffer, and amplify the HDMI signal to prevent signal loss and ensure a clear signal regardless of the length of the cable.
• IR – Send IR signals from the monitors to the source for discrete operation of devices.
• Loop out – Supports a local monitor.
• Power – One (1) 12VDC power supply included – set powered at transmitter end
