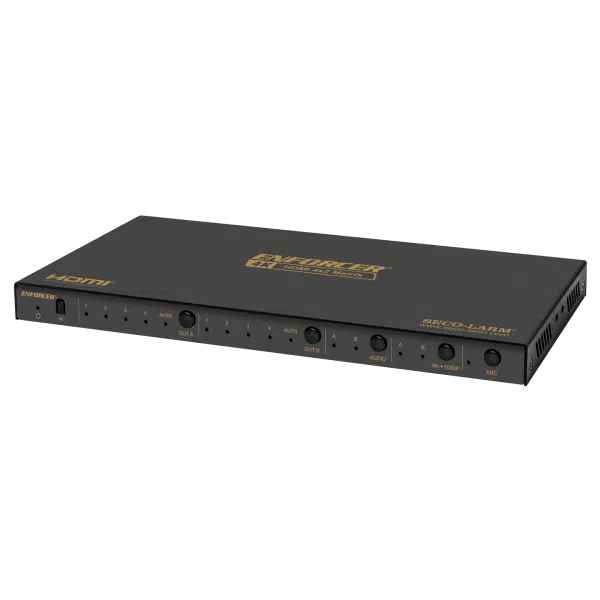

SECO-LARM - MVM-AH42-42Q - 4K HDMI 4×2 Matrix
Part number:
MVM-AH42-42Q
Price:

The ENFORCER 4K HDMI 4×2 Matrix can switch 4 HDMI sources to 2 HDMI displays. It supports up to 4K2K@60Hz YCbCr 4:4:4 and HDCP 2.2 and can extract HDMI source audio to optical and analog L/R output. It can downscale to 1080p for displays that cannot display 4K. It supports ARC and EDID over 18Gbps bandwidth and can be controlled by buttons on the front or with an included remote control.



Features:

  • 4 HDMI inputs and 2 HDMI outputs – each output can display any of the four sources
  • Supports 4K2K@50/60Hz (YCbCr 4:4:4), 4K2K@30Hz, all HDMI 3D formats and more
  • Supports 18Gbps video bandwidth uncompressed
  • Both outputs can downscale to 1080p if needed
  • Supports HDR10+, Dolby Vision, and HLG
  • Supports advanced EDID management, including AUTO, COPY, and STD
  • Supports Audio Return Channel (ARC)
  • Easy control via buttons on front or an included remote control
Input video signal3.3V
Video formats supportedHDMI 2.0, HDCP
Audio formats supported

PCM 2.0/5.1/7.1, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX,



DTX-96/24, DTS High Res, DTS HD Master, DSD

Output videoHDMI
Resolution supportedUp to 4K2K@50/60Hz (YCbCr 4:4:4), 4K2K@30Hz, all HDMI 3D, etc.
Video amplifier bandwidth18Gbps
Video connectorInput: HDMI Type A 19-pin female Output: HDMI Type A 19-pin female
Maximum cable lengthInput: 26ft (8m) Output: 9.8ft (3m)
Operating voltage12VDC
Power supply1A@12VDC Power adapter
ESD protection (human body model)±8kV (air-gap discharge), ±4kV (contact discharge)
Current draw320mA@12VDC
Operating humidity20~90% (non-condensing)
Operating temperature32°~104° F (0°~40° C)
Dimensions9-7/8″x13/16″x4-1/8″ (251x20x105 mm)
Weight1-lb 6-oz (620g)
