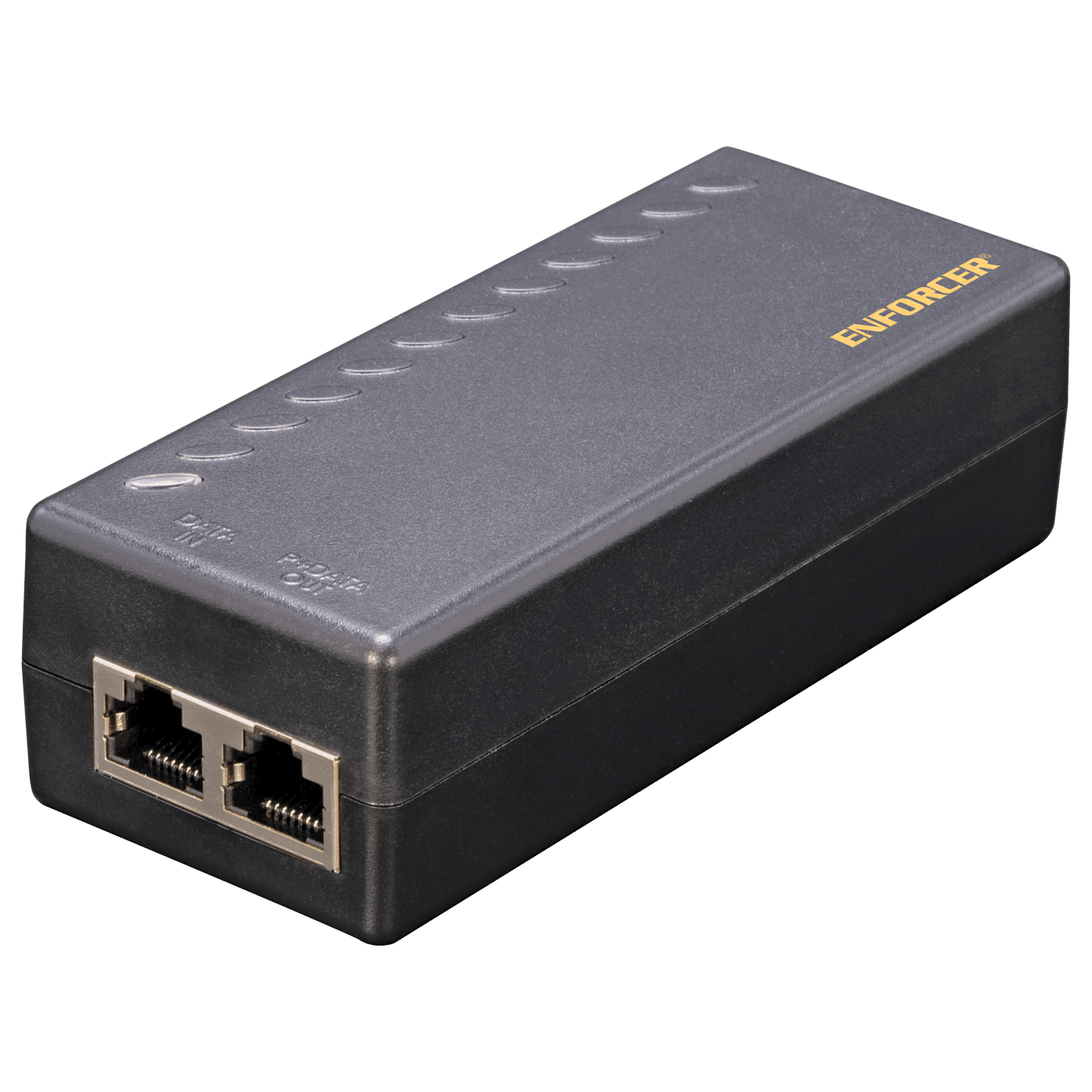

SECO-LARM - NJ-A301U-T6AQ - 30W PoE+ Injector
Part number:
NJ-A301U-T6AQ
Price:

ENFORCER 30W PoE+ Injector converts 100~240 VAC to low voltage DC and supplies power to IP cameras, IP access control, and other PoE devices using Cat5e or Cat6 cables. This allows you to supply power to IEEE 802.3af/at compliant network accessories without an external power supply and provides a compact, reliable, and affordable solution to your networking infrastructure.



Features:

  • Supports up to 30W on 2-pairs
  • LED indicates power supply input and PoE output
  • Internal AC/DC converter
  • Easy Plug-and-Play installation
  • Connects 10/100/1000BASE-T PoE devices
  • Overcurrent, overload, overvoltage, and anti-interference protection
  • Supports Cat5e network cables and higher
  • Compliant with IEEE 802.3af/at standard
Operating Voltage100~240 VAC
ConnectionsData In: 1x Shielded RJ45
 PoE Out: 1x Shielded RJ45
PoE Power outputUp to 52VDC, 30W
Power linkPin 1/2 (–), 3/6 (+) up to 30W
Network cablesCat5e or higher
ProtectionOvercurrent, overload, overvoltage, anti-interference
Ethernet speed10/100/1000 Mbps
LED IndicatorsGreen – power in, red – power out
Operating humidity90% (Maximum, non-condensing)
Operating temperature14°~104° F (-10°~°40 C)
Dimensions4-3/4″x2″x1-7/16″ (121x50x36 mm)
