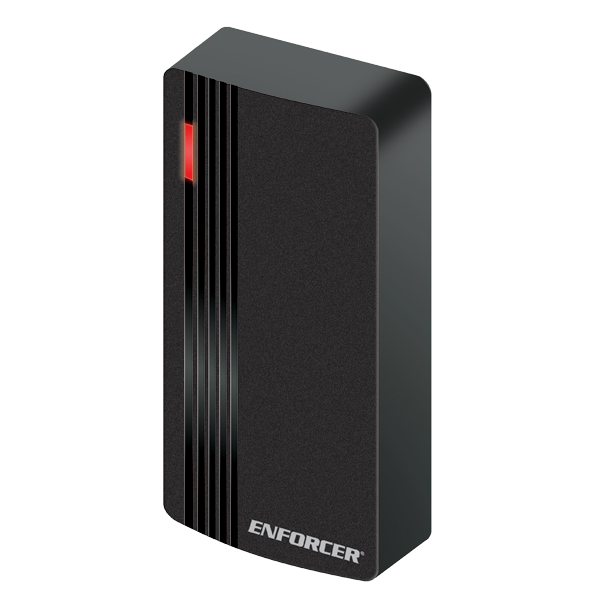

SECO-LARM - PR-2121-PQ - Mini Wiegand Proximity Reader
Part number:
PR-2121-PQ
Price:
Mini Wiegand Proximity Reader – EM 26 bits, EM 125 kHz, Outdoor rated – IP66, Extreme cold tolerance to -40° F (-40° C), 9~24 VDC Operation, Sturdy black ABS plastic housing.
| Operating Voltage | 9~24 VDC |
| Current Draw – Standby | 20mA@12VDC |
| Current Draw – Active | 50mA@12VDC (max.) |
| Outputs – Wiegand | EM – 26 bits |
| Card type | 125kHz EM |
| Card read range | 0~2″ (0~5 cm) |
| IP Rating | Weatherproof IP66 |
| Enclosure material | Black ABS plastic |
| Operating temperature | -40°~140° F (-40°~60° C) |
| Operating humidity | 10~98% non-condensing |
| Dimensions | 1-7/16″x2-3/4″x11/16″ (37x70x17 mm) |
| Weight | 1.7-oz (48g) |
Name
Description
Size
Downloads
File
Manual
0.5mb
File
Product Information Sheet
0.7mb
