SECO-LARM - SD-7983-SSHQ - Large 4.5” Round Push Plate with Stainless steel button with the International Symbol of Access and “PUSH TO OPEN
Part number:
SD-7983-SSHQ
Price:

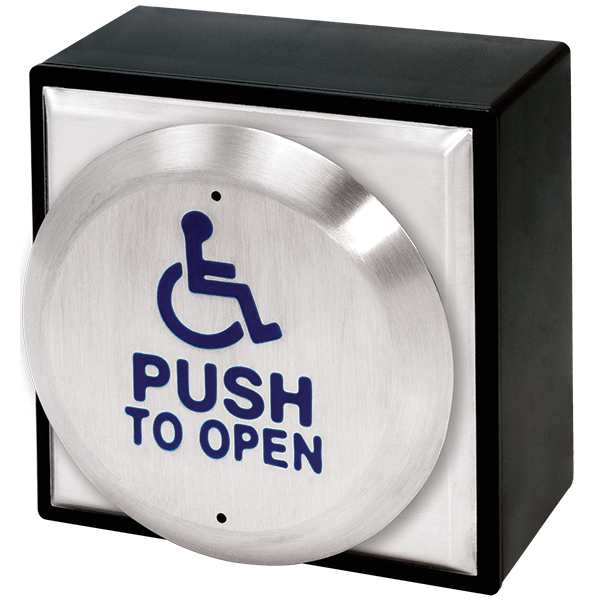

Large 4.5” Round Push Plate with Stainless steel button with the International Symbol of Access and “PUSH TO OPEN”.  Includes surface-mount plastic back box for easy RF (wireless upgrade).



The ENFORCER 4.5″ Round Push Plate is designed for easy, accessible entry and exit through public area doors. The 4.5″ Round Push Plate features a large stainless steel button with the International Symbol of Access and “PUSH TO OPEN” engraved for clear and easy visual and tactile identification. Featuring an operating life of over 100,000 cycles and a surface-mount back box for flexible mounting options, the ENFORCER 4.5″ Round Push Plate is the perfect solution for reliable, secure, and accessible entry and exit for schools, hospitals, nursing homes, apartments, and other high-density public spaces.



Features:

  • Large, stainless steel plate button for public area use
  • International Symbol of Access and “PUSH TO OPEN” engraved for easy visual and tactile identification
  • Use with SECO-LARM maglocks for an easily installed, high-security system
  • Contact rating: 15A@125/250 VAC
  • Momentary SPDT switch
  • Operating life: Over 100,000 cycles (factory tested)
  • Surface-mount plastic back box allows for quick installation, flexible mounting, and easy RF (wireless) upgrade
Weight16.5-oz (467g)
Switch TypeNO/NC/COM (SPDT)
Contact resistance50mΩ Max.(initial)
DimensionsFaceplate: 4-1/2″x4-1/2″x3/4″ (115x115x19 mm), Back box: 5-1/8″x5-1/8″x2-1/8″ (130x130x54 mm)
Flammability ratingUL94HB
Operating Temperature32°~221° F (0°~105° C)
MaterialFaceplate: Stainless Steel, Back box: ABS Plastic
Operating Life100,000 Cycles (factory tested)
Contact Rating15A@125/250 VAC
