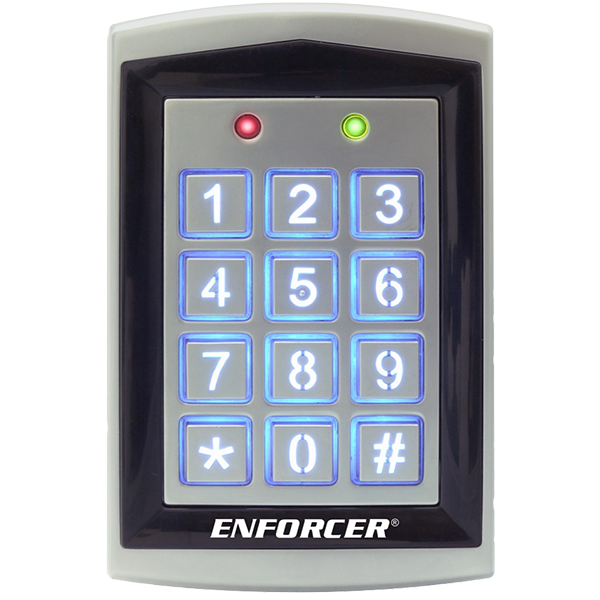

Sealed Housing Weatherproof Stand-Alone Keypad with Proximity Card Reader

Features:

• 12~24 VAC/VDC operation
• 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
• 2 Form C relays, each rated 1 Amp @ 30VDC
• Each relay has programmable output time from 1~99 seconds or toggle
• Output #2 can be programmed for use with a doorbell
• 2 Egress inputs and 1 door sensor input
• Backlit keys for easy nighttime use
• Two multi-colored status LEDs
• Able to mount to a single-gang back box
• All features are programmed directly from the keypad – no need for an external programmer
• EEPROM memory protects programmed information in case of power loss
• Optical tamper for added security
• Circuitry is potted with epoxy for outdoor use
• IP65 Weatherproof rating, rugged aluminum construction
• Built-in proximity card reader
• 3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code
• Output #2 may have either a card or a code programmed for each user
