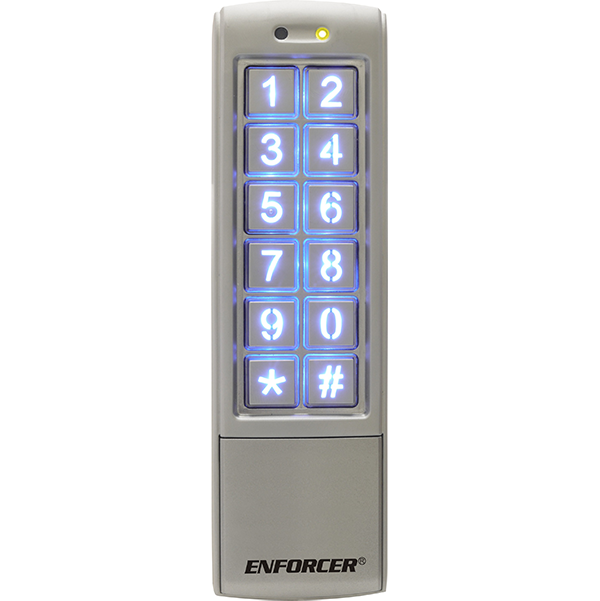

SECO-LARM - SK-2323-SPQ - Mullion-Style Outdoor Stand-Alone Keypad with Built-In Proximity Reader (125 kHz). Weatherproof (IP65). Backlit keys, 1,010 user codes, 2~6 digit code length, two relay outputs (Form C NO/NC/COM), two egress inputs, one door
Part number:
SK-2323-SPQ
Price:
Mullion-Style Digital Access Keypad – Adds Built-In Proximity Card Reader
Features:
- 12~24 VAC/VDC operation
- 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
- 2 Form C relays, each rated 1 Amp @ 30VDC
- Each relay has programmable output time from 1~99 seconds or toggle
- Output #2 can be programmed for use with a doorbell
- 2 Egress inputs and 1 door sensor input
- Backlit keys for easy nighttime use
- 2 Multi-colored status LEDs
- All features are programmed directly from the keypad – no need for an external programmer
- EEPROM memory protects programmed information in case of power loss
- Optical tamper sensor for added security
- Circuitry is potted with epoxy for outdoor use
- IP65 Weatherproof rating, rugged aluminum construction
- Built-in proximity card reader
- 3 Programmable access modes for Output #1: Card Only, Card or Code, and Card with Code
- Output #2 may have either a card or a code programmed for each user
| Type | Mullion-Style Weatherproof Digital Access Keypads |
| Number of User Codes | Up to 1,010 |
| Operating Voltage | 12~24 VAC/VDC |
| Current Draw – Standby | 64mA@12VDC |
| Current Draw- Active | 1 Relay active 92mA@12VDC 2 Relays active 120mA@12VDC |
| Relay Outputs (2) | 1A@30VDC, Form C, NO/COM/NC |
| IP Rating | Weatherproof IP65 |
| Egress Inputs | 2, N.O. Ground |
| Door Sensor Input | N.C. Ground |
| Tamper Sensor | Optical |
| Proximity Reader Frequency | 125kHz |
| Keypad LED Life | 60,000 hours (over 6.8 years) |
| Proximity Reader Sensing Distance | 1-15/16″ (50 mm) |
| Operating Temperature | -4°~122° F (-20°~50° C) |
| Dimensions | 6″ x 1-3/4″ x 15/16″ (152x44x24 mm) |
| Weight | 11-oz (312g) |
