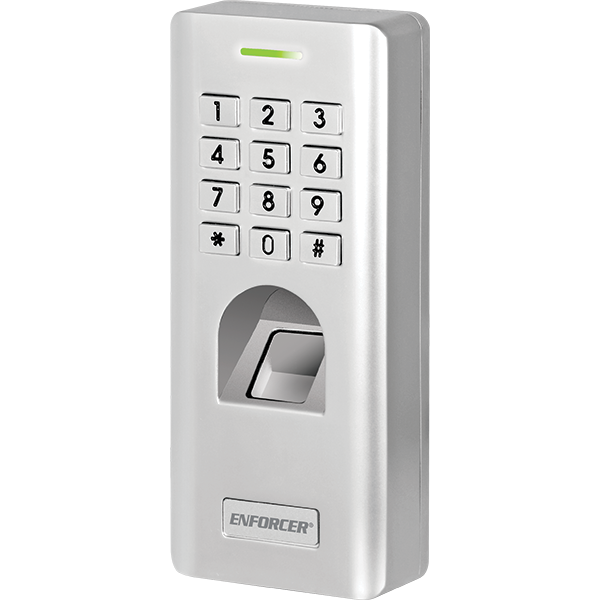

Fingerprint Reader and Keypad

Features:

• 500DPI Optical fingerprint reader
• Up to 3,000 users (up to 1,000 fingerprint users, up to 2,000 PIN users)
• User code length 4~6 digits
• Fingerprint identification time – ≤1 second
• Fingerprint false acceptance rate – ≤0.01%
• Fingerprint false rejection rate – ≤0.1%
• 12VDC Operation
• Form C relay output – 2A@12VDC
• Tamper alarm output – 2.5A@12VDC
• Adjustable relay output time – 100ms~99s, or toggle
• Weatherproof – IP66
• Illuminated fingerprint reader window
• 26~44 bit Wiegand output
• 2-Door interlock
