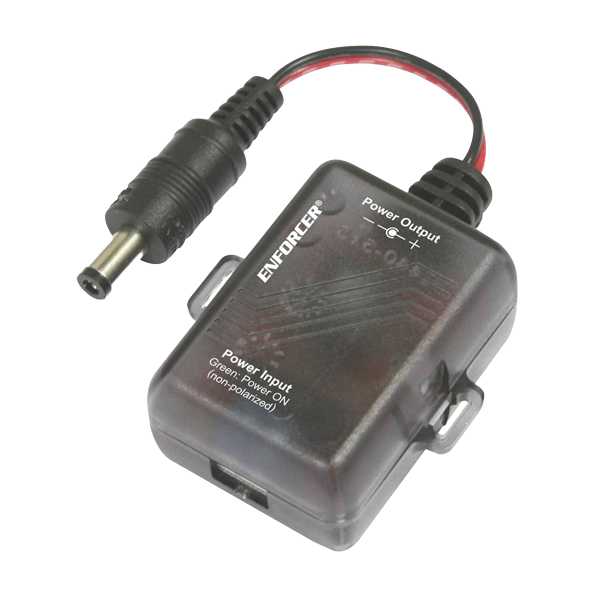

SECO-LARM - ST-LA115-TPQ - Power Converter, 1.5A@12VDC Output
Part number:
ST-LA115-TPQ
Price:

ENFORCER Power Converters “step down” voltage, converting low-voltage AC or DC into regulated DC outputs. These converters are useful for DC CCTV cameras, access controls, and many other applications where low-voltage DC output is required.



Features:

  • Three models available, providing varying degrees of low-voltage DC output
  • Built-in overload protection
  • Regulated and filtered output
  • Green LED indicates power input
  • 2.1mm DC Plug with pigtail for simple and quick installations
Input ConnectorTerminal block
Output Connector2.1mm DC Plug
Input Voltage18~28 VAC/VDC
Output Voltage12VDC
Current Draw1.5A
LED IndicatorsGreen: Power input
Current ProtectionBuilt-in
Overheat ProtectionBuilt-in
Overload ProtectionBuilt-in
Dimensions1-15/16″ x 1-7/16″ x 15/16″ (50 x 37 x 24 mm)
Name
Description
Size
Downloads
File
Datasheet
0.3mb
File
Manual
0.2mb
