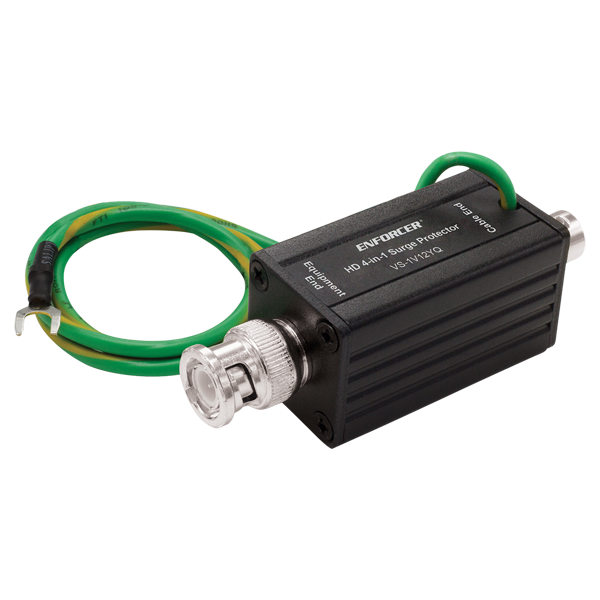

SECO-LARM - VS-1V12YQ - HD 4-in-1 Surge Protector
Part number:
VS-1V12YQ
Price:
The ENFORCER HD 4-in-1 Surge Protector is a passive device that helps protect sensitive HD and Analog CCTV equipment from power surges. The device can be deployed in new installations or existing ones.
Features:
- Helps prevent damage to sensitive HD-TVI, HD-CVI, HD-AHD, and Analog CCTV cameras, DVRs, and switches
- Intercepts repeated surges and spikes that could damage HD-TVI, HD-CVI, HD-AHD, and Analog CCTV equipment
- Passive operation – no external power required
- Includes a 16″ grounding wire for convenient connection to ground
| Bandwidth | Up to 270MHz |
| Maximum Input | 6Vp-p |
| Insertion Loss | 0.8dB@42MHz |
| Return Loss | 16dB |
| Frequency Response | Up to 3dB@10MHz |
| Insulation Resistance | 10,000MΩ |
| Discharging Current | 15kV |
| Maximum Surge Voltage | 4kV |
| Surge Life | 300 surges@200A |
| Surge Protection | <1ns |
| Surge Resistance | 0Ω |
| Connector- In | BNC Male (75Ω) |
| Signal Passing Capability | Breakdown voltage: 6V, Clamping voltage: 25V |
| Connector- Out | BNC Female (75Ω) |
| Impedance | ~75Ω (BNC-to-BNC) |
| Cable Length | 15-3/4″ (400mm) |
| Material | Aluminum |
| Operating Temperature | -40°~194° F (-40°~90° C) |
| Dimensions | 3-1/8″x1″x1″ (79x25x25 mm) |
| Weight | 2.3-oz (65g) |
