802.3bt PoE++ PoE Injector

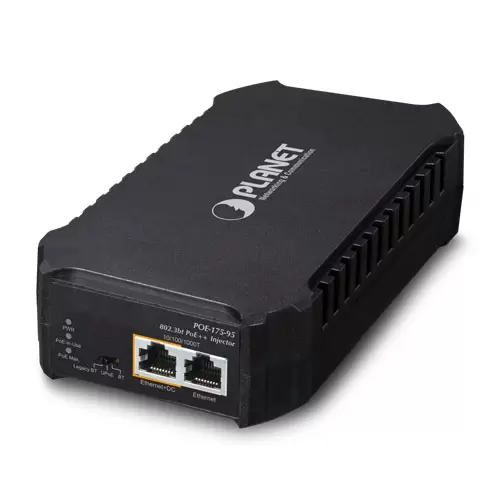

PLANET’s POE-175-95 is a Single-Port, 802.3bt Power over Ethernet Injector with a maximum of up to 95 watts of power output over Ethernet cables.

It is designed specifically to meet the demand for growing higher power required network equipment such as:

• PTZ speed dome camera
• All-in-one touch PC
• Remote digital signage display
• Other network devices that need higher power to work normally

The POE-175-95 delivers Ethernet digital data with 54V DC power over the twisted-pair cables as a 95-watt Power over Ethernet Injector. When connected to the POE-172S, ultra Power over Ethernet splitter, it will separate digital data and power into three optional outputs (12V/19V/24V DC) with maximum distance of up to 100 meters.

95 watts of Power over 4-pair UTP

Instead of delivering power over 2-pair twisted UTP, be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 95 watts of power by using all the four pairs of standard Cat. 5e/Cat. 6 Ethernet cabling.

Intelligent LED Indicator for Real-time PoE Usage

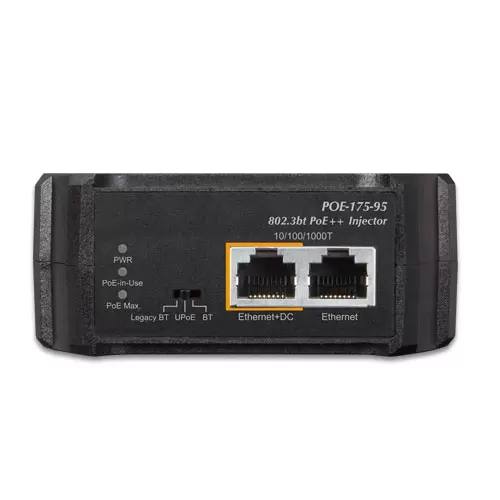

The POE-175-95 helps users monitor the current status of PoE power usage easily and efficiently via its advanced LED indication. PoE Power Usage displayed on the front panel of the POE-175-95 has three LED indicators of different power usages. Via the power usage LED, the POE-175-95 enables the administrator to monitor the status of the power usage of the connected PDs in real time.

All-in-One and Compact Size Design

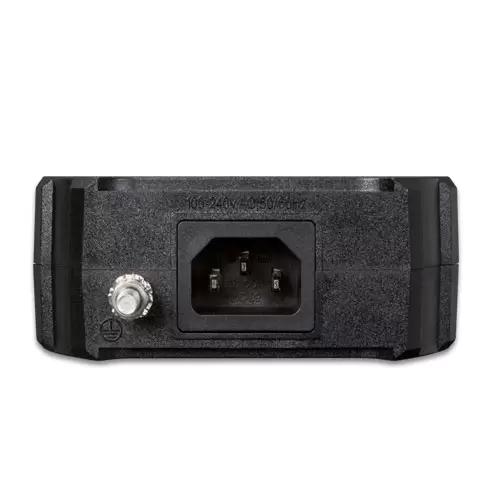

The PoE injectors ‘Plug and Play’ functionality is easy to install and comes with simple troubleshooting, making it easy for business and home users to own it. The POE-175-95 comes in compact housing, and has a built-in internal power supply. The side panel of the POE-175-95 features one 100-240V AC input socket, real-time LEDs (Power LED, PoE Usage LED and 2-/4-pair LED) and two RJ45 ports (Ethernet port and Ethernet+DC port). Simply plug in the Ethernet cables and AC power cord, and the POE-175-95 is ready to provide high-speed network communication and 802.3bt PoE++ injector functions simultaneously with no need of software configuration.

Quick and Easy Cabling Installation for PoE Network Deployment

Backward compatible with both 802.3af/at PoE standards, the POE-175-95 allows users to flexibly deploy standard and high powered devices to transfer data and power simultaneously through one Ethernet cable for up to 100 meters. The POE-175-95 frees the security IP camera and wireless AP deployment from restrictions of power outlet locations and the additional AC wiring. It thus reduces cables and eliminates the need for electrical outlets on the wall, ceiling or any unreachable place, and most of all, it reduces installation time. The POE-175-95 is a Single-Port, 802.3bt PoE++ Injector with a maximum of up to 95 watts of power output over Ethernet cables with internal power.

Features:

• Interface: 1 x RJ-45 STP Data In, 1 x RJ-45 STP PoE Out, 1 x AC input socket
• Output Voltage: 54V DC
• Standard: 802.3bt (Type 4)
• Power Requirement: 100-240V AC, 1.5A max.
• Power Consumption: 120W max.
• Ethernet Data Rate: 10/100/1000Mbps
• End-Span/Mid-Span: End-Span + Mid-Span
• Operating Temperature: 0 to 50°C
• TAA Compliant
