Quick and Easy Gigabit Ultra PoE Network Deployment

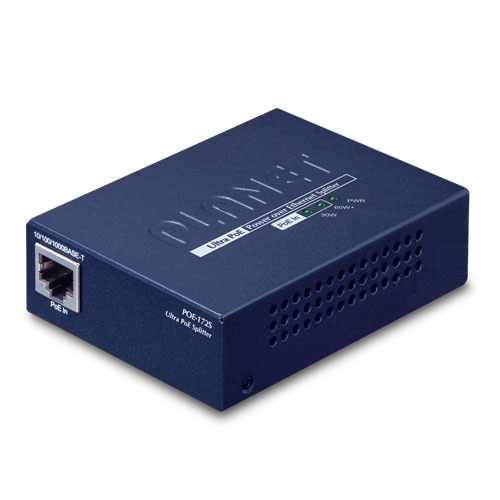

PLANET’s POE-172S Gigabit ultra Power over Ethernet splitter, meeting the IEEE 802.3at/af standard with 802.3bt ready, delivers Ethernet digital data and ultra PoE power over twisted-pair cables to network devices. It separates the digital data and the power into three optional outputs (12V/19V/24V DC) and supports a transmission distance of up to 100 meters. When working with PLANET’s 802.3bt Ultra PoE switches or Injectors, the POE-172S offers more PoE applications to client devices, such as:
- Thin Client
- PoE PTZ speed dome camera
- AIO (All-in-One) touch PC
- Remote digital signage display
- Network devices that need higher PoE power to work normally
The POE-172S has no restrictions due to power outlet locations, thus eliminating the costs for additional AC wiring and reducing the installation time.
Innovative, Selectable DC Power Output Voltage

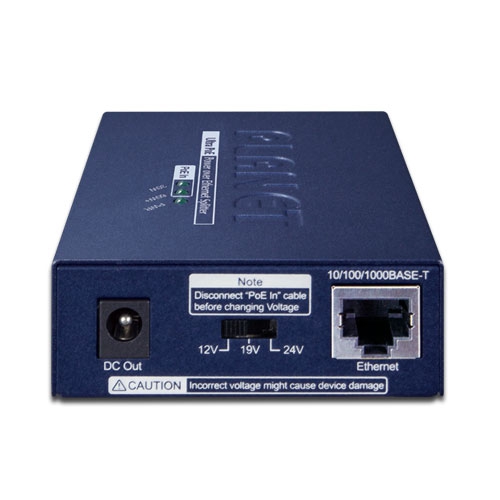

Via the innovative 12V/19V/24V DIP switch on the front panel, the POE-172S can supply either 24V DC power to industrial equipment or 12V/19V DC output to the common network devices. It highly increases the flexibility of the product applications.
Ultra PoE Power over 4-pair UTP Cable
The POE-172S and 802.3bt Ultra PoE switches use cables that meet the IEEE 802.3bt/at/af standard. Instead of delivering power over 2-pair twisted UTP cable, end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), they are able to transmit ultra PoE power and data by using all the four pairs of standard Cat5e/6 Ethernet cabling.
Environment-friendly
The POE-172S comes with a compact-sized metal housing allowing for convenient placement of the unit. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Moreover, the POE-172S is able to operate reliably and stably without affecting its performance. The deployment of non-PoE equipment with constant power feeding can be done quickly and easily.
The POE-172S Gigabit ultra Power over Ethernet splitter, Ultra PoE 802.3bt Ready IEEE 802.3at, delivers Ethernet digital data and ultra PoE power over twisted-pair cables to network devices.
Features:
- Interface: 1 x 10/100/1000T RJ-45, 1 x 10/100/1000T PoE Input
- DC Output Voltage: 12V/19V/24V
- Standard: 802.3bt (Type 4)
- Ethernet Data Rate: 10/100/1000Mbps
- Operating Temperature: 0 to 50°C
- TAA Compliant
| Hardware Specifications | |
| Interface | Ethernet 1 x 10/100/1000BASE-T RJ45, Ethernet data output portPoE in 1 x 10/100/1000BASE-T RJ45, PoE power input port |
| DIP Switch | 12V/19V/24V DC output |
| Power Socket | DC receptacle 2.5mm |

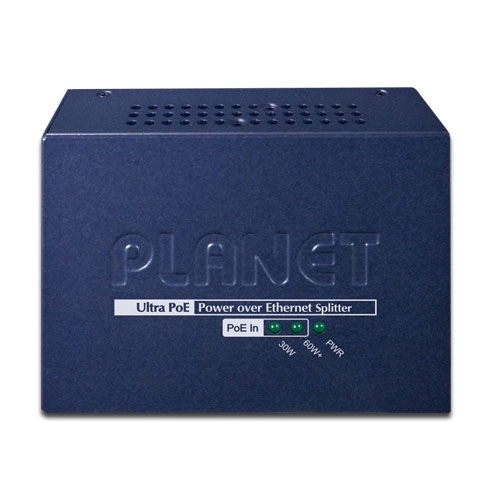

| LED Indicator | System: Power x 1 (Green) PoE-in-use x 2 (Green) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 94 x 70.3 x 26.2 mm |
| Weight | 300g |
| Installation | Desktop/wall mountable |
| Enclosure | Metal case |
| Power Requirements | 50~56V DC PoE |
| Unit Output Current (at 56VDC Input) | 75-watt PoE input
|
| Power Consumption | Ethernet full loading without DC output: 3.7 wattsFull loading with maximum 12V DC, 5A output: 75 watts |
| Network Cable | Ultra PoE (60W+) 4-pair UTP Cat. 5, 5e, 6, up to 100m (328ft)802.3af/at PoE (15W/30W) 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) |
| Power over Ethernet | |
| PoE Standard | 802.3bt Type 3/Type 4 Power over Ethernet 4-pair 802.3at PoE+ and Cisco UPOE compliant with voltage within 50V-56V DC |
| Power Output | DC 12V/19V/24V by DIP switch control |
| PoE Power Supply Type | End-span + Mid-span End-span Mid-span |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
| Regulatory Compliance | FCC, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 90%, non-condensing |
| Storage Humidity | 5 ~ 90%, non-condensing |
| Standard Accessories | |
| Package Contents | One 15cm UTP straight network cable
|
