Ultra PoE Splitter
The POE-171S from Planet Technology is a state-of-the-art Gigabit Power over Ethernet splitter that sends digital Ethernet data utilizing DC 56V power. The unit uses twisted pair cables and operates according to IEEE 802.3at/af standards. The POE-171S simply splits data and the power into three outputs (12V / 19V /24V DC) up to a distance of 100 meters. If the POE-171S is paired with the POE-171 PoE injector from Planet Technology, it can provide the following additional PoE applications:
- PoE PTZ Speed Dome
- Other Network devices that need higher PoE power to work normally
- Thin-client
- AIO(All-in-One) touch PC
- Remote digital signage display
The POE-171S allows devices to be free from restrictions that arise from dedicated power outlets. The unit also makes it simple to save since it removes the need for AC wiring. The POE-171S utilizes standard cabling as IEEE 802.3at/af PoE. The unit offers users the ability to source up to 50 watts of power by utilizing all the four pairs of standard Cat5e/6 Ethernet cable. The PSE controllers are used to power the data and spare pairs.
Affordable Cabling Solution
With IEEE 802.3at Gigabit high PoE devices installed, users only need to install a RJ-45 Ethernet cable to carry power and data from a IEEE 802.3at/af PoE injector to the POE-171S. The unit operates efficiently to split data and DC power IP networking devices. In addition, users save time and money with the unit’s ability to make installation and reliability even simpler. When IEEE 802.3at compliant devices are installed, the POE-171S operating with the POE-171, can connect and migrate and split power and Ethernet digital packets at the same time.
The POE-171S from Planet Technology is a state-of-the-art Gigabit Power over Ethernet splitter that sends digital Ethernet data utilizing DC 56V power.
Features:
- Interface: 2 x RJ-45, 1 x DC jack
- DC Output Voltage: 12V/ 4A, 19V/ 2.6A, 24V/ 2A
- Standard: 802.3bt Ready (Ultra PoE)
- Power Input: 52~56VDC
- Ethernet Data Rate: 10/100/1000Mbps
- End-Span/Mid-Span: End-Span + Mid-Span
- Operating Temperature: 0 to 50°C
- TAA Compliant
| Hardware Specifications | |

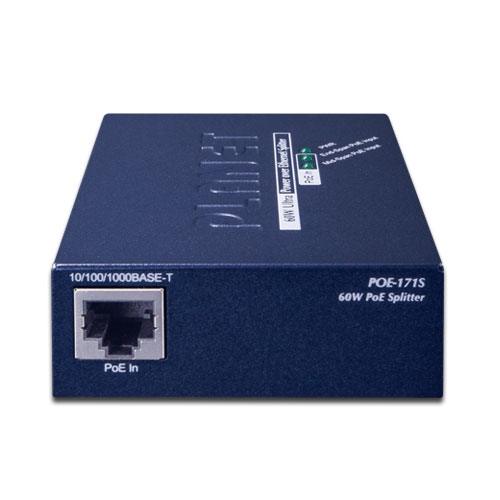

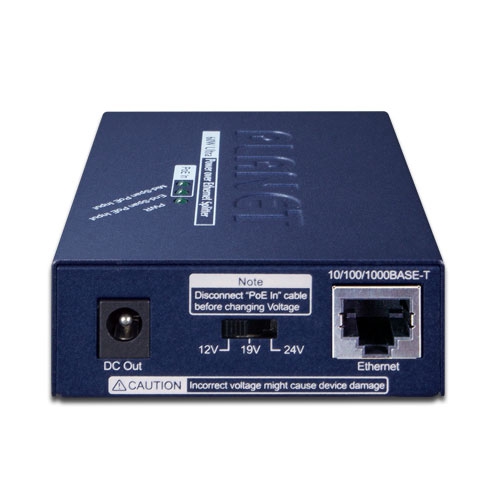

| Interface | Input Port – 1 x RJ-45 STP – PoE (Data + Power) In Output Port – 1 x RJ-45 STP – Data Out DC Socket – DC Out DIP-Switch – 12V DC/19V DC/24V DC output voltage |

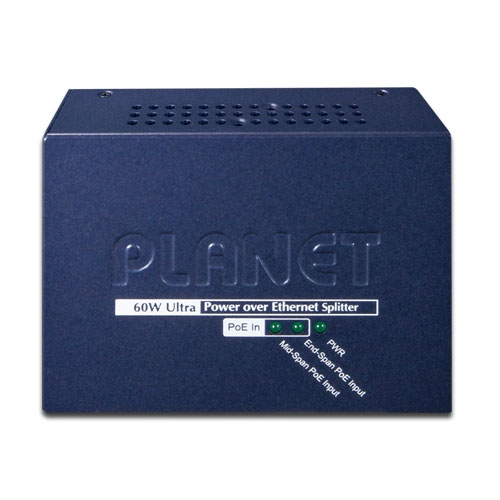

| LED Indicator | System: Power x 1 (Green) |
| Network Cable | Ultra PoE (60W): 10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft) 802.3af / at PoE (15W / 30W): 10/100/1000Base-T: 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m (328ft) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 95 x 70 x 26 mm |
| Weight | 300g |
| Power Requirements | 52 ~ 56V DC |
| Power Consumption | 50 watts (maximum) |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Humidity | 5 ~ 95% (Non-condensing) |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus |
| Power Output | DC 12V/19V/24V by DIP switch control |
| PoE Power Supply Type | End-Span + Mid-Span |
| Power Pin Assignment | Pair 1: 1/2(-), 3/6(+) Pair 2: 4/5(+), 7/8(-) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
