ELK - 130 - Siren Driver; High Powered, Two-Channel, 12-24vdc and 1-ohm
Part number:
130
Price:

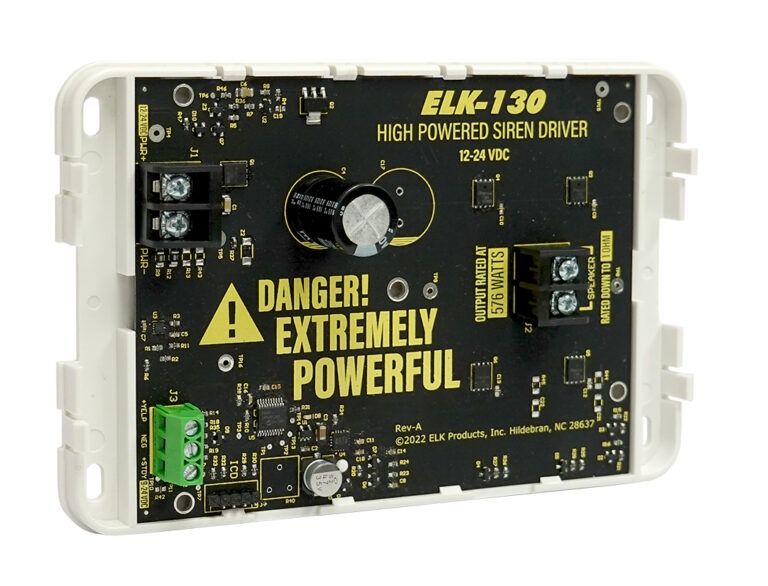

The ELK-130 is an exceptionally loud, industrial grade siren driver utilizes an intense sweeping yelp sound. With its wide operating voltage range, loudness, and the capability of powering from one source while being triggered from another, the ELK-130 is like no other loud siren. This unique driver is ideal for security, early warning, crowd protection, and many other applications.



Features:

  • Extremely Powerful - Over 500 Watt Output
  • Intensely Loud, Attention Getting Sound
  • 2 Sounds - Yelp or Steady
  • Heavy duty terminals for power input and speaker output to accomodate larger wire gauges
  • Includes fused, dual connection battery wires (ELK-W120) to allow connection of back-up battery to control and driver power terminals
  • Mounted inside ELK-PB1 plastic enclosure
  • Lifetime Limited Warranty



Whats Included:

  • ELK-130 High Powered Siren Driver
  • Plastic Housing
  • (4) plastic wall anchors and (4) #6 pan head sheet metal screws
  • Instructions
Output130 db @ 1 meter, 24VDC
Trigger Voltage9-24 VDC
Operating Voltage12-24 Volts DC
Speaker LoadRated down to 1 Ohm
size5.13” x 4” x 1.06”
Enclosure Size6.5" W x 4.375"H x 2"D, White PlasticOutput: 130 db @ 1 meter, 24VDC
