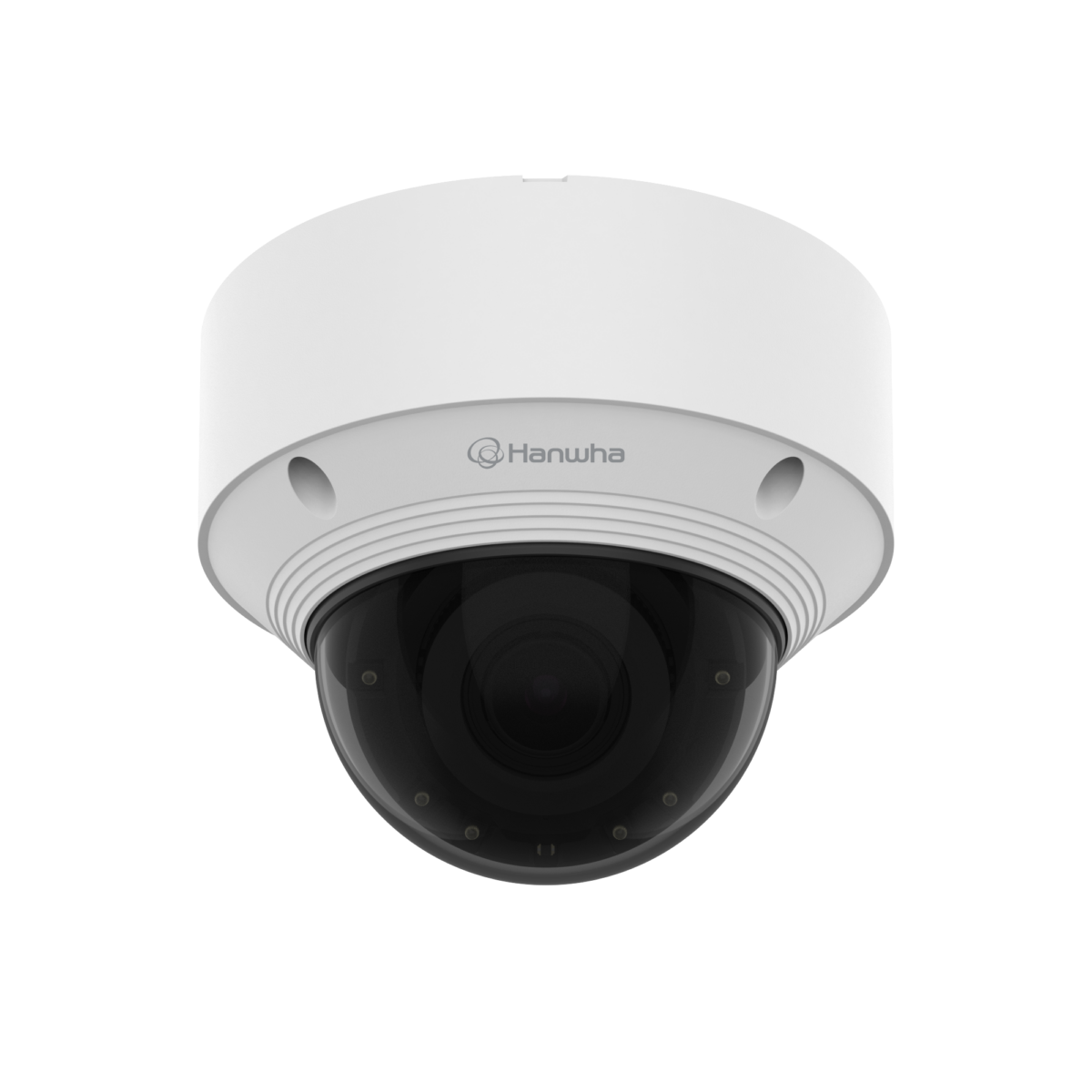

Hanwha - SPB-VAN82W - Smoked Dome Cover
Part number:
SPB-VAN82W
Price:
Smoke Dome for Q AI V/F Compatible with QNV-C6083R/C8083R/C9083R
Features:
• Color : Base Top - White / Cover Glass - Transparent smoked
• Material : Base Top - Aluminum / Cover Glass - Polycarbonate (PC)
• Product dimensions / weight : ø140x110.2mm(ø5.51x4.34") / 420g (0.93lb)
| Specification | |
| Mechanical | |
| Color | Base Top : White, Cover Glass : Transparent smoked |
| Material | Base Top : Aluminum, Cover Glass : Polycarbonate (PC) |
| RAL code | RAL9003 |
| Product dimensions / weight | ø140x110.2mm(ø5.51x4.34") / 420g (0.93lb) |
| Mount Screw size | TR20 |
| Supported products | QNV-C8083R/C9083R, ※ When using this model, minimum illumination (color) will be 0.1Lux as specification |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
File
Manual
0.6mb
