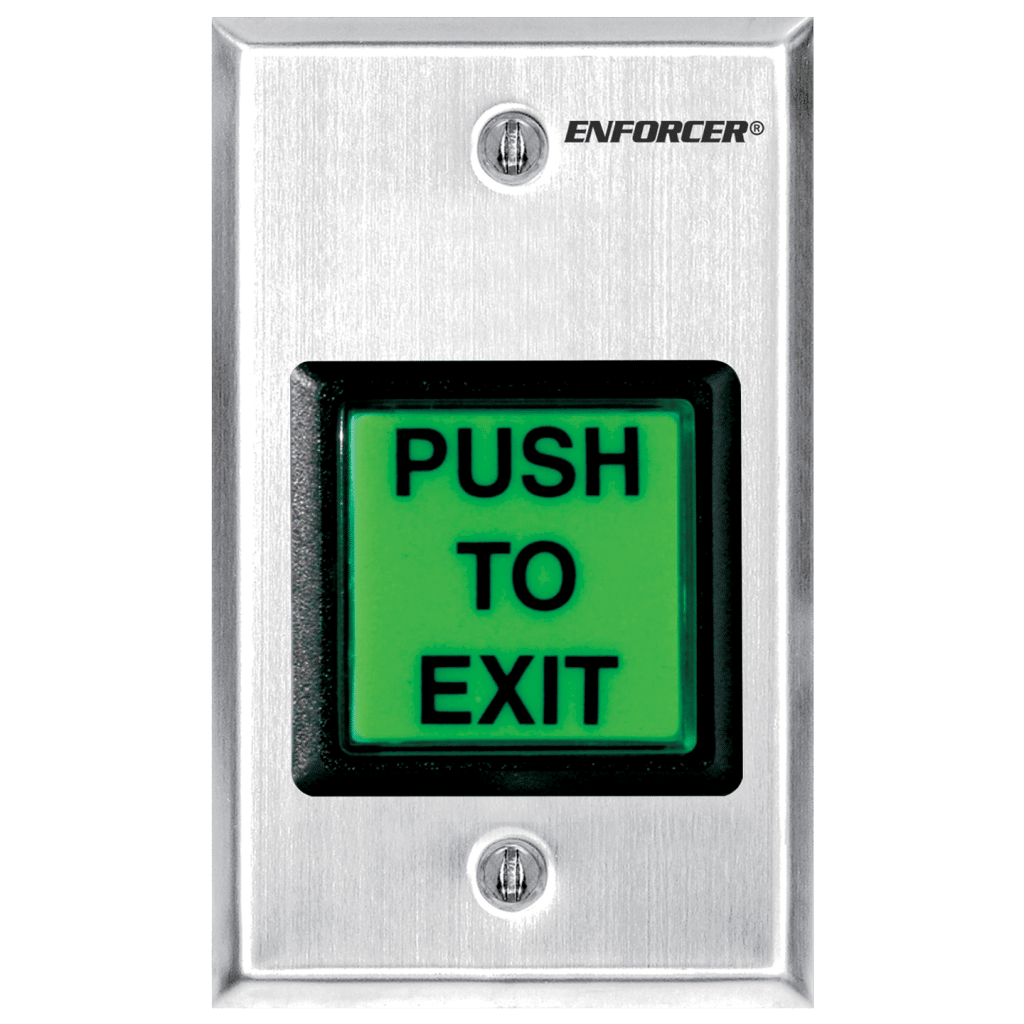

SECO-LARM - SD-7202GC-PEQ - Illuminated green 2" square "PUSH-TO-EXIT" button. Can replace with included "PRESIONE PARA SALIR" message. SPDT switch, 10A@125~250VAC. Stainless-steel single-gang plate. ETL Listed. Conforms to UL Std. 294
Part number:
SD-7202GC-PEQ
Price:
Illuminated green 2" square "PUSH-TO-EXIT" button. Can replace with included "PRESIONE PARA SALIR" message. SPDT switch, 10A@125~250VAC. Stainless-steel single-gang plate.
Features:
- Large illuminated pushbutton with caption “PUSH TO EXIT“
- Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates
- Pushbutton rated 50A@24VAC
- Includes five colored 12-inch wire leads with easy-to-attach spade lugs for fast installation
- LED Gives over 50,000 hours of illumination
- 12~24 VDC: No resistors required
- Includes stainless-steel single-gang plate
| Operating Voltage | 12~24VDC |
| Current rating | 50A@24VAC |
| Operating Temperature | -40°~167° F (-40°~75° C) |
| Material | Brushed stainless |
| Dimensions | 4-1/2” x 2-3/4” x 2-3/4” (114 x 70 x 70 mm) |
| Weight | 3.7-oz (105g) |
