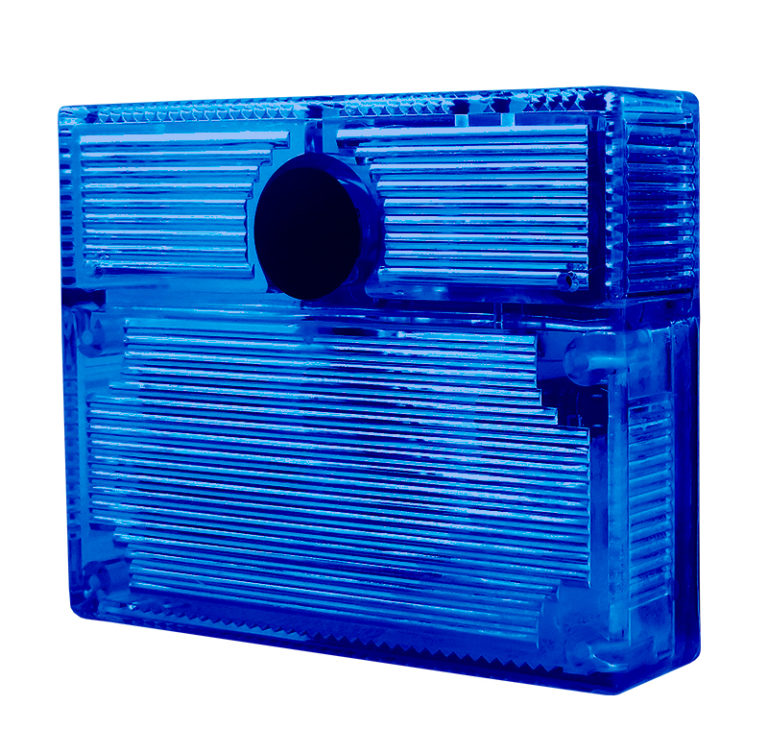

ELK - SL1B - Strobe Light, Blue Lens
Part number:
SL1B
Price:

The ELK-SL1B is a weather resistant strobe light designed for easy attachment to ELK’s stainless steel speaker and siren units. An optional wall kit (ELK-WK1) allows the strobe to be mounted to a wall or to single or double gang electrical boxes.



The attractive SL1 features simple 12 Volts DC two-wire hookup, low current draw, and compatibility with virtually all 12 volt control panels (including pulsing alarm outputs). The ELK-SL1 is molded from virtually indestructible polycarbonate, such as Lexan, and is available in clear, amber, blue, and red.



Features:

  • Indoor / Outdoor
  • Durable Polycarbonate
  • Easy to Install: Simple 2 Wire Hookup
  • Works with pulsing alarm outputs
Specifications
Operating Voltage12 Volts DC
Current Draw10-300mA, 210mA Nominal
Flash RateApprox. 1 Flash per second
Candela Rating15cd
Size4.875" x 3.875" x 1.125"
ColorClear, Red, Blue, or Amber
LifetimeLimited Warranty
Name
Description
Size
Downloads
File
Datasheet
1.2mb
File
Instructions
0.3mb
