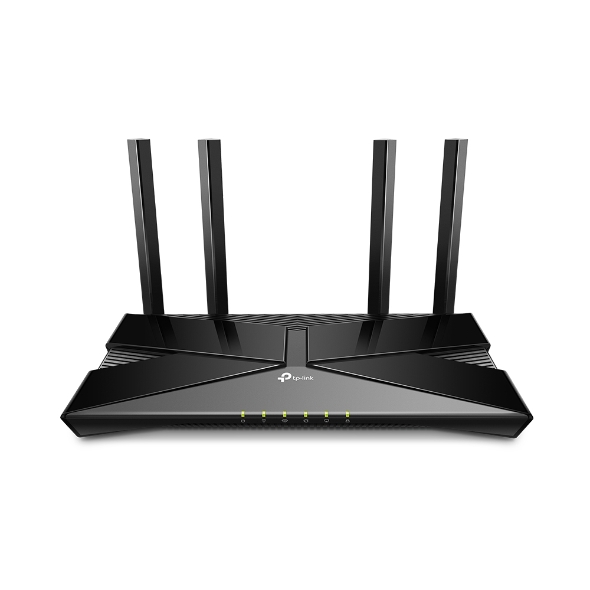

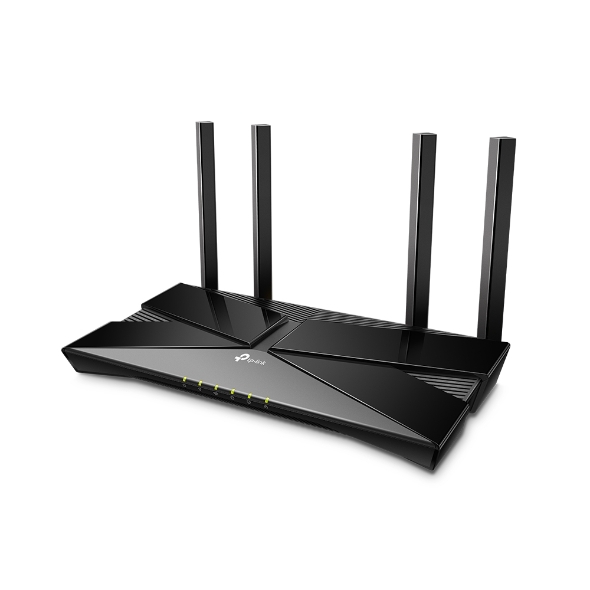

TP-Link - ARCHER AX10 - AX1500 Wi-Fi 6 Router
Part number:
ARCHER AX10
Price:

Wi-Fi 6 delivers a huge boost in speed and total capacity. Get on the latest WiFi technology to wipe out all the annoying slowdown, and enjoy the future network that loads faster and connects more.



Features:

  • Wi-Fi 6 Technology—Archer AX10 comes equipped with latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity and reduced network congestion.2 6
  • Next-Gen 1.5 Gbps Speeds—Archer AX10 dual-band router reaches fast speeds up to 1.5 Gbps (1201 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)1
  • Connect More Devices than Ever Before—Wi-Fi 6 technology simultaneously communicates more data to more devices using OFDMA and MU-MIMO while reducing lag.3 5
  • Triple-Core Processing—The 1.5 GHz tri-core processor ensures communications between your router and all connected devices are smooth and buffer-free.
  • More Reliable Coverage—Achieve the strongest, most reliable WiFi coverage with Archer AX10 as it focuses signal strength to your devices using Beamforming technology and 4 antennas.
  • Increased Battery Life—Target Wake Time technology reduces your devices' power consumption to extend their battery life.4
  • Easy Setup—Set up your router in minutes with the powerful TP-Link Tether App
  • Backward Compatible—Archer AX10 supports all previous 802.11 standards and all WiFi devices
WIRELESS
StandardsWi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11n/b/g 2.4 GHz
WiFi SpeedsAX1500
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 300 Mbps (802.11n)
WiFi Range2-3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
WiFi CapacityHigh
Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth
Working ModesRouter Mode
Access Point Mode
HARDWARE
Processor1.5 GHz Triple-Core CPU

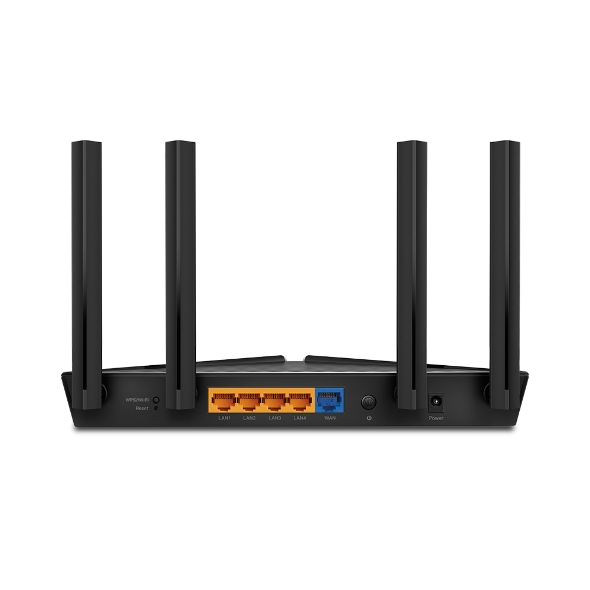

Ethernet Ports1× Gigabit WAN Port
4× Gigabit LAN Ports
ButtonsWPS/Wi-Fi Button
Power On/Off Button
Reset Button
Power12 V ⎓ 1 A
SECURITY
WiFi EncryptionWPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network SecuritySPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
Guest Network1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN ServerOpenVPN
PPTP
SOFTWARE
ProtocolsIPv4
IPv6
OneMesh™OneMesh™ Supported
Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh™ helps you create a more flexible network that covers your entire home with TP-Link OneMesh™ products.
Parental ControlsURL Filtering
Time Controls
WAN TypesDynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of ServiceQoS by Device
Cloud ServiceAuto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT ForwardingPort Forwarding
Port Triggering
DMZ
UPnP
IPTVIGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCPAddress Reservation
DHCP Client List
Server
DDNSTP-Link
NO-IP
DynDNS
ManagementTether App
Webpage
OTHER
System RequirementsInternet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)
CertificationsFCC
EnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
TEST DATA
WiFi Transmission PowerFCC:
<30dBm(2.4 GHz & 5.15 GHz~5.825 GHz)
WiFi Reception Sensitivity5 GHz:
11a 6Mbps:-97dBm
11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm
11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm
11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm
11ac VHT80_MCS11:-60dBm
11ax HE20_MCS0:-95dBm
11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm
11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm
11ax HE80_MCS11:-58dBm
2.4 GHz:
11g 6Mbps:-91dBm
11a 54Mbps:-74dBm
11n HT20_MCS0:-90dBm
11n HT20_MCS7:-73dBm
11n HT40_MCS0:-88dBm
11n HT40_MCS7:-70dBm
PHYSICAL
Dimensions (W×D×H)10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)
Package ContentsWi-Fi Router Archer AX10
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
