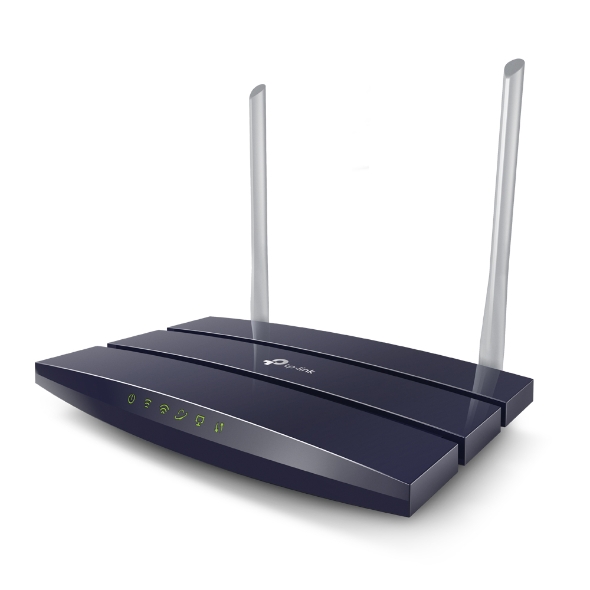

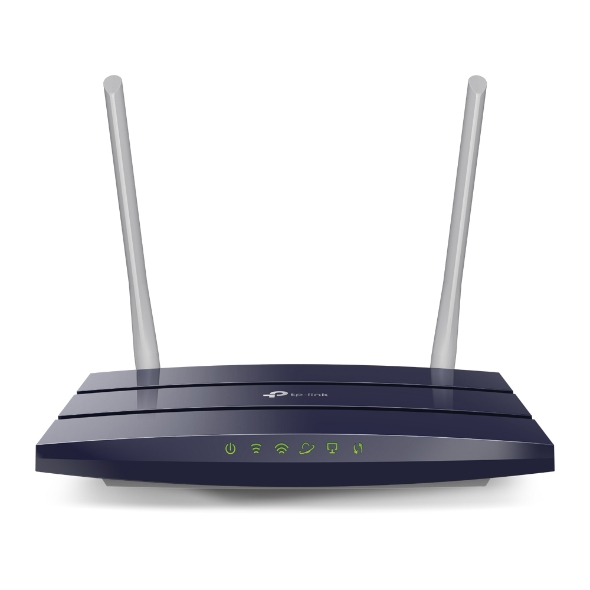

TP-Link - ARCHER C50 - AC1200 Wireless Dual Band Router
Part number:
ARCHER C50
Price:
The Archer C50 lets your PC or laptop enjoy connections much faster than Wireless N with Wireless AC technology. With 300Mbps over the 2.4GHz band and 867Mbps over the crystal clear 5GHz band, the Archer C50 is the superior choice for seamless HD streaming, online gaming, and other bandwidth-intensive tasks.
Features:
- Supports 802.11ac standard
- Simultaneous 2.4GHz 300 Mbps and 5GHz 867 Mbps connections for 1200 Mbps of total available bandwidth*
- 2 external antennas provide stable wireless connections and optimal coverage
- Easy network management at your fingertips with TP-Link Tether
- Supports IGMP Proxy/Snooping, Bridge and Tag VLAN to optimize IPTV streaming
- Supports Access Point mode to create a new Wi-Fi access point
| HARDWARE FEATURES | |

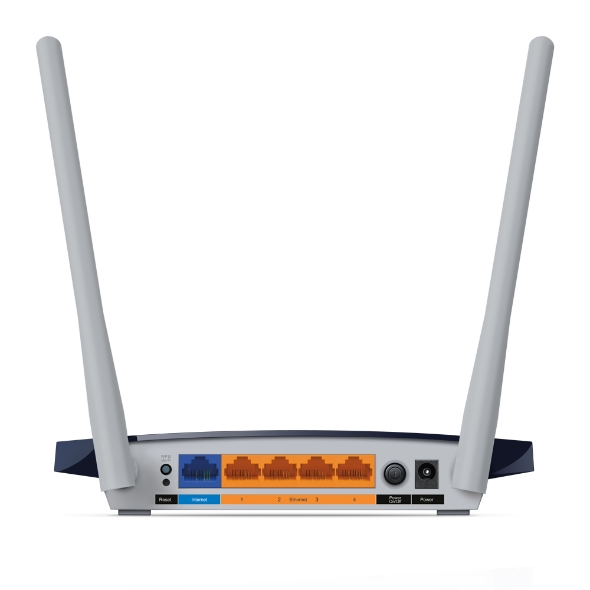

| Interface | 4x10/100 Mbps LAN Ports 1x10/100 Mbps WAN Port |
| Power Supply | 12VDC/1.0A |
| Wireless Standards | IEEE 802.11n/g/b 2.4GHz IEEE 802.11ac/n/a 5GHz |
| Dimensions ( W x D x H ) | 9.1 x 5.7 x 1.4 in. (230.0 * 144.0 * 35.0 mm) |
| Antenna Type | 4 External Antennas |
| WIRELESS FEATURES | |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 2.4GHz: Up to 300Mbps 5GHz: Up to 867Mbps |
| Reception Sensitivity | 5GHz: 11a 54M: -73dBm; 11ac VHT20 MCS8: -66dBm; 11ac VHT40 MCS9: -61dBm; 11ac VHT80 MCS9: -58dBm. 2.4GHz: 11g 54M: -75dBm; 11n HT20 MCS7: -73dBm; 11n HT40 MCS7: -70dBm |
| Transmit Power | CE: <20dBm(2.4GHz), <23dBm(5GHz) FCC: <30dBm |
| Wireless Functions | Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics |
| Wireless Security | Provides WPA/WPA2 and WPA-PSK/WPA2-PSK authentication and TKIP/AES encryption security Provides 64/128-bit WEP encryption security. |
| SOFTWARE FEATURES | |
| Quality of Service | WMM, Bandwidth Control |
| WAN Type | Dynamic IP, Static IP, PPPoE, L2TP, PPTP |
| Management | Access Control, Local Management, Remote Management |
| DHCP | Server, Client, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| Access Control | Parental Control, Local Management Control, Host list, Access Schedule, Rule Management |
| Protocols | IPv4 and IPv6 |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | AC1200 Wireless Dual Band Gigabit Router Power Adapter Quick Installation Guide RJ45 Cable |
| System Requirements | Microsoft Windows 10/8.1/8/7/Vista/XP/2000/NT/98SE, MAC OS, NetWare, UNIX or Linux |
| Environment | Operating Temperature: 0℃–40℃ (32℉–104℉) Storage Temperature: -40℃–60℃ (-40℉–140℉) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
