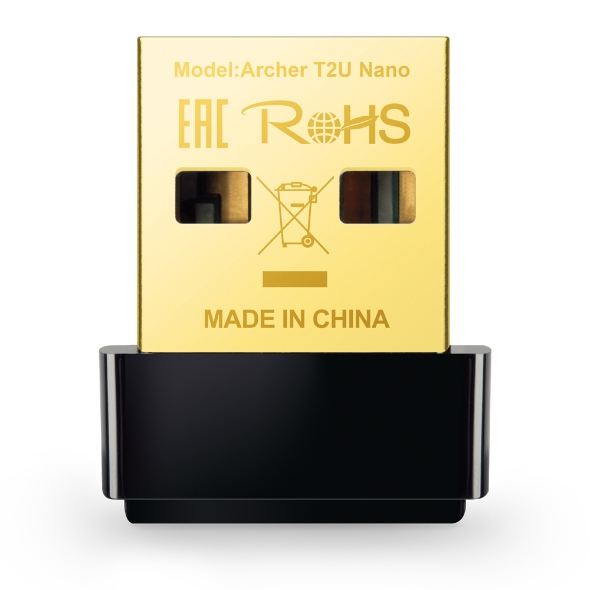

TP-Link - ARCHER T2U NANO - AC600 Nano Wireless USB Adapter
Part number:
ARCHER T2U NANO
Price:
The Archer T2U Nano receives WiFi signals on two separate bands. 256QAM technology increases the 2.4 GHz data rate from 150 Mbps to 200 Mbps for 33% faster performance. 433 Mbps on 5 GHz is perfect for HD video streaming and lag-free online gaming, while 200 Mbps on 2.4 GHz is perfect for web surfing with legacy devices.
Features:
- High Speed WiFi – Up to 600 Mbps speeds with 200 Mbps on 2.4 GHz and 433 Mbps on 5 GHz. Upgrades your devices to higher AC WiFi speeds*
- Dual Band – 2.4 GHz and 5 GHz band for flexible connectivity, upgrade your devices to work with the latest dual band WiFi router for faster speed and extended range.
- Nano Design – Small, unobtrusive design allows you to plug it in and leave it in
- Operating System – Supports Windows 11/10/8.1/8/7/XP and Mac OS X **
- Advanced Security – Supports 64/128-bit WEP, WPA/WPA2, and WPA-PSK/WPA2-PSK encryption standards
| HARDWARE FEATURES | |
| Interface | USB 2.0 |

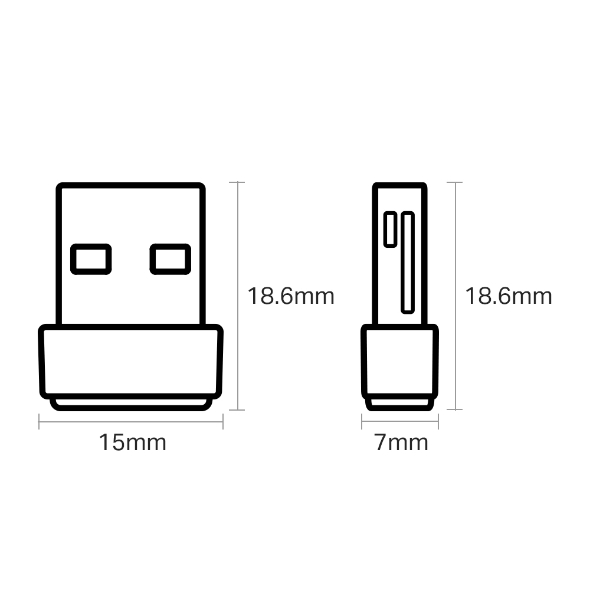

| Dimensions ( W x D x H ) | 15*7.1*18.6mm |
| Antenna Type | Omni Directional |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac, IEEE 802.11a, |
| IEEE 802.11n, IEEE 802.11g, IEEE 802.11b | |
| Frequency | 5GHz |
| 2.4GHz | |
| Signal Rate | 5GHz |
| 11ac: Up to 433Mbps(dynamic) | |
| 11n: Up to 150Mbps(dynamic) | |
| 11a: Up to 54Mbps(dynamic) | |
| 2.4GHz | |
| 11n: Up to 200Mbps(dynamic) | |
| 11g: Up to 54Mbps(dynamic) | |
| 11b: Up to 11Mbps(dynamic) | |
| Reception Sensitivity | 5GHz： |
| 11a 6Mbps: -90dBm | |
| 11a 54Mbps: -73dBm | |
| 11n HT20 MCS0: -89dBm | |
| 11n HT20 MCS7: -70dBm | |
| 11n HT40 MCS0: -86dBm | |
| 11n HT40 MCS7: -67dBm | |
| 11ac VHT80 MCS0: -82dBm | |
| 11ac VHT80 MCS9: -56dBm | |
| 2.4GHz: | |
| 11b 1Mbps: -96dBm | |
| 11b 11Mbps: -88dBm | |
| 11g 6Mbps: -89dBm | |
| 11g 54Mbps: -74dBm | |
| 11n HT20 MCS0: -89dBm | |
| 11n HT20 MCS7: -72dBm | |
| 11n HT40 MCS0: -86dBm | |
| 11n HT40 MCS7: -66dBm | |
| Transmit Power | <20dBm (EIRP) |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| OTHERS | |
| Certification | CE, FCC, RoHS |

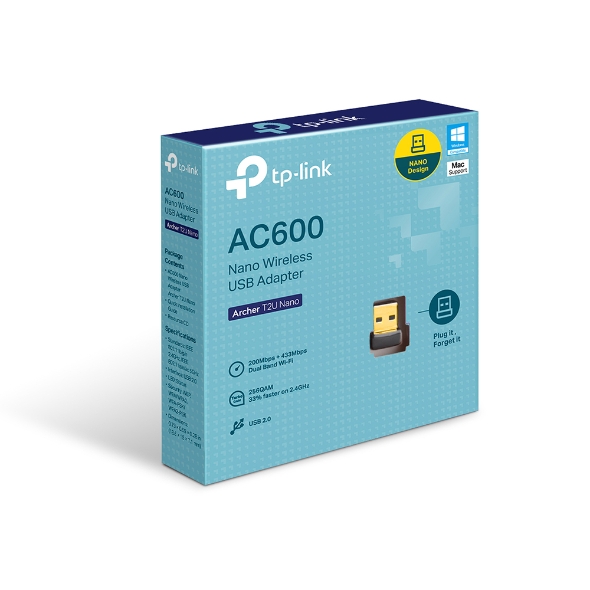

| Package Contents | AC600 Nano Wireless USB Adapter Archer T2U Nano |
| Resource CD | |
| Quick Installation Guide | |
| System Requirements | Windows 11/10/8.1/8/7/XP (32/64bits), |
| Mac OS X 10.9-10.14 | |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
