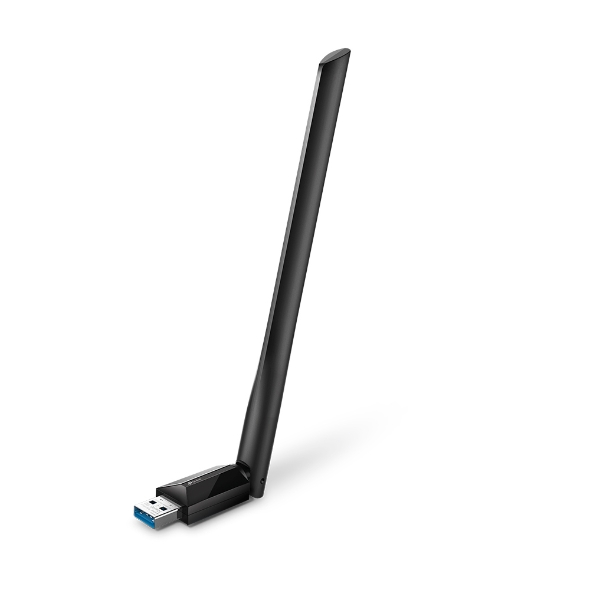

TP-Link - ARCHER T3U PLUS - AC1300 High Gain Wireless Dual Band USB Adapter
Part number:
ARCHER T3U PLUS
Price:

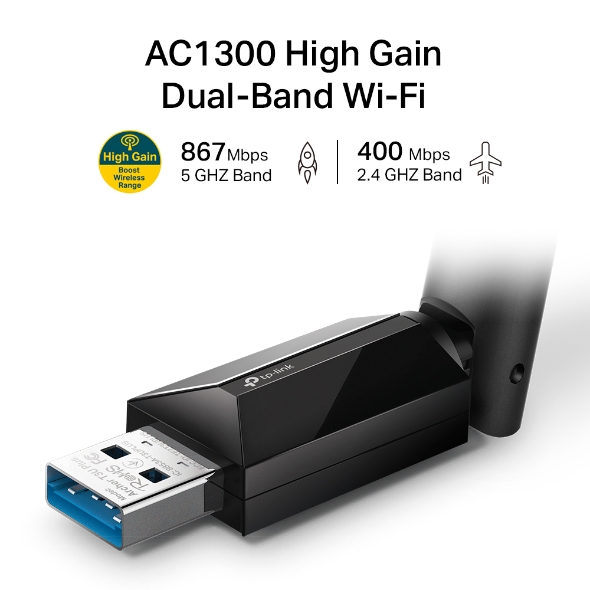

The Archer T3U Plus receives Wi-Fi signals on two separate bands for all your online needs. Choose the 2.4 GHz band for up to 400 Mbps of surfing, emailing, and social media, or switch to 5 GHz for up to 867 Mbps of gaming, HD streaming, and large file downloads.
Features:
- AC1300 Lightning-Fast Speed — AC1300 (867 Mbps on the 5 GHz band or 400 Mbps on the 2.4 GHz band) dual-band Wi-Fi to ensure all your devices run at full speed
- MU-MIMO Technology — Improves the throughput and efficiency of the whole network with MU-MIMO technology
- Dual-Band Wireless — The 2.4 GHz and 5 GHz bands provide flexible connectivity, giving your devices access to the latest dual-band Wi-Fi router for faster speed and extended range
- High-Gain Antennas — Advanced external high-gain antennas greatly enhance the reception and transmission signal strength of the USB adapter
- Supports the Latest Operating Systems — Fully compatible with Windows 11/10/8.1/8/7/XP and macOS
| HARDWARE FEATURES | |
| Interface | USB 3.0 |
| LED | Status |
| Dimensions | 2.28 × 0.71 × 6.83 in (57.8 × 18 × 173.4 mm) |
| Antenna | 1 External High Gain Antenna |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz |
| Signal Rate | 5 GHz: |
| 11ac: Up to 867 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11a: Up to 54 Mbps(dynamic) | |
| 2.4 GHz: | |
| 11n: Up to 400 Mbps(dynamic) | |
| 11g: Up to 54 Mbps(dynamic) | |
| 11b: Up to 11 Mbps(dynamic) | |
| Reception Sensitivity | 5 GHz: |
| 11ac VHT80: -62dBm | |
| 11ac VHT40: -64dBm | |
| 11ac VHT20: -68dBm | |
| 11n HT40: -71dBm | |
| 11n HT20: -73dBm | |
| 11a 54Mbps: -77dBm | |
| 2.4 GHz: | |
| 11n HT40: -70dBm | |
| 11n HT20: -71dBm | |
| 11g 54Mbps: -73dBm | |
| 11b 11Mbps: -87dBm | |
| Transmit Power | 5 GHz: 20dBm(FCC) / 20dBm(CE) (EIRP) |
| 2.4 GHz : 18dBm(FCC) / 18dBm(CE) (EIRP) | |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | AC1300 High Gain Wireless Dual Band USB Adapter |
| Quick Installation Guide | |
| Resource CD | |
| System Requirements | Windows 11/10/8.1/8/7 (32/64 bit) |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉ ~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
