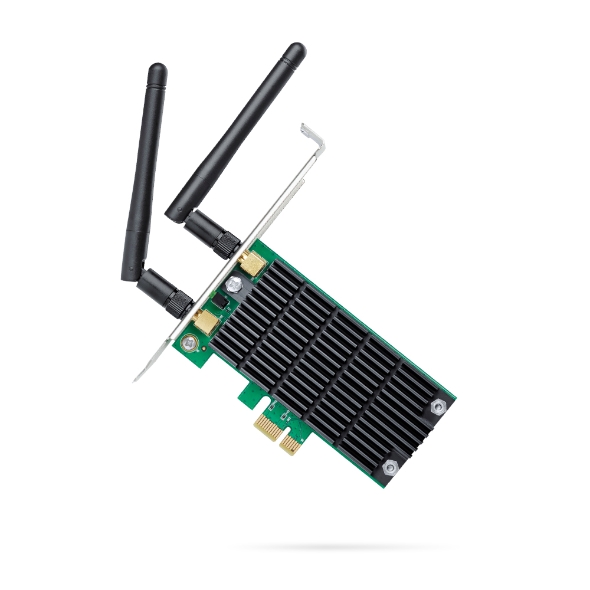

TP-Link - ARCHER T4E - AC1200 Wireless Dual Band PCI Express Adapter
Part number:
ARCHER T4E
Price:
TP-LINK's Archer T4E supports the advanced Wi-Fi standard of IEEE 802.11ac, offering 3 times transferring rates as IEEE 802.11n. You can send emails and browse the web with 2.4GHz network, while keeping the speedy 5GHz band free for gaming, HD streaming and other bandwidth intensive applications.
Features:
- Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
- High Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mpbs on 2.4 GHz band)*
- 802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
- Beamforming – Wi-Fi signals are strengthened towards certain direction where client exists
- Multiple-Size Brackets – Low profile and full heigh brackets are both provided, suitable for all PCs
- 2×2 MIMO – Users can easily access to high-speed wireless connection
- Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability
| HARDWARE FEATURES | |
| Interface | PCI Express |
| Dimensions ( W x D x H ) | 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm) |
| Antenna Type | 2 Dual Band Detachable Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ac/n/a 5 GHz |
| IEEE 802.11n/g/b 2.4 GHz | |
| Signal Rate | 5 GHz |
| 11ac: Up to 867 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11a: Up to 54 Mbps(dynamic) | |
| 2.4 GHz | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11g: Up to 54 Mbps(dynamic) | |
| 11b: Up to 11 Mbps(dynamic) | |
| Reception Sensitivity | 5 GHz : |
| 11ac HT80: -59.5 dBm | |
| 11ac HT40: -63 dBm | |
| 11ac HT20: -68 dBm | |
| 11n HT40: -70 dBm | |
| 11n HT20: -73 dBm | |
| 11a 54Mbps: -76 dBm | |
| 11a 6Mbps: -92 dBm | |
| 2.4GHz : | |
| 11n HT40: -67.5 dBm | |
| 11n HT20: -70 dBm | |
| 11g 54Mbps: -72 dBm | |
| 11b 11Mbps: -86.5 dBm | |
| Transmit Power | 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP) |
| 2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP) | |
| Wireless Modes | Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| OTHERS | |
| Certification | FCC, RoHS |
| Package Contents | AC1200 Wireless Dual Band PCI Express Adapter Archer T4E |
| Low-Profile Bracket | |
| Quick Installation Guide | |
| Resource CD | |
| System Requirements | Windows 11/10/8.1/8/7/XP (32/64bit) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
