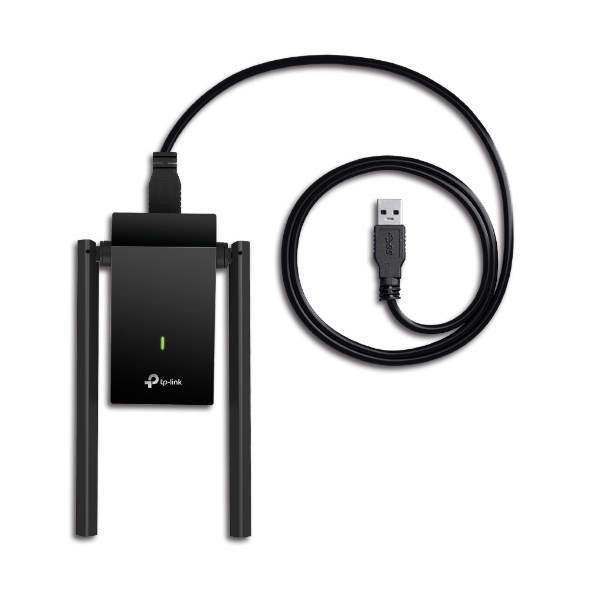

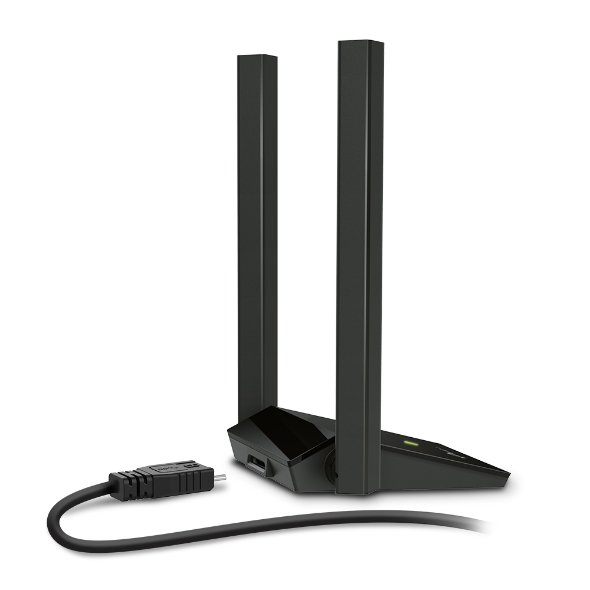

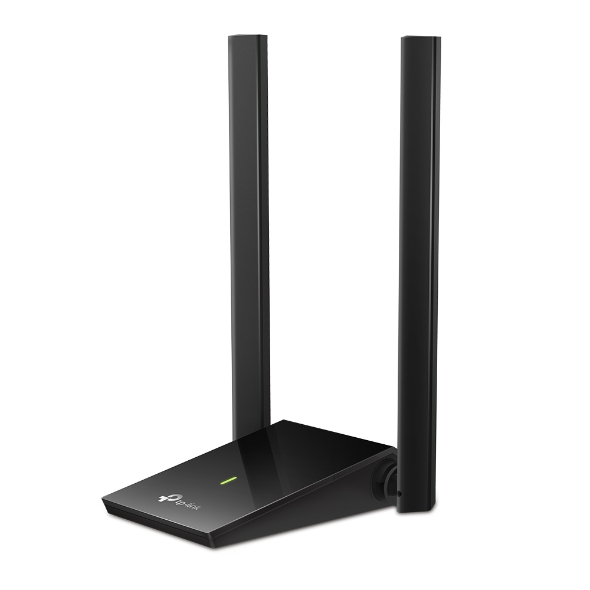

TP-Link - ARCHER T4U PLUS - AC1300 Dual Antennas High-Gain Wireless USB Adapter
Part number:
ARCHER T4U PLUS
Price:
The Archer T4U Plus grants your PC access to 802.11ac technology while receiving WiFi signals on two separate bands, boosting speeds up to 1.2 Gbps (up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz). This means better networking experience for all your online needs. Choose the 2.4 GHz band for web browsing, email, and social media, or switch to 5 GHz for gaming, HD streaming, and large file downloads.
Features:
- Ultra-Fast Wi-Fi – 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard
- Dual Band Wireless - 2.4GHz and 5GHz bands for flexible connectivity
- Dual High-Gain antennas – Improved range, signal quality and transmission performance
- MU-MIMO –Delivers highly efficient wireless connection
- Super Speed USB 3.0 Port - Up to 10x faster transfer speeds than USB 2.0
- Adjustable, Multi-Directional Antenna - Enable flexible deployment for the best reception
| HARDWARE FEATURES | |
| Interface | USB 3.0 |
| LED | Status |
| Dimensions ( W x D x H ) | 84 × 156.3 × 19.2 mm (3.3 × 6.2 × 0.76 in) |
| Antenna | 2× External 5 dBi High Gain Antennas |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11b/g/n 2.4 GHz, IEEE 802.11a/n/ac 5 GHz |
| Signal Rate | 5 GHz: |
| 11ac: Up to 867 Mbps(dynamic) | |
| 11n: Up to 300 Mbps(dynamic) | |
| 11a: Up to 54 Mbps(dynamic) | |
| 2.4 GHz: | |
| 11n: Up to 400 Mbps(dynamic) | |
| 11g: Up to 54 Mbps(dynamic) | |
| 11b: Up to 11 Mbps(dynamic) | |
| Reception Sensitivity | 5 GHz: |
| 11ac VHT80: -62dBm | |
| 11ac VHT40: -65dBm | |
| 11ac VHT20: -69dBm | |
| 11n HT40: -71dBm | |
| 11n HT20: -74dBm | |
| 11a 54Mbps: -77dBm | |
| 2.4 GHz: | |
| 11n HT40: -70dBm | |
| 11n HT20: -72dBm | |
| 11g 54Mbps: -75dBm | |
| 11b 11Mbps: -87dBm | |
| Transmit Power | 5 GHz: 20dBm(FCC) / 20dBm(CE) (EIRP) |
| 2.4 GHz : 18dBm(FCC) / 18dBm(CE) (EIRP) | |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | AC1300 Dual Antennas High-Gain Wireless USB Adapter Archer T4U Plus |
| Quick Installation Guide | |
| Resource CD | |
| 1-meter USB 3.0 Cable | |
| System Requirements | Supported operating systems include Windows 11/10/8.1/8/7, |
| macOS | |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉ |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
