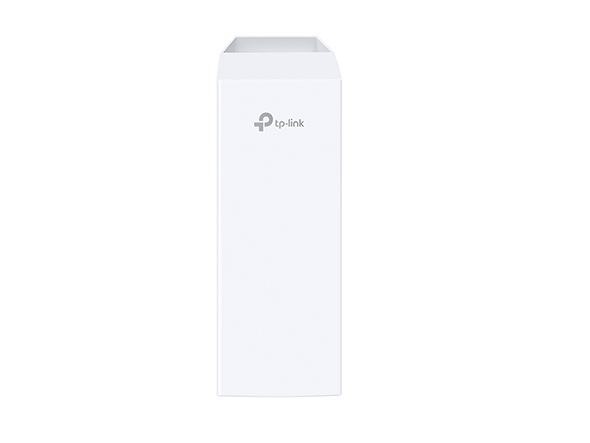

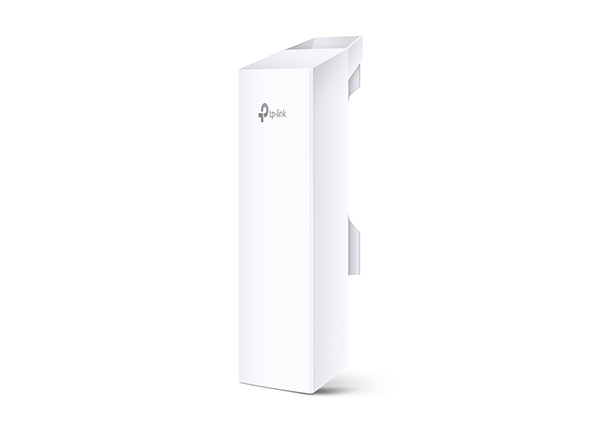

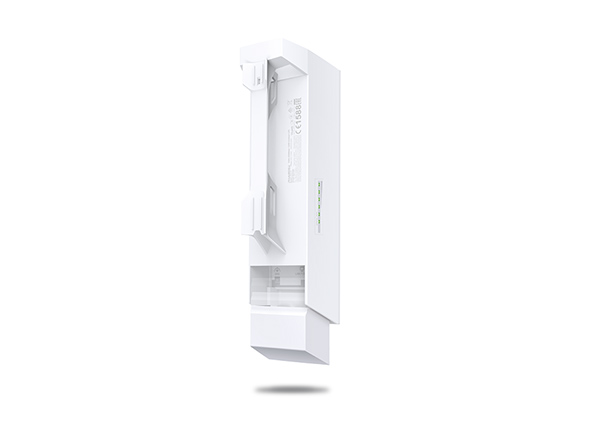

TP-Link - CPE510 - 5GHZ 300MBPS 13DBI OUTDOOR CPE ACCS
Part number:
CPE510
Price:
TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is flexible and ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Features:
- Built-in 13dBi 2x2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 26dBm/200mw
- System-level optimizations for more than 15km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
| HARDWARE FEATURES | |
| Processor | Qualcomm Atheros Enterprise 560MHz CPU, MIPS 74Kc |
| Memory | 64MB DDR2 RAM, 8MB Flash |

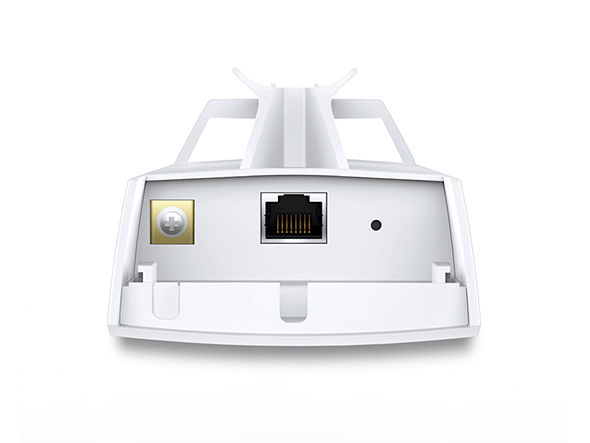

| Interface | 1 10/100Mbps Shielded Ethernet Port (Passive PoE in) |
| 1 Grounding Terminal | |
| 1 Reset Button | |
| Power Supply | Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins) |
| Voltage range: 16-27VDC | |
| Power Consumption | 10.5 Watts Max |
| Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable. | |
| Dimensions ( W x D x H ) | 8.8 x 3.1 x 2.4 in |
| Antenna Type | Built-in 13dBi 2 x 2 Dual-polarized Directional Antenna |
| Beam Width: 45° (H-Plane) / 30° (E-Plane) | |
| Protection | 15KV ESD Protection |
| 6KV Lightning Protection | |
| Enclosure | Outdoor ASA stabilized plastic material |
| IPX5 waterproof Certification | |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11a/n (with Pharos MAXtream disabled) |
| Proprietary Protocol | TDMA Mode (with Pharos MAXtream enabled) |
| Wireless Speeds | Up to 300Mbps (40MHz,Dynamic) |
| Up to 144.4Mbps (20MHz,Dynamic) | |
| Up to 72.2Mbps (10MHz,Dynamic) | |
| Up to 36.1Mbps (5MHz,Dynamic) | |
| Frequency | 5.15~5.85GHz |
| Note: Available operating frequency may vary depending on the limitations of the countries or regions in which the device is used. | |
| Transmission Power | 23dBm/200mw (Adjustable power by 1dBm) |
| Note: Maximum transmission power may vary across different channels depending on the limitations of the countries or regions in which the device is used. | |
| SOFTWARE FEATURES | |
| Wireless Configurations | Pharos MAXtream TDMA Technology |
| 802.11a/n Modes | |
| Selectable Channel Width: 5/10/20/40MHz | |
| Automatic Channel Selection | |
| Transmission Power Control | |
| Dynamic Frequency Selection (DFS) | |
| WDS Enable/Disable | |
| Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption | |
| SSID Broadcast Enable/Disable | |
| Multi-SSID with VLAN Tagging (AP mode only) | |
| Distance/ACK Timeout Setting | |
| Wireless MAC Address Filter | |
| Wireless Advanced: | |
| > Beacon Interval/RTS Threshold/Fragmentation | |
| >Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia | |
| Management | Discovery and Remote Management via Pharos Control application |
| HTTP/HTTPS Web-based management | |
| System Log | |
| SNMP Agent(v2c) | |
| Ping Watch Dog | |
| Dynamic DDNS | |
| SSH Server | |
| System Tools | Wireless Signal Quality Indicators: |
| Signal Strength/Noise/Transmit CCQ/CPU/Memory | |
| Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP | |
| Spectrum Analyzer | |
| Speed Test | |
| Ping | |
| Traceroute | |
| System-level Optimizations | Optimized IGMP Snooping/Proxy for multicast applications |
| Hardware watch dog | |
| POE ADAPTER FEATURES | |
| Dimensions(W x D x H) | 4.3 x 2.2 x 1.3 in |
| Interfaces | 1 AC Jack with Earth Ground |
| 1 10/100Mbps Shielded Ethernet Port (Power + Data) | |
| 1 10/100Mbps Shielded Ethernet Port (Data) | |
| Button | Remote Reset Button |
| Power Status LEDs | Green |
| Input | 100-240VAC, 50/60Hz |
| Output | 24VDC, 1A Max |
| +4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet) | |
| Efficiency | >80% |
| Certifications | CE/FCC |
| OTHERS | |
| Certification | FCC, RoHS, IPX5 |
| Package Contents | Outdoor Wireless CPE |
| 24V 1A Passive PoE Adapter | |
| Pole Mounting Straps | |
| AC Power Cord | |
| Installation Guide | |
| System Requirements | Google Chrome, Safari, and Firefox browsers for web GUI management |
| Environment | Operating Temperature: -30°C~70°C (-22℉~158℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~95% non-condensing | |
