TP-Link - EX220-G2 - AX1500 WI-FI 6 ROUTER WRLS
Part number:
EX220-G2
Price:
AX1500 Dual Band Wi-Fi 6 Router
Features:
- Faster. Broader. Higher Capacity - The EX220-G2u is TP-Link wireless router with Wi-Fi 6 – based on the New Era802.11ax Wi-Fi technology. Take your Wi-Fi to the next level while being backwards compatible with 802.11a/b/g/n/ac Wi-Fi standards
- Faster Wireless Connection - Streams Wi-Fi offers connection at over 1 Gbps speed for newer mobile devices
- Powerful and Stable - Every click you make, responds quicker. A 1.5 GHz triple-core CPU handles data throughput up to multi-gigs and minimizes the latency
- Gigabit Internet Access - Take full advantage of your broadband with speed up to 1 Gbps with a Gigabit WAN port
- Band Steering - EX220-G2u automatically assigns your devices to the best available band according to the Wi-Fi environment, balancing the network load to give each device its optimum connection
| HARDWARE FEATURES | |
|---|---|

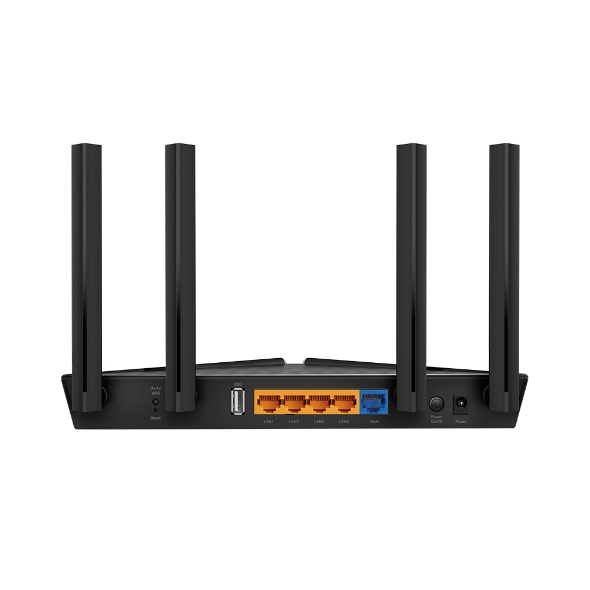

| Interface | 4 10/100/1000Mbps RJ45 LAN Ports, 1 10/100/1000Mbps RJ45 WAN Port, 1 USB 2.0 Port |
| Button | Power On/Off Button, Reset Button, Wi-Fi/WPS Button |
| External Power Supply | 12V/1.5A |
| Dimensions ( W x D x H ) | 10.2 × 5.3 × 1.5 in (260.2 × 135.0 × 38.6 mm) |
| Antenna Type | Four External antennas |
| Antenna Gain | 2 x 4dBi for 2.4GHz and 2 x 5dBi for 5GHz |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ax/ac/n/a 5GHz, IEEE 802.11n/g/b 2.4GHz |
| Frequency | 2.4GHz and 5GHz |
| Signal Rate | 1201Mbps at 5GHz, 300Mbps at 2.4GHz |
| Wireless Functions | Enable/Disable Wireless Radio, WMM, Wireless Statistics |
| Wireless Security | WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions |
| Transmission Power | CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz) |
| Wireless Schedule | Support 2.4GHz and 5GHz Wireless Schedule |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | Hardware QoS, Flow Classification |
| Operating Modes | Router, Access Point |
| WAN Type | Dynamic IP/Static IP/PPPoE/PPTP/L2TP(Multi-EWAN) |
| Management | Access Control, Local Management, Remote Management, TR-069(TR-098/TR-181), TR-111, TR-143 |
| DHCP | Server, DHCP Client List, Address Reservation |
| Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
| Dynamic DNS | DynDns, NO-IP |
| VPN Pass-Through | IPSec, PPTP, L2TP |
| Access Control | Parental Control, Local Management, Host List, White List, Black List |
| Firewall Security | DoS, SPI Firewall, IP and MAC Address Binding |
| Protocols | IPv4, IPv6 |
| Advanced Features | Muti-SSID, TX Beamforming, MU-MIMO, DL/UL OFDMA, Airtime Fairness |
| VPN Server | PPTP, OpenVPN, IPSec |
| OTHERS | |
|---|---|
| Package Contents | AX1500 Dual Band Wi-Fi 6 Router EX220-G2u Power Adapter RJ45 Ethernet Cable Quick Installation Guide |
| Requirements | Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access) |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉) Storage Temperature: -40℃~70℃ (-40℉ ~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
