TP-Link - HS220P3 - 3PK WI-FI SMART LIGHT SWITCH ACCS HS220
Part number:
HS220P3
Price:

3PK WI-FI SMART LIGHT SWITCH ACCS HS220



Features:



  • Customize Your Lighting: Control your room's brightness and set the ambiance for any mood or activity using the Kasa Smart app.
  • Grouping: Use Grouping to combine your light switch with other Kasa Smart devices for seamless control with one single tap on your smartphone.
  • Gentle Off: Fade bedroom lights as your child falls asleep or give yourself time to exit a room without bumping into things.
  • Control From Anywhere: Check in on your lights, schedule them to dim when you want even turn them on before you get home conveniently from your smartphone.
  • Easy Install: No need to understand complex wiring, just follow the step-by-step wiring process in the Kasa Smart app for a guided install of your dimmer light switch.
  • Voice Control: Use simple voice commands and dim your lights using the Kasa Smart dimmer light switch with any Alexa or Google Assistant.
  • No Hub Required: Kasa Smart's dimmer light switch works with a secured 2.4GHz wireless network without the need for a separate hub.

Technical Specifications



Network
Standards And Protocols Secured Wi-Fi Network
Protocol IEEE 802.11b/g/n
Wireless Type: 2.4 GHz, 1T1R
System Requirements: Android 5.0 or higher, iOS 10 or higher
General
Certification RoHS, FCC, IC, UL
Environment

Indoor use only

Dimensions( H X W X D )

with panel 5.06*3.33*1.74 in. (128.65*84.65*44.21mm)

without panel 4.13*1.71*1.74 in. (105*43.5*44.21mm)

Material PC

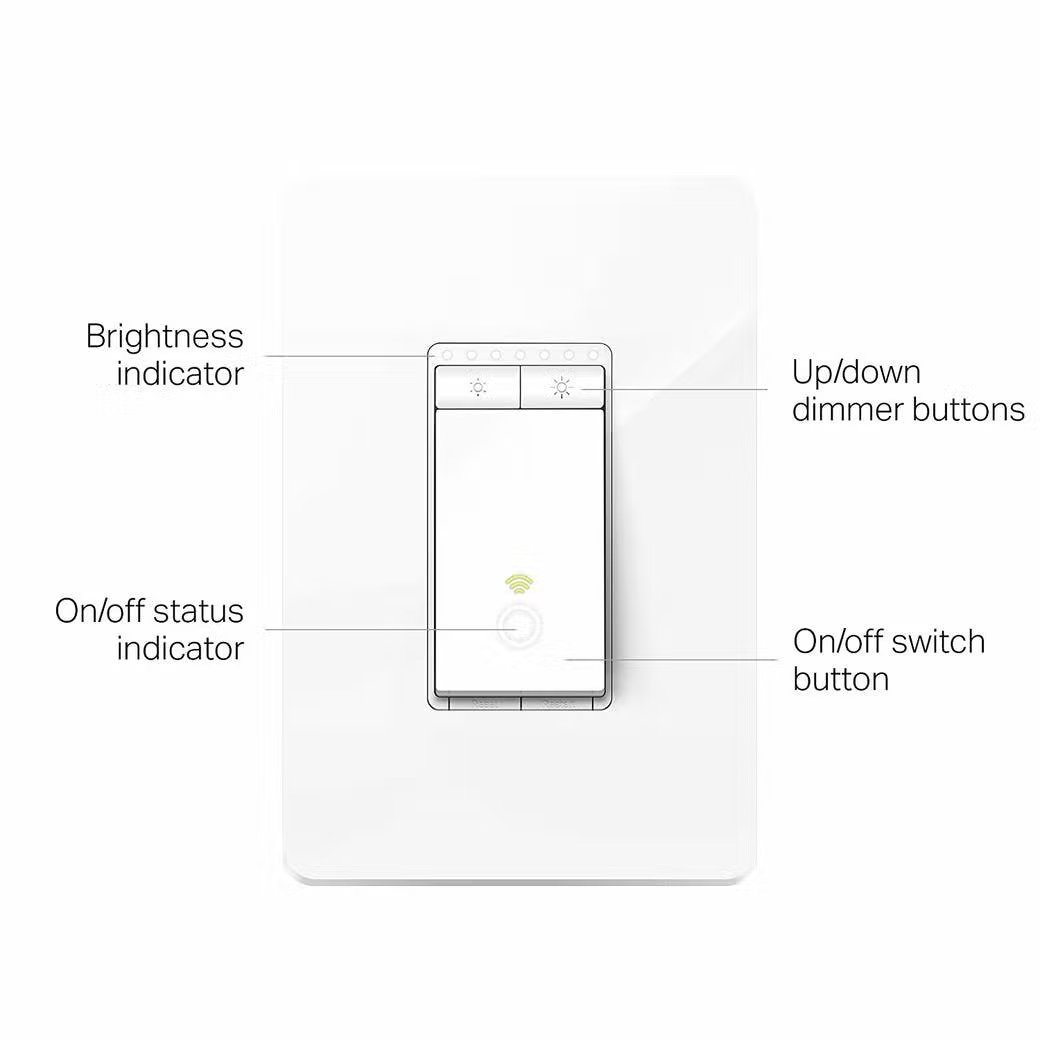

Buttons

On/Off Switch Button

Brightness Increase Button

Brightness Decrease Button

Restart Button

Reset Button

Weight

0.33 lb (net weight)

0.15 kg (net weight)

Packaging Dimensions 4.65 x 2.56 x 6.73in (118.11 x 65.02 x 170.94mm)
Working Status
Input Voltage

100 - 120VAC 60Hz

Neutral wire required

Maximum Load

150W LED/300W Incandescent/150W CFL

Dimming Type : Leading Edge Dimming / Triac Phase Cut It’s also suggested to contact the bulb’s Support to check the supported dimming type of the bulb.
Name
Description
Size
Downloads
File
Datasheet
0.8mb
File
Quick Installation Guide
0.2mb
