TP-Link - MC100CM - UNMC100CM 2PORT 10/100 RJ45/SC PERP TO 2KM STDALN SWITCHING ADAPT
Part number:
MC100CM
Price:

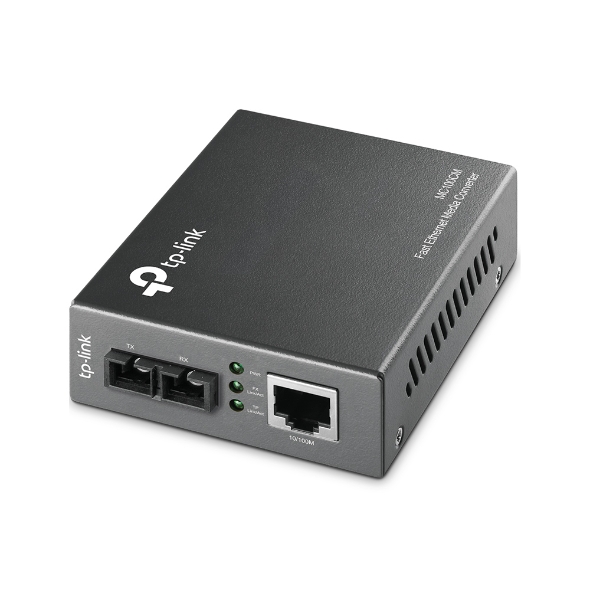

The MC100CM is a media converter designed to connect 100BASE-FX fiber to 100Base-TX copper and vice versa. Complies with IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC100CM is designed using multi-mode fiber cable with an SC-Type terminal for physical connections. The MC100CM supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode for flexibility. The MC100CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1.2 miles (2km).
Features:
- Complies with 802.3u 10/100Base-TX, 100Base-FX standards
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Ranges up to 2km (1.2 miles) transmission distance with multi-mode fiber
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Full Duplex Flow Control (IEEE 802.3x) Half Duplex Flow Control (Backpressure) Extends fiber distance up to 2km (1.2 miles) |
| Ports | 1x 100M dual SC/UPC port 1x 10/100M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 10BASE-T | UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Network Media 100BASE-FX | Multi-mode Fiber |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
| Power Supply | External power supply |
| Max Power Consumption | 2.4W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | • Media Converter MC100CM • Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
