TP-Link - MC200CM - MC200CM 2PORT 10/100/1000 RJ45/PERP SC UP TO 550M MODULE SWITCHING AC
Part number:
MC200CM
Price:

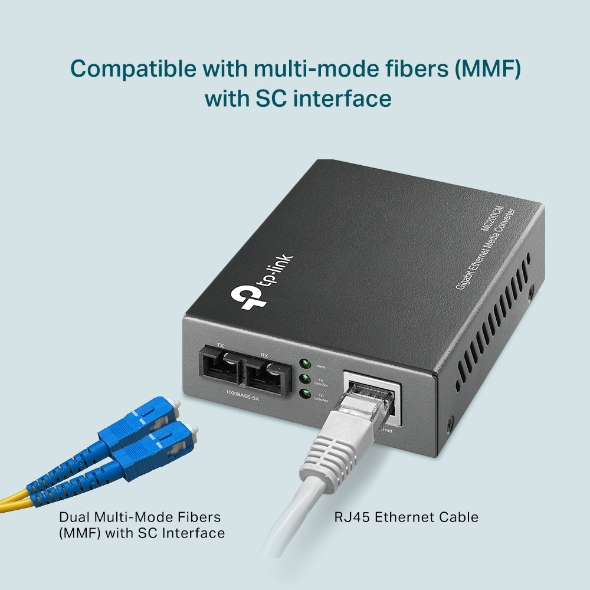

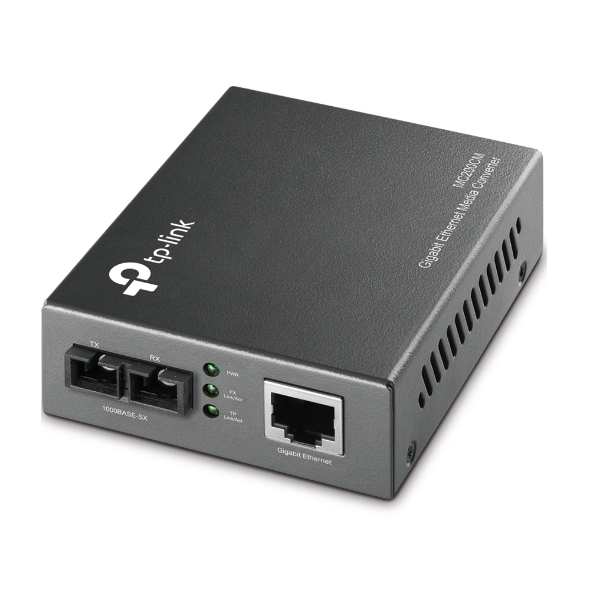

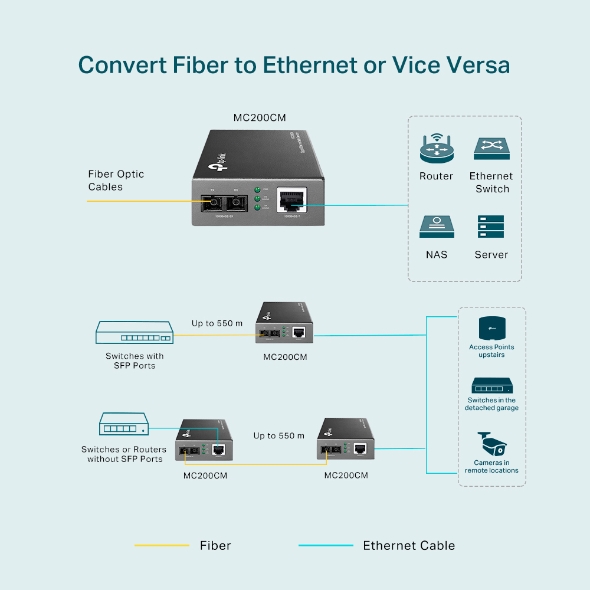

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data
Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 1,800 feet (550 meters).
Features:
- 1 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 1,800 feet (550m)
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function | Auto-negotiation of Half-Duplex / Full-Duplex transfer mode Extends fiber distance up to 1,800 feet (550m) using 50/125um fiber Extends fiber distance up to 720 feet (220m) using 62.5/125um fiber |

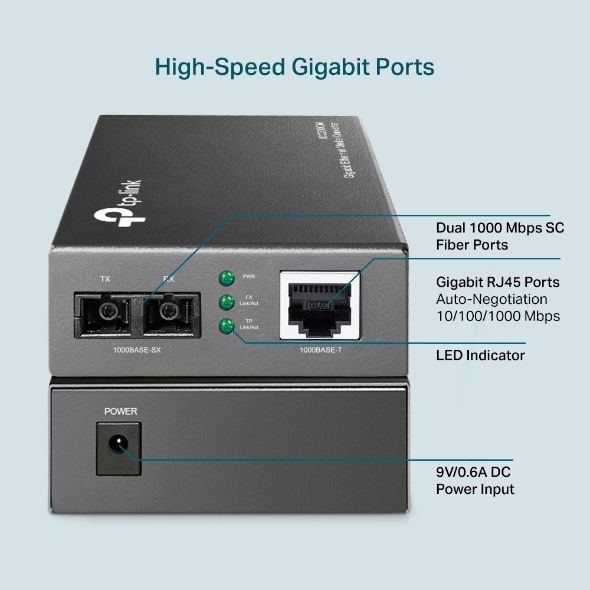

| Ports | 1 x 1000M dual SC/UPC port 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 850nm |
| Network Media 1000BASE-SX | Multi-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, Link/Act |

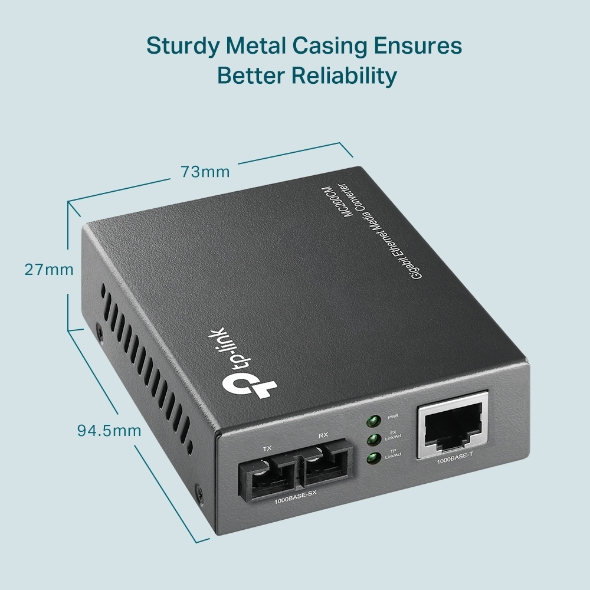

| Dimensions (W*D*H) | 3.7 × 2.9 × 1.1 in. (95 × 73 × 27 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.66W |
| Safety & Emission | FCC, CE, RoHS |
| Package Contents | • Media Converter MC200CM • Power Adapter • Installation Guide |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Name
Description
Size
Downloads
File
Datasheet
1.4mb
