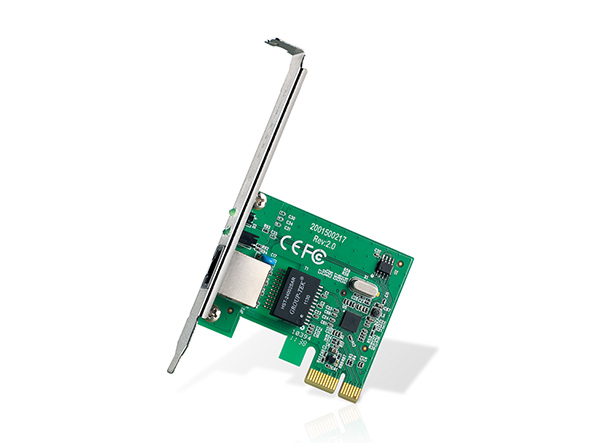

Gigabit PCI Express Network Adapter
Features:
- 10/100/1000Mbps PCIe Adapter*
- 32-bit PCIe interface, saving the finite chassis space
- Wake-on-LAN, convenient to manage over LAN
What This Product Does
TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.
The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.
|
HARDWARE FEATURES |
|
|
Standards and Protocols |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP |
|
Interface |
32-bit PCI Express 1 10/100/1000Mbps RJ45 port |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000Base-T: UTP category 5, 5e cable (maximum 100m) |
|
LED |
Status |
|
Wireless Standards |
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x |
|
Data Rates |
10/100/1000Mbps for Half-Duplex mode 20/200/2000Mbps for Full-Duplex mode |
|
LED Indicator |
1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act |
|
Dimensions |
3.1 × 4.8 × 0.8 in (78.5 × 120.8 × 21.5mm) |
|
Flow Control |
IEEE 802.3x Flow Control (Full-Duplex) |
OTHERS
|
Certification |
FCC, RoHS |
|
Package Contents |
Gigabit PCI Express Network Adapter TG-3468 Resource CD Quick Installation Guide |
|
System Requirements |
Windows 11/10/8.1/8/7/XP/Vista (32/64bits) |
|
Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
