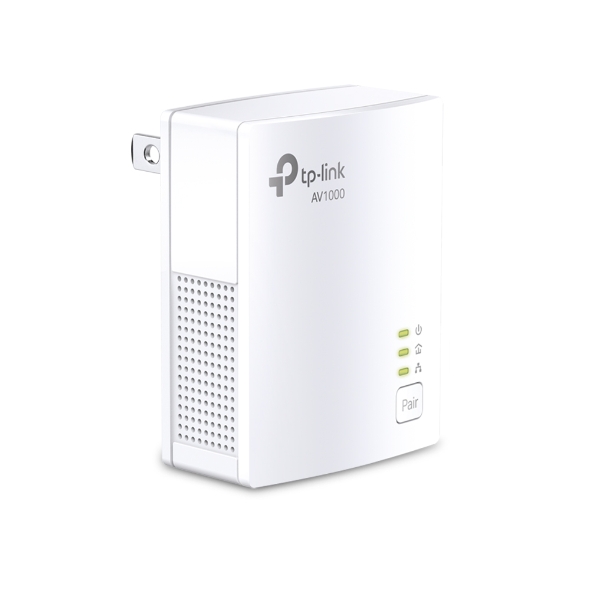

TP-Link - TL-PA7017 - AV1000 Gigabit Powerline Adapter
Part number:
TL-PA7017
Price:

1000Mbps! Ideal for Slick Streaming and Smooth Downloads

Comes with advanced HomePlug AV2 technology, TL-PA7017 provides users with high-speed data transfer rates of up to 1000Mbps, which is ideal for bandwidth intensive applications such as multiple HD/3D/4K video streaming, online gaming and large file transfers.



Gigabit Port for Maximum Connectivity

With one Gigabit Ethernet port, TL-PA7017 allows users to connect a bandwidth intensive device to the Internet at high speeds and ensures the smooth transmission of Ultra HD video streaming. This makes the TL-PA7017 the perfect home entertainment companion.



Power Save by Up to 85%

TL-PA7017 is a new-generation of Powerline adapter. Its sophisticated Power-Saving mode automatically switches from its regular “Working” mode to “Power-Saving” mode reducing energy consumption by up to 85%.



Features:

  • HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
  • Gigabit port - provides secure wired networks for desktops, smart TVs or games consoles

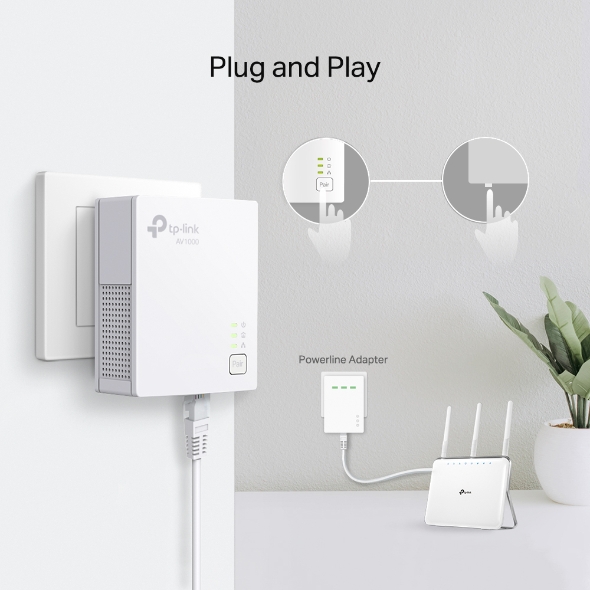

  • Plug and play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired connections right away
  • Patented Power - Saving Mode - automatically reduces power consumption by up to 85%

HARDWARE FEATURES

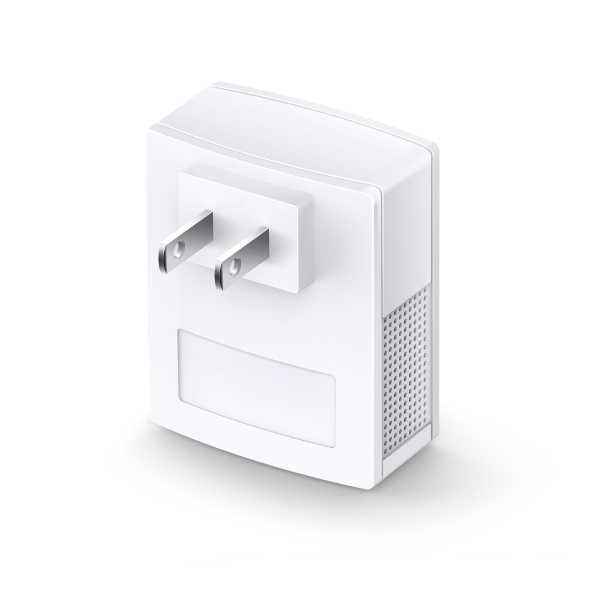

Plug TypeUS
Standards and Protocols

HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3,

IEEE 802.3u, IEEE 802.3ab

InterfaceGigabit Ethernet Port
ButtonPair/Reset button
Power Consumption

Maximum: 2.7W (220V/50Hz)

Typical: 2.3W (220V/50Hz)

Standby: 0.5W (220V/50Hz)

LED IndicatorPower, Powerline, Ethernet
Dimensions ( W x D x H )2.0 × 1.1 × 2.6 in (52 × 28.5 × 65 mm)
RangeUp to 300 meters/1000 feet over existing electrical wiring

SOFTWARE FEATURES

Modulation TechnologyOFDM (PLC)
EncryptionPowerline Security: 128-bit AES Encryption

OTHERS

CertificationFCC, RoHS
Package Contents

- 1 × AV1000 Gigabit Powerline Adapter TL-PA7017

- 1 × Ethernet Cable

- 1 × Quick Installation Guide

System RequirementsWindows 2000/XP/2003/Vista/7/8/8.1/10, Mac, Linux
Environment

Operating Temperature: 0°C~40°C (32°F ~104°F)

Storage Temperature: -40°C~70°C (-40°F ~158°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
