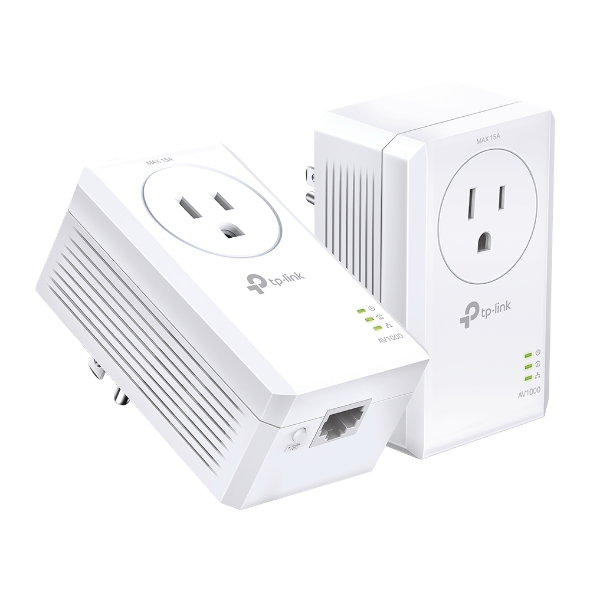

TP-Link - TL-PA7017P KIT - AV1000 Gigabit Passthrough Powerline Starter Kit
Part number:
TL-PA7017P KIT
Price:

1000 Mbps! Perfect for Bandwidth-Hungry Activities

Coming with advanced HomePlug AV2 technology, TL-PA7017P KIT provides users with high-speed data transfer rates of up to 1000 Mbps—ideal for bandwidth-intensive applications such as multiple HD/3D/4K video streaming, online gaming, and large file transfers.



Gigabit Port for Ultra-Fast Data Transfer

With one Gigabit Ethernet port, TL-PA7017P KIT allows users to connect a bandwidth-intensive device to the internet at high speeds, ensuring smooth streaming for Ultra HD videos. This makes the TL-PA7017P KIT the perfect home entertainment companion.



Extra Power Outlet for Additional Devices

Finding it hard to plug in your devices? The TL-PA7017P KIT has an integrated AC pass-through power socket. Your powerline adapter can now be used like a traditional electrical outlet. Plug your smart TV or game consoles into the adapter. No socket left to waste.



Up to 85% Power Saved

The future’s looking green for powerline adapters. TL-PA7017P KIT’s practical design and sophisticated Power-Saving Mode, which automatically switches from its regular "Working" mode to "Power-Saving" mode, reduces its energy consumption by up to 85%*.



Features:

  • HomePlug AV2 Standard - high-speed data transfer rates of up to 1000 Mbps, supporting all your online needs
  • Gigabit Port - provides secure wired networks for desktops, smart TVs or games consoles

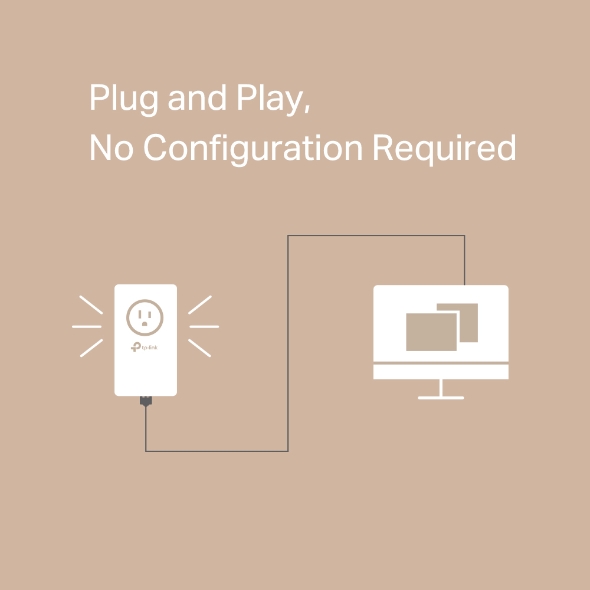

  • Plug and Play - allows setup of your powerline network in minutes, so you can enjoy fast, seamless wired connections right away
  • Integrated Power Socket - ensures no power outlet goes to waste
  • Patented Power-Saving Mode - automatically reduces power consumption by up to 85%

HARDWARE FEATURES

Plug TypeUS
Standards and Protocols

HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3,

IEEE 802.3u, IEEE 802.3ab

InterfaceGigabit Ethernet Port, Power Socket
ButtonPair Button
Power Consumption

Maximum: 2.54W

Typical: 2.05W

Standby: 0.83W

LED IndicatorPower, Powerline, Ethernet
Dimensions ( W x D x H )2.3 × 1.7 × 3.7 in (58 × 42 × 95 mm)
Range300 meters/1,000 feet over electrical circuit
CompatibilityCompatible with any powerline adapters /extenders and routers

SOFTWARE FEATURES

Modulation TechnologyOFDM (PLC)
EncryptionPowerline Security: 128-bit AES

OTHERS

CertificationFCC, RoHS, UL
Package Contents

AV1000 Gigabit Passthrough Powerline Adapter

2 × TL-PA7017P

2 × Ethernet Cable

Quick Installation Guide

System RequirementsWindows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux
Environment

Operating Temperature: 0°C~40°C (32°F ~104°F)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
