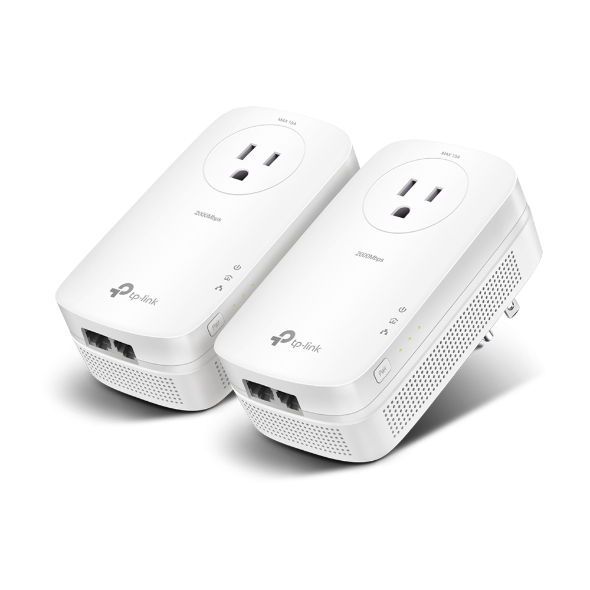

TP-Link - TL-PA9020P KIT - AV2000 2-Port Gigabit Passthrough Powerline Starter Kit
Part number:
TL-PA9020P KIT
Price:

An Exclusive Fast Lane for Your Favorite Devices*

The TL-PA9020P creates fast, high performance wired connections that support all of your favorite devices, like 4K HDTV. Now you can plug in to enjoy an exclusive fast lane out of a crowded network without slowing down.



Wiring up with Gigabit Speeds

Connect to Gigabit speeds for your smart TVs, game consoles, computers and network attached storage devices. Just use an Ethernet cable to attach your devices to the Powerline adapter to get started!



No Power Outlet is Going to Waste

The integrated power socket means that you can still get power from the outlet for your other devices. Simply plug your device into the integrated socket the same way you would with a normal wall outlet. The built-in noise filter also helps to eliminate electrical signal noise that might otherwise affect powerline transmission performance.



Features:

  • HomePlug AV2 standard compliant*
  • 2X2 MIMO with Beamforming establishes multiple simultaneous connections for you to enjoy higher powerline speeds and greater stability
  • 2 gigabit ports create secure wired networks for desktops, smart TVs or games consoles
  • Integrated power socket ensures no power outlet goes to waste
  • Plug and play, no configuration required
  • Patented Power-Saving Mode automatically reduces power consumption by up to 85%**

HARDWARE FEATURES

Plug TypeUS
Standards and Protocols

HomePlug AV2, HomePlug AV, IEEE 1901,

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab

Interface2 * Gigabit Ethernet Port, Power Socket
ButtonPair
Power Consumption

Maximum: 5.8 W (100-240V, 50/60Hz)

Standby: 0.5 W (100-240V, 50/60Hz)

LED IndicatorPower, Powerline, Ethernet
Dimensions ( W x D x H )5.2×2.8×1.7 in. (131×72×42 mm)
RangeUp to 300 meters/1000 feet over existing electrical wiring
CompatibilityCompatible with all AV2000, AV1200, AV1000, AV600, AV500 & AV200 powerline adapters
Transmission SpeedsPowerline (Physical Layer Data Rate): up to 2000 Mbps Ethernet: 10/100/1000 Mbps

SOFTWARE FEATURES

Quality of Service

ToS

Supports up to 4-level type QoS

Support up to 8-level VLAN priority

Security128-bit AES Encryption
Modulation TechnologyOFDM

OTHERS

CertificationRoHS, FCC, UL
Package Contents

 AV2000 2-port Gigabit Passthrough Powerline Adapter, TL-PA9020P * 2

 2-meter RJ-45 Ethernet Cable * 2

 Quick Installation Guide

System RequirementsWindows 2000/XP/2003/Vista, Windows 7/8/8.1/10, Mac, Linux
Environment

 Operating Temperature: 0°C~40°C (32°F~104°F)

 Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

 Operating Humidity: 10%~90% non-condensing

 Storage Humidity: 5%~90% non-condensing
