Intelligent Power Management
When total power consumption excels 56W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

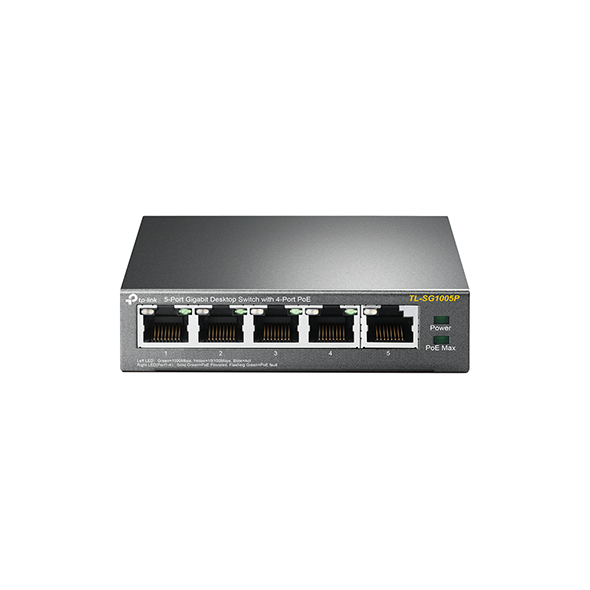

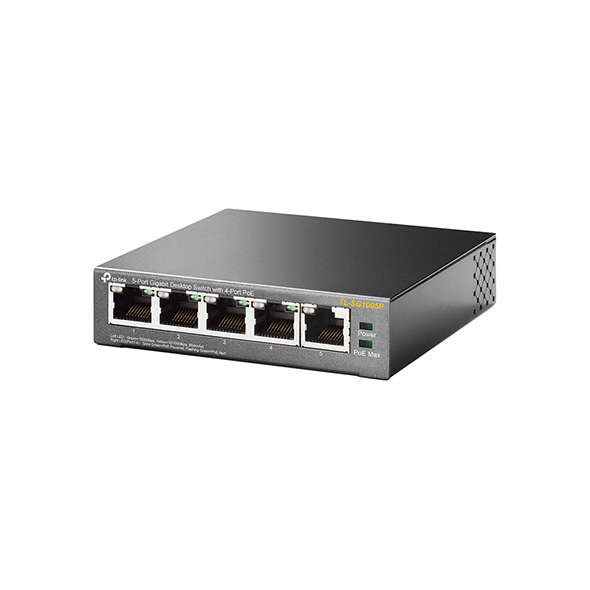

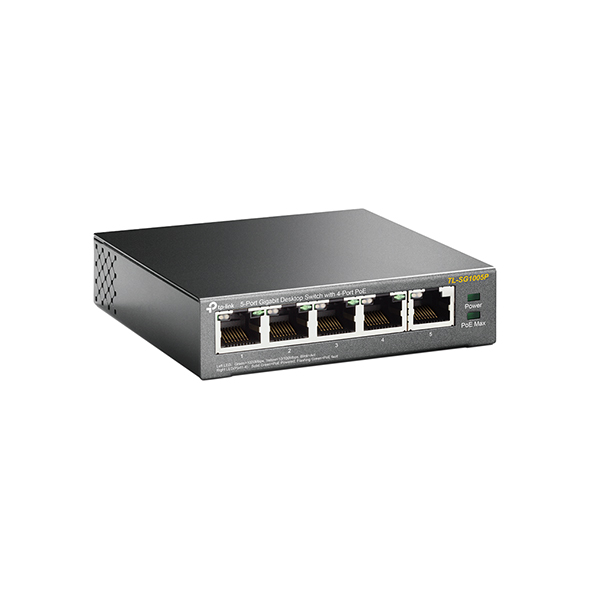

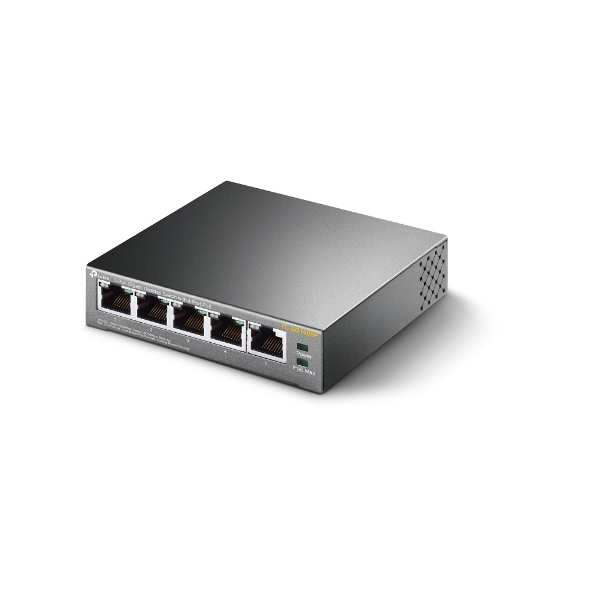

Sturdy Metal Casing
Sturdy, compact metal casing and shielded RJ45 ports, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Features:
- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3 at/af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 15.4W for each PoE port
- Supports PoE Power up to 56W for all PoE ports
- Requires no configuration and installation
|
HARDWARE FEATURES |
|
|
Interface |
5× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
|
Fan Quantity |
Fanless |
|
External Power Supply |
External Power Adapter (Output: 53.5 VDC / 1.31 A) |
|
Packet Forwarding Rate |
7.44 Mpps |
|
PoE Ports (RJ45) |
Standard: 802.3 at/af compliant PoE Ports: Port1- Port4 Power Supply: 56W |
|
Mac Address Table |
2K |
|
Jumbo Frame |
16 KB |
|
Switching Capacity |
10 Gbps |
|
Dimensions ( W x D x H ) |
3.9×3.9×1.0 in (99.8×98×25 mm) |
|
Max Power Consumption |
4.29 W (220/50 Hz. no PD connected) 74.24 W (220/50 Hz. with 65 W PD connected) |
|
Max Heat Dissipation |
14.63 BTU/h (no PD connected) 253.16 BTU/h (with 65 W PD connected) |
SOFTWARE FEATURES
|
Advanced Features |
Compatible With IEEE 802.3 at/af Compliant PDs Priority Function Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS IGMP Snooping |
|
Transfer Method |
Store-And-Forward |
OTHERS
|
Certification |
FCC, CE, RoHS |
|
Package Contents |
TL-SF1009P, Power Adapter, Installation Guide |
|
Environment |
Operating Temperature: 0–40 ℃ (32–104 ℉); Storage Temperature: -40–70 ℃ (-40–158 ℉) Operating Humidity: 10–90% RH non-condensing Storage Humidity: 5–90% RH non-condensing |
